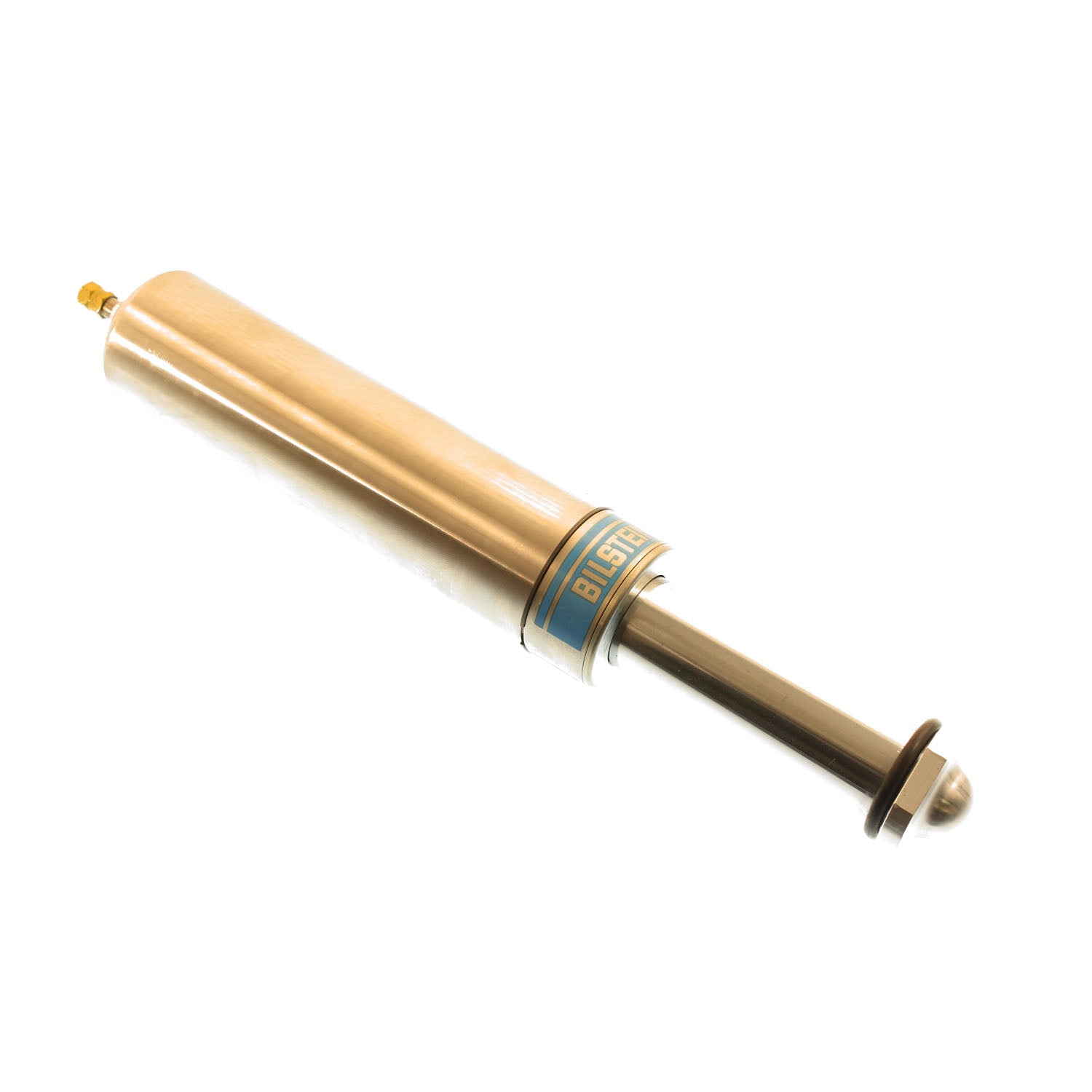

Bilstein M 9100 (Bump Stop) Monotube Suspension Bump Stop - 9.43 in. Collapsed F4-BOA-0000586

Bilstein

|

SKU: F4-BOA-0000586

Bilstein M 9100 (Bump Stop) Monotube Suspension Bump Stop - 9.43 in. Collapsed

$187.00
Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.

Standard Features

  • Filled with technology perfected over 3 decades of off-road dominance
  • Monotube gas pressure design maximizes heat dissipation
  • Available for lifted truck, custom truck, rock crawling and off-road racing applications
Specifications
Part Number F4-BOA-0000586
Part Name Bump Stop
UPC 790832512924
Body Design 46mm ID Smooth Body (Non-Coilover)
Boot Included No
Collapsed Length 239.5 mm
Collapsed Length 9.43 in.
Compression Custom
Extended Length 13.21 in.
Extended Length 335.5 mm
Finish Electroless Nickel
Internal Design Monotube
Lower Mount Type Special
Rebound Custom
Reservoir No
Segment Motorsports
Series M 9100 (Bump Stop)
Spring Seat Included No
Upper Mount Type Special
Quantity Sold Individually
