Product Details

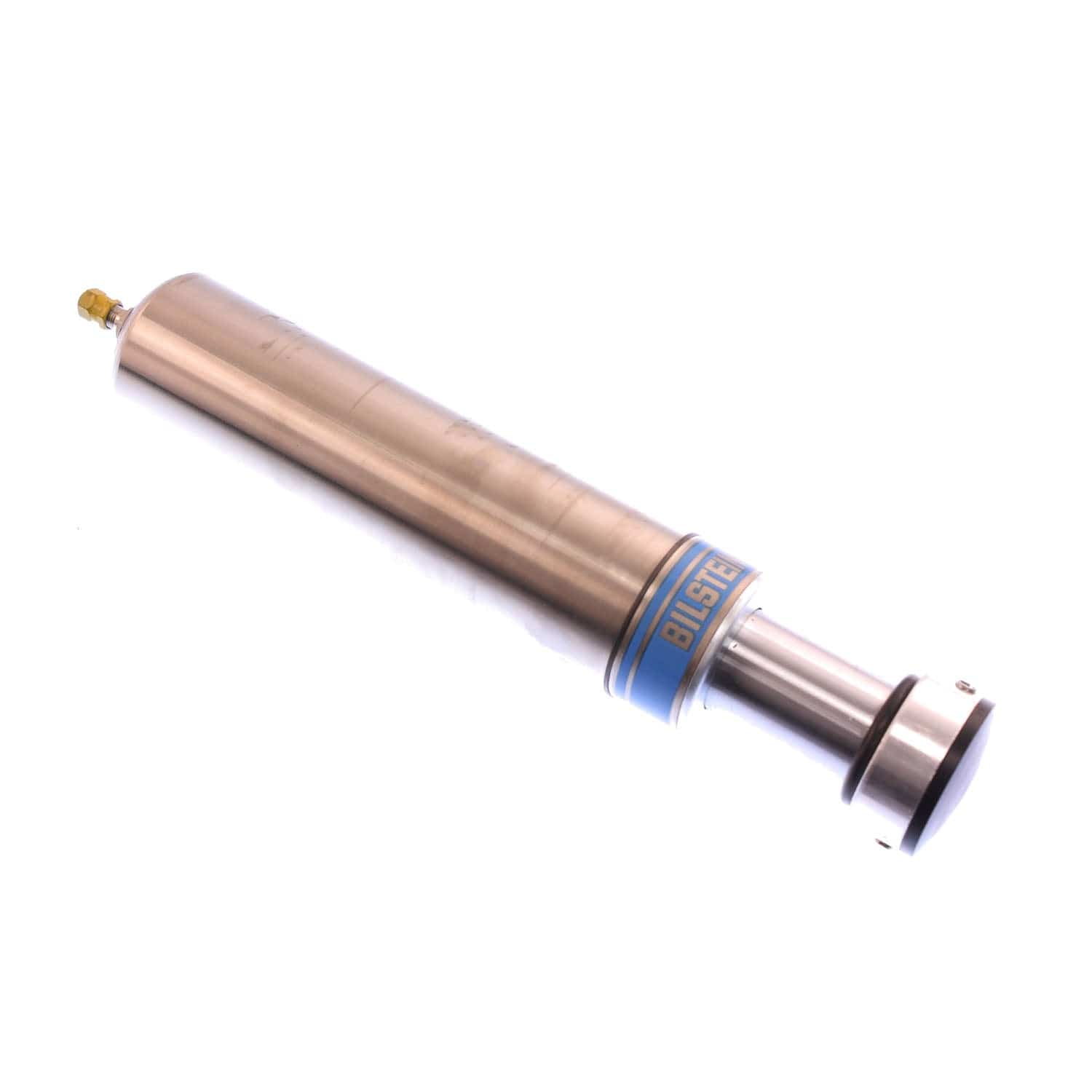

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
Standard Features
- Filled with technology perfected over 3 decades of off-road dominance
- Monotube gas pressure design maximizes heat dissipation
- Available for lifted truck, custom truck, rock crawling and off-road racing applications
Specifications
| Part Number | F4-BE5-G722-M0 |
| Part Name | Bump Stop |
| UPC | 651860638478 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 10 in. |
| Collapsed Length | 244.1 mm |
| Collapsed Length | 9.61 in. |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 11 in. |
| Extended Length | 11.47 in. |
| Extended Length | 291.3 mm |
| Finish | Nickel Plated |
| Internal Design | Monotube |
| Lower Mount Type | Special |
| Mount Type | Special |
| Rebound @ 0.52m/s | Custom |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 9100 (Bump Stop) |
| Spring Seat Included | No |
| Upper Mount Type | Special |
| Quantity | Sold Individually |
