Product Details

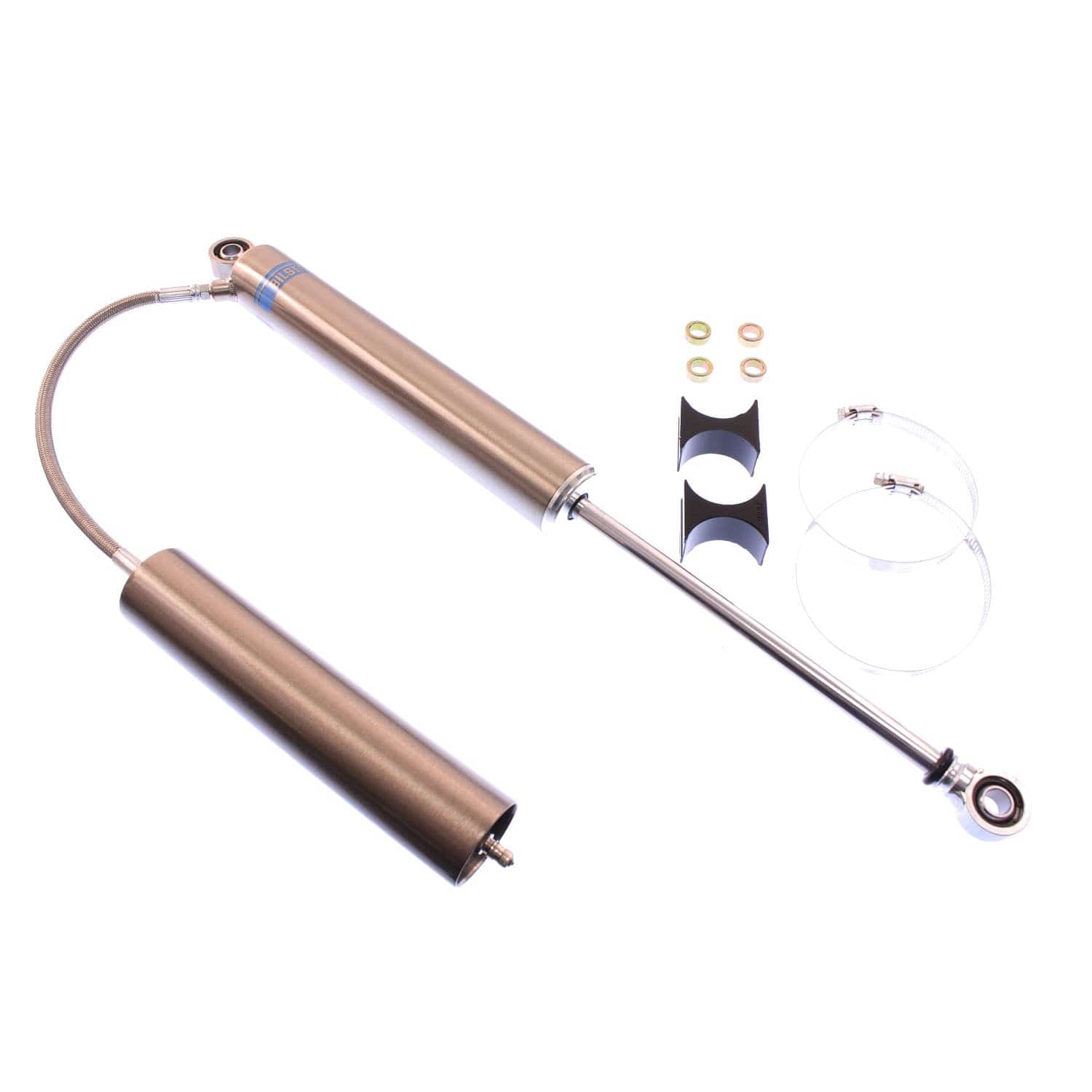

The Bilstein M 7100 shock absorber is sold for custom and motorsport builds, here at 19.45 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.
Discontinued - Final Sale
Bilstein has discontinued this part. We are selling the remaining stock and it will not be restocked once it is gone. Because of that, all sales on this item are final: it cannot be returned or exchanged.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Specifications
| Part Number | AK7114SB |
| Part Name | Shock Absorber |
| UPC | 651860930893 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 19 in. |
| Collapsed Length | 19.45 in. (494.0 mm) |
| Compression @ 0.52m/s | 700 |
| Extended Length (Rounded) | 34 in. |
| Extended Length | 33.84 in. (859.5 mm) |
| Finish | Nickel Plated with Clear Powder Coat |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | 2550 |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 7100 |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
