Product Details

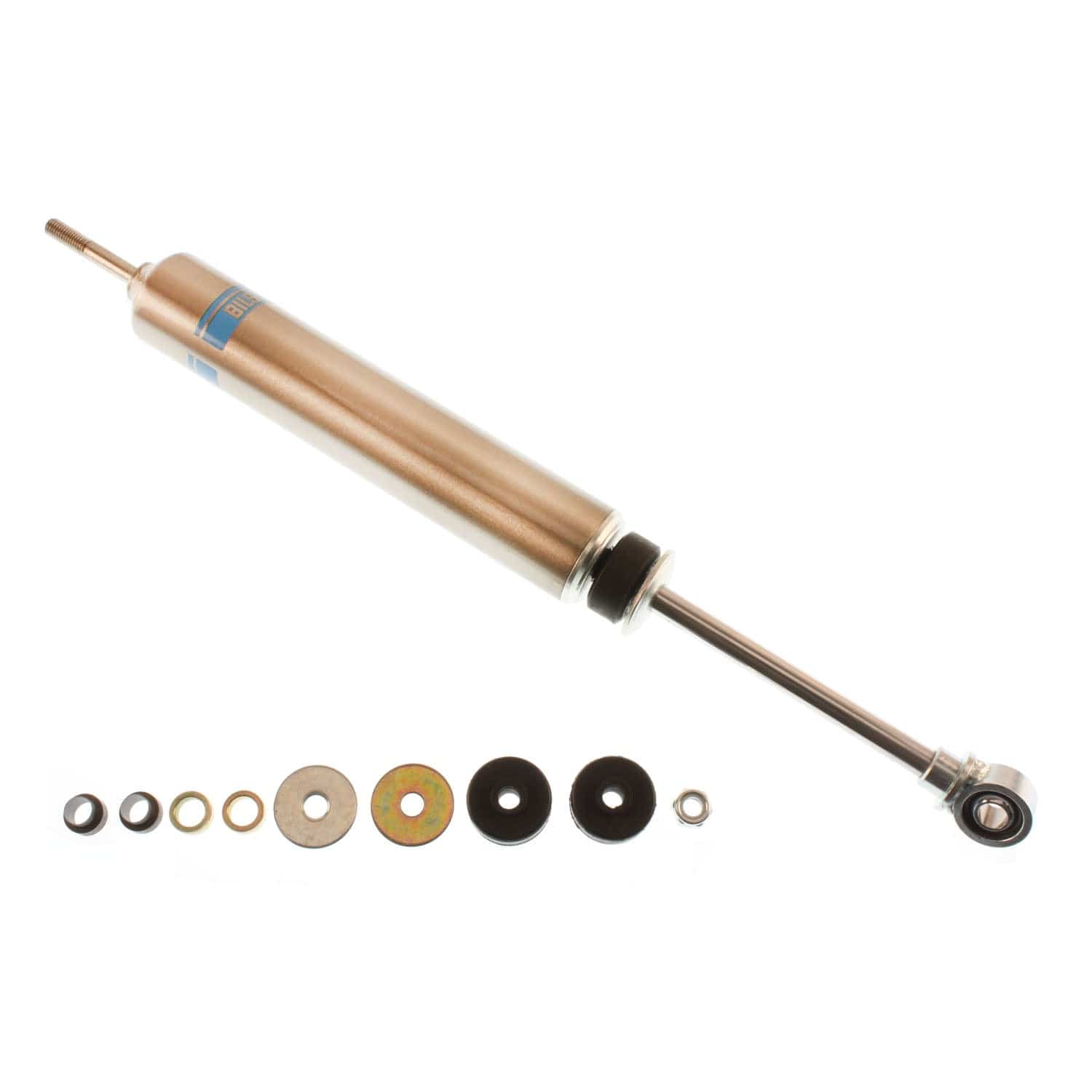

The Bilstein M 7100 shock absorber is sold for custom and motorsport builds, here at 12.15 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Specifications
| Part Number | F4-BOA-0000304 |
| Part Name | Shock Absorber |
| UPC | 790832512252 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 12 in. |
| Collapsed Length | 12.15 in. (308.6 mm) |
| Compression @ 0.52m/s | 1150 |
| Extended Length (Rounded) | 19 in. |
| Extended Length | 18.74 in. (476.0 mm) |
| Finish | Nickel Plated with Clear Powder Coat |
| Internal Design | Monotube |
| Lower Mount Type | 12 mm Heim |
| Mount Type | Stem-to-Eye |
| Rebound @ 0.52m/s | 2200 |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 7100 Classic |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
