Product Details

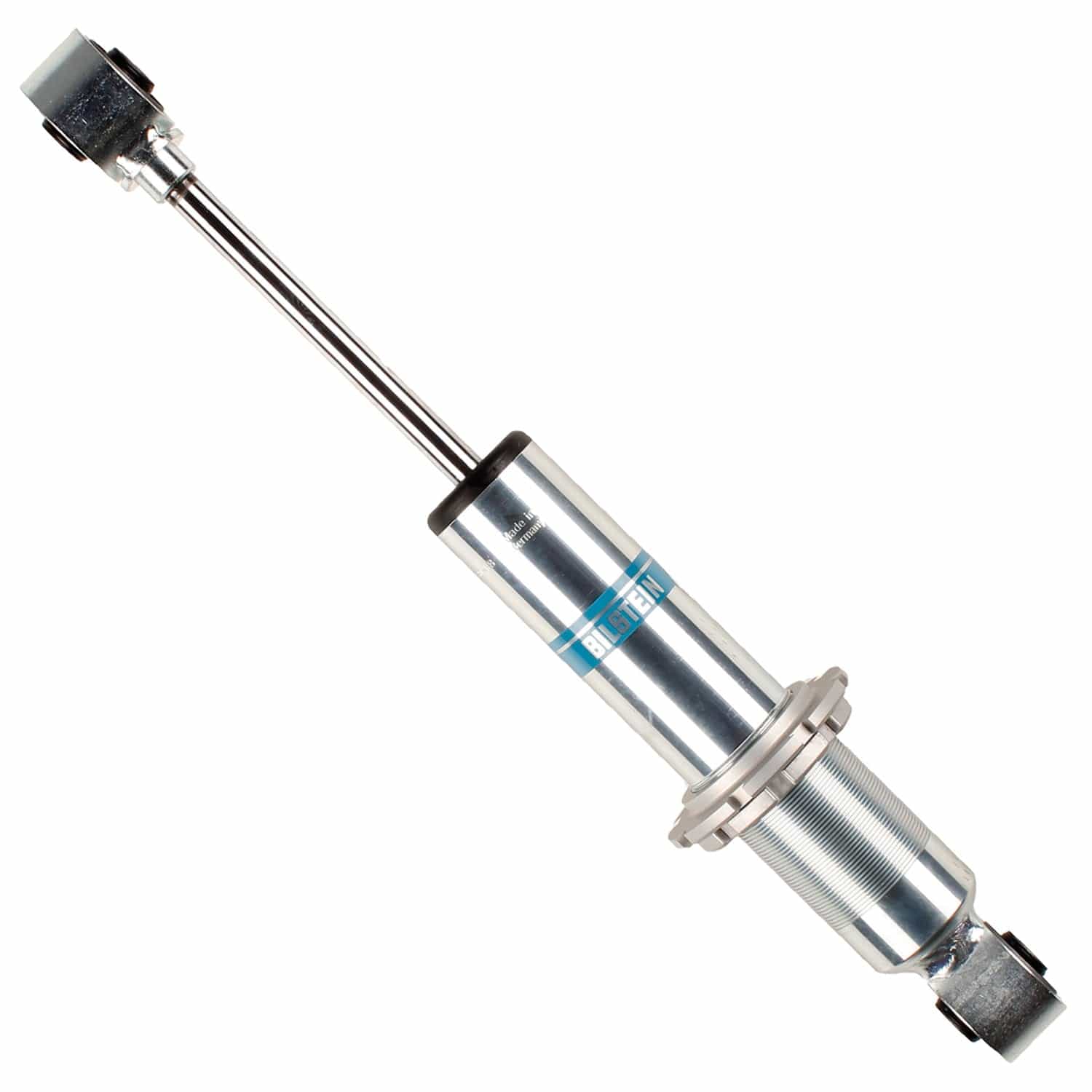

The Bilstein M 7100 shock absorber is specified by dimension rather than by vehicle, here at 12.34 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Specifications
| Part Number | 24-186520 |
| Part Name | Shock Absorber |
| UPC | 651860652238 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 12 in. |
| Collapsed Length | 12.34 in. (313.5 mm) |
| Compression @ 0.52m/s | 965 |
| Extended Length (Rounded) | 18 in. |
| Extended Length | 18.22 in. (463.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.2 mm |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | 3030 |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 7100 Classic (Coilover) |
| Spring Seat Included | Lower |
| Upper Mount Type | Eye 14.2 mm |
| Quantity | Sold Individually |
