Product Details

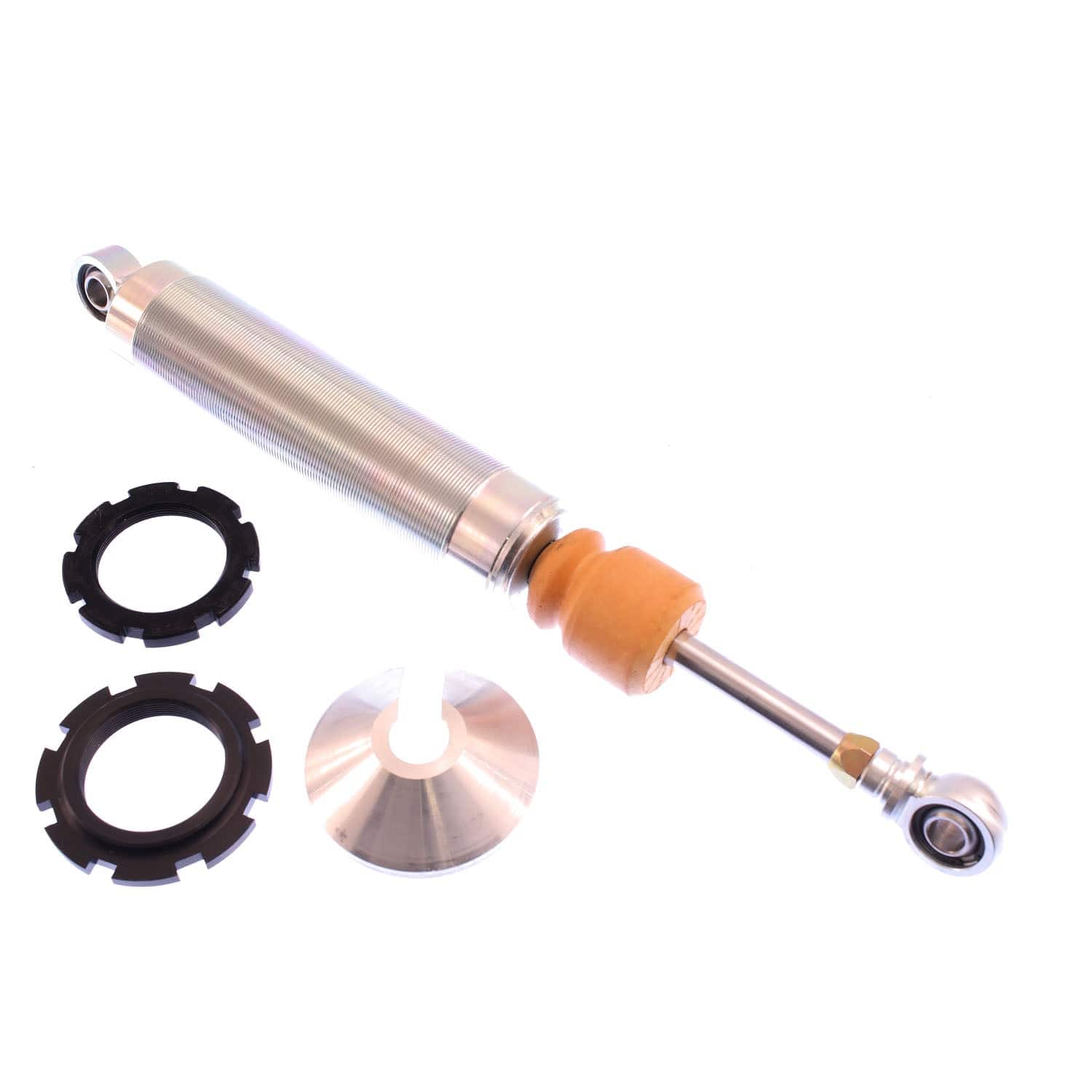

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Specifications
| Part Number | B46-0205OR |
| Part Name | Shock Absorber |
| UPC | 790832511651 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 12 in. |
| Collapsed Length | 12.00 in. |
| Collapsed Length | 304.8 mm |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 18 in. |
| Extended Length | 18.25 in. |
| Extended Length | 463.6 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | Custom |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 7100 Classic (Coilover) |

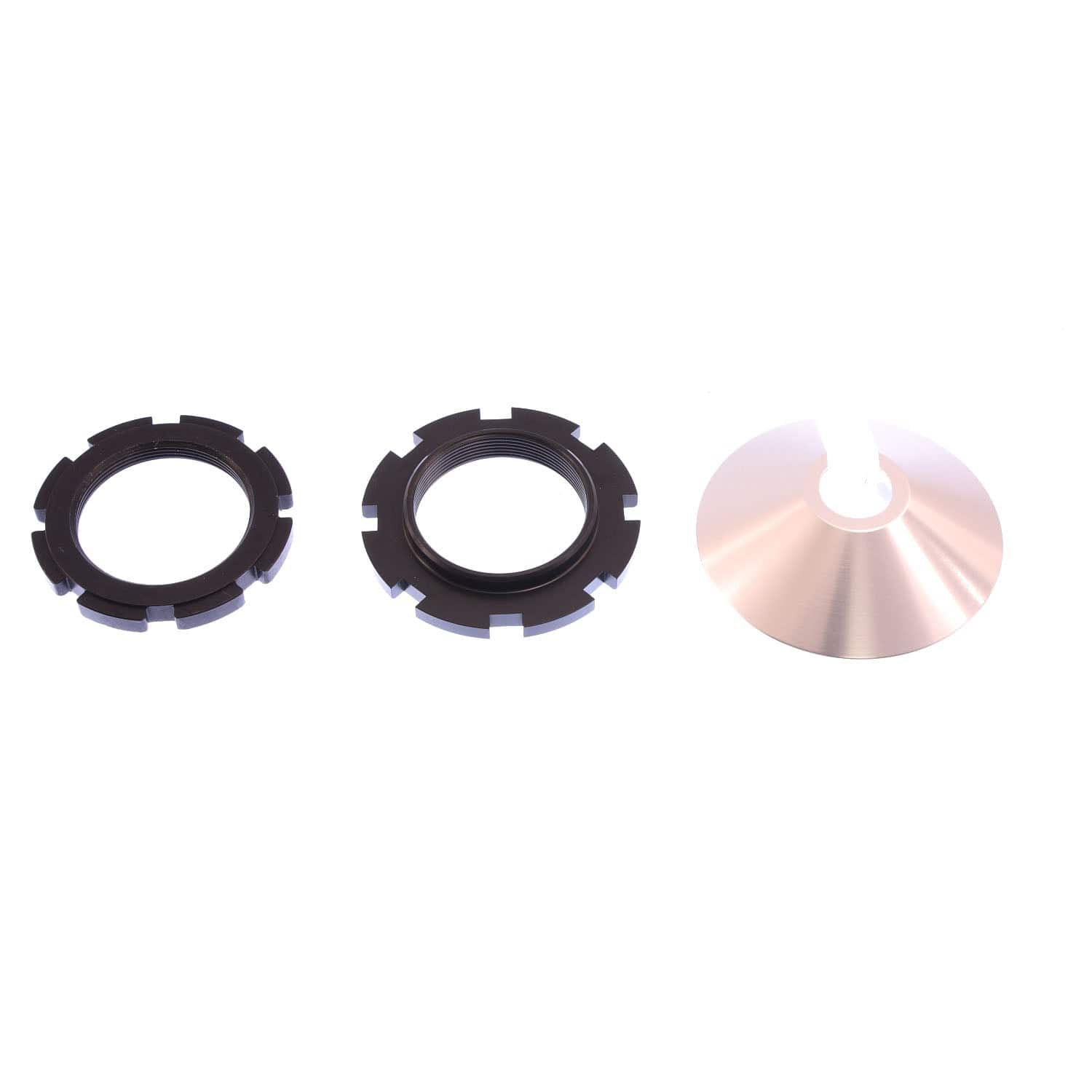

| Spring Seat Included | Yes |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
