Product Details

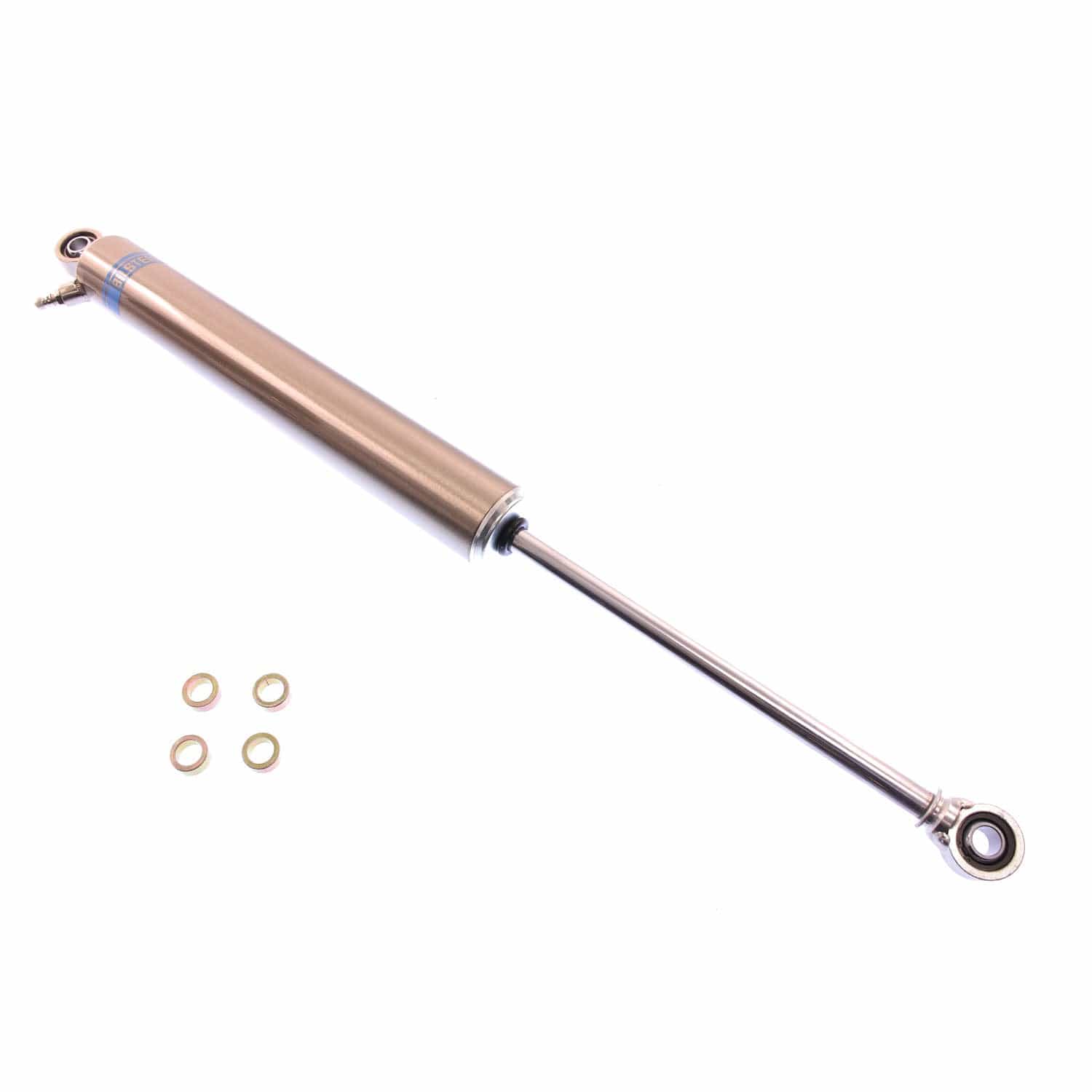

The Bilstein M 7100 shock absorber is sold for custom and motorsport builds, here at 35.22 in. extended. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Built in Germany to the standard that made the name, and backed by Bilstein's limited lifetime warranty. Consistency is the point: a damper that behaves the same on the tenth lap as the first.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Specifications
| Part Number | AK7114SA |
| Part Name | Shock Absorber |
| UPC | 790832511453 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 21 in. |
| Collapsed Length | 20.83 in. (529.1 mm) |
| Compression @ 0.52m/s | 600 |
| Extended Length (Rounded) | 35 in. |
| Extended Length | 35.22 in. (894.6 mm) |
| Finish | Nickel Plated with Clear Powder Coat |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | 1700 |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 7100 |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
