Product Details

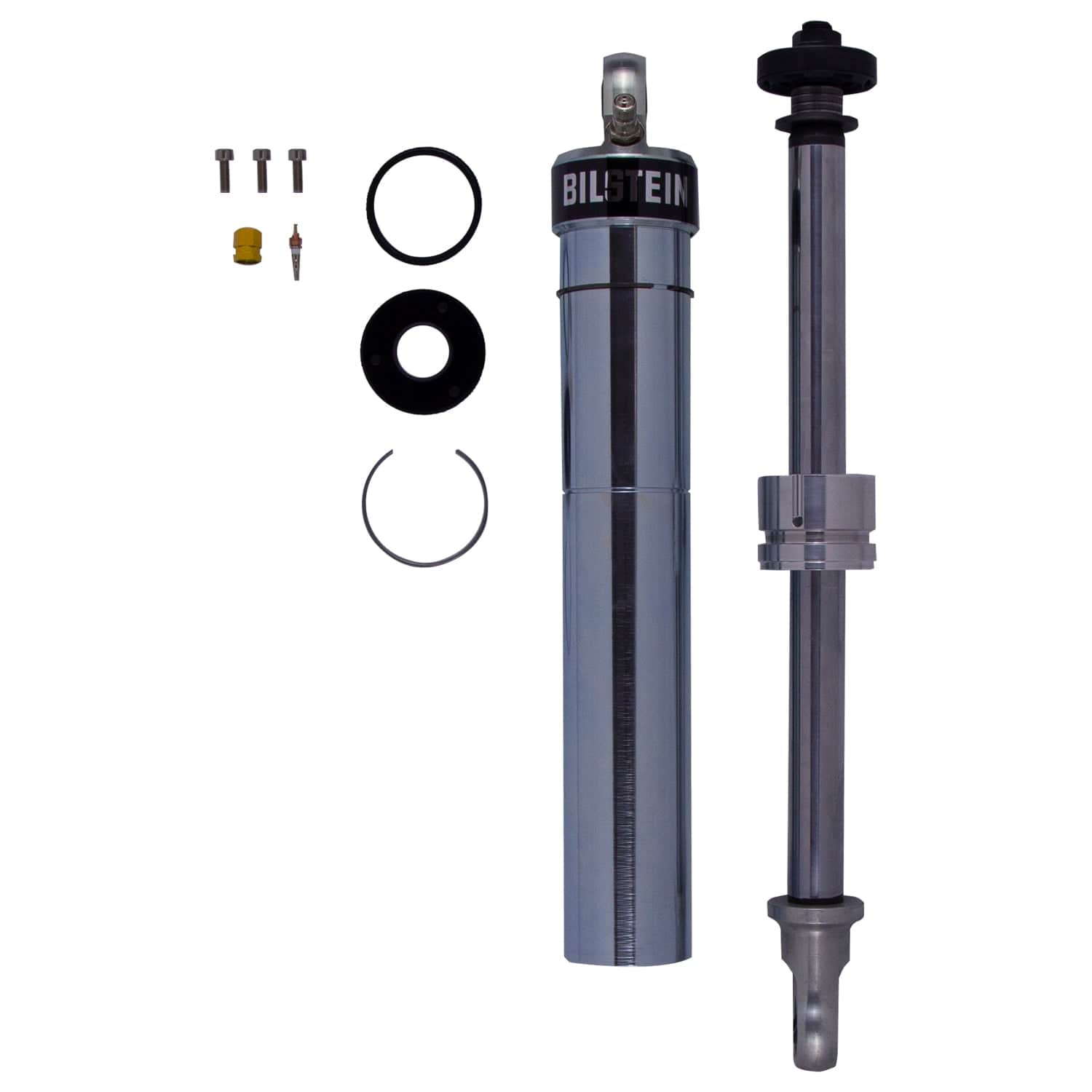

Bilstein EM46 Series Shock Absorbers are emulsion Dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications. The Shock Absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately). EM46 Series Shock Absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.
Standard Features
- Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
- Smooth zinc plated OD body design allows for optional standard and coilover applications
- 22mm case hardened, centerless ground chrome shaft provides optimal displacement, brute tensile strength and resists chipping and scratching
Specifications
| Part Number | 33-286884 |
| Part Name | Shock Absorber |
| UPC | 651860825007 |
| Body Design | Smooth Body Screw Top (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 15.24 in. |
| Collapsed Length | 387.0 mm |
| Damping Adjustable | No |
| Extended Length | 25.24 in. |
| Extended Length | 641.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Digressive |
| Segment | Motorsports |
| Series | EM46 Series |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | Digressive Dry Kit (No Valving) |
| Quantity | Sold Individually |
