Product Details

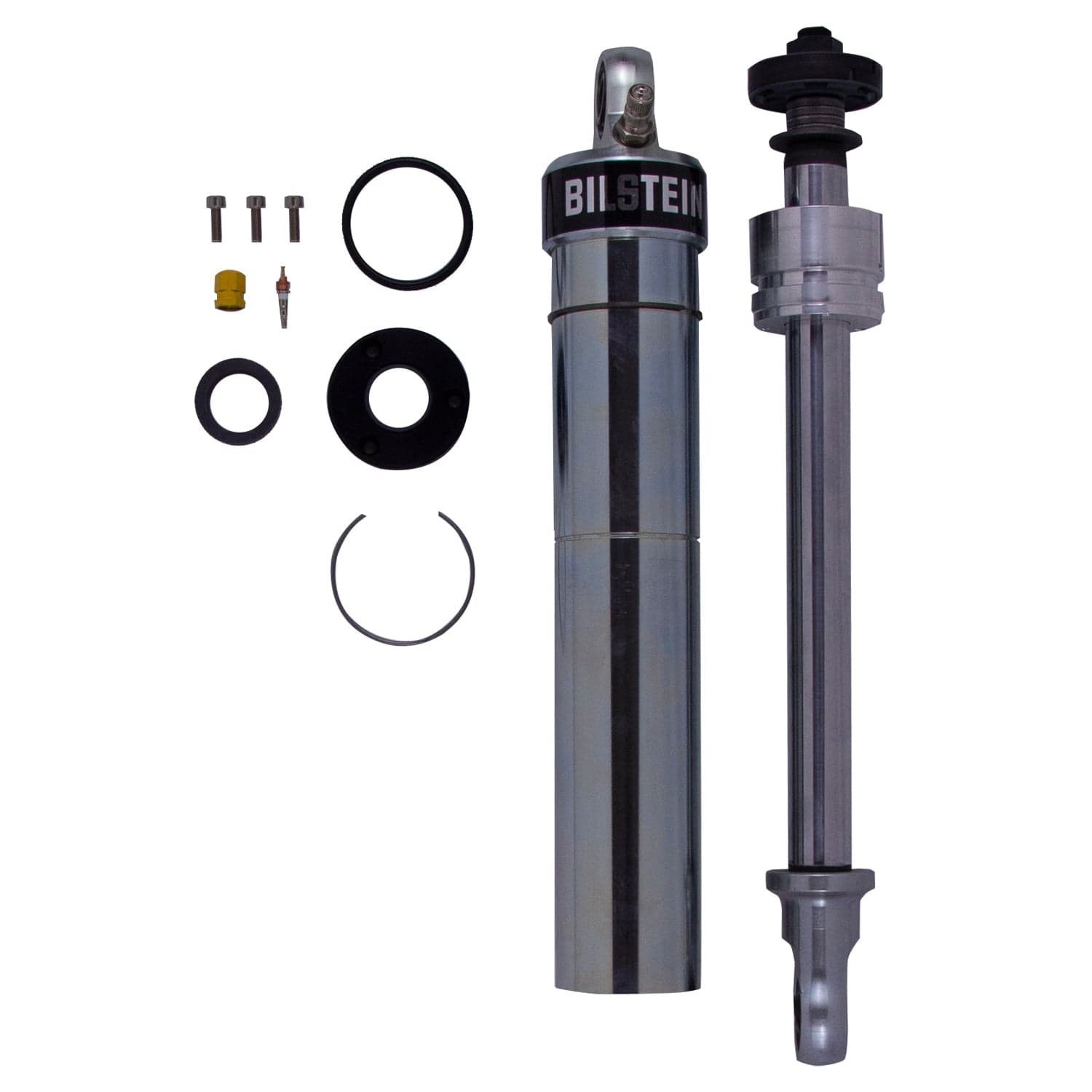

The Bilstein Bilstein shock absorber is sold for custom and motorsport builds, here at 14.15 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.
Features
- Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
- Smooth zinc plated OD body design allows for optional standard and coilover applications
- 22mm case hardened, centerless ground chrome shaft provides optimal displacement, brute tensile strength and resists chipping and scratching
Specifications
| Part Number | 33-286877 |
| Part Name | Shock Absorber |
| UPC | 651860825014 |
| Body Design | Smooth Body Screw Top (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 14.15 in. (359.3 mm) |
| Damping Adjustable | No |
| Extended Length | 22.16 in. (562.8 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Digressive |
| Segment | Motorsports |
| Series | EM46 Series |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | Digressive Dry Kit (No Valving) |
| Quantity | Sold Individually |
