Product Details

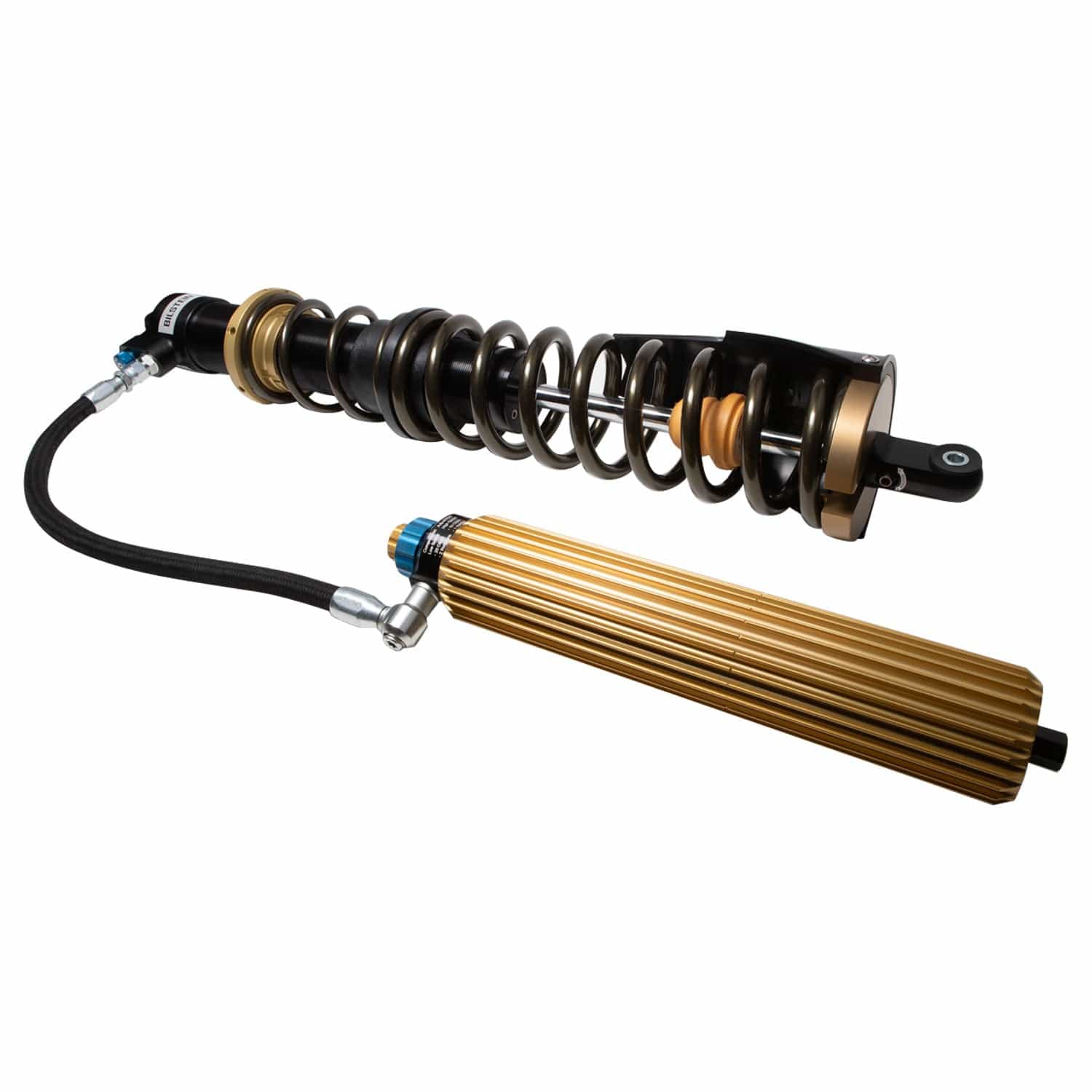

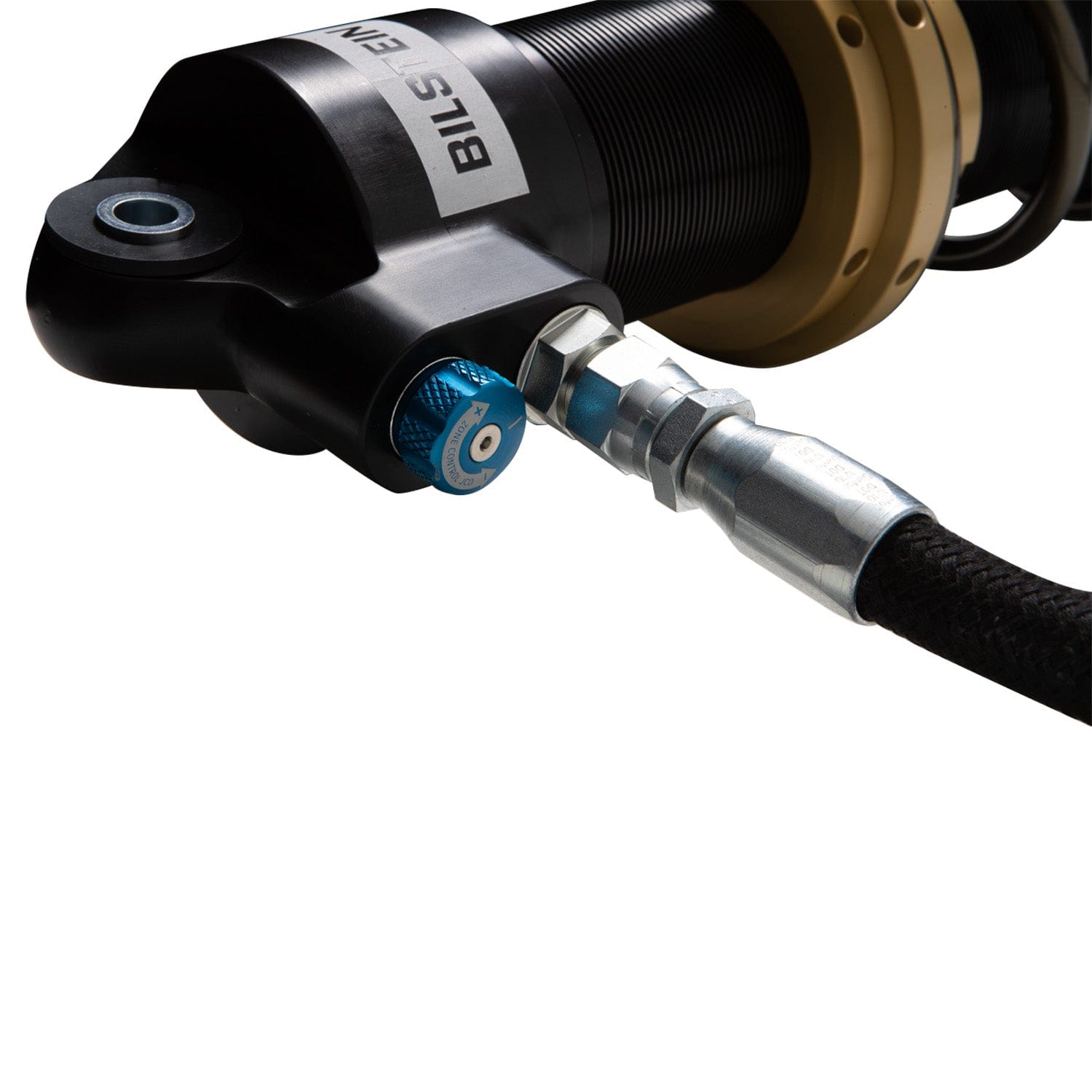

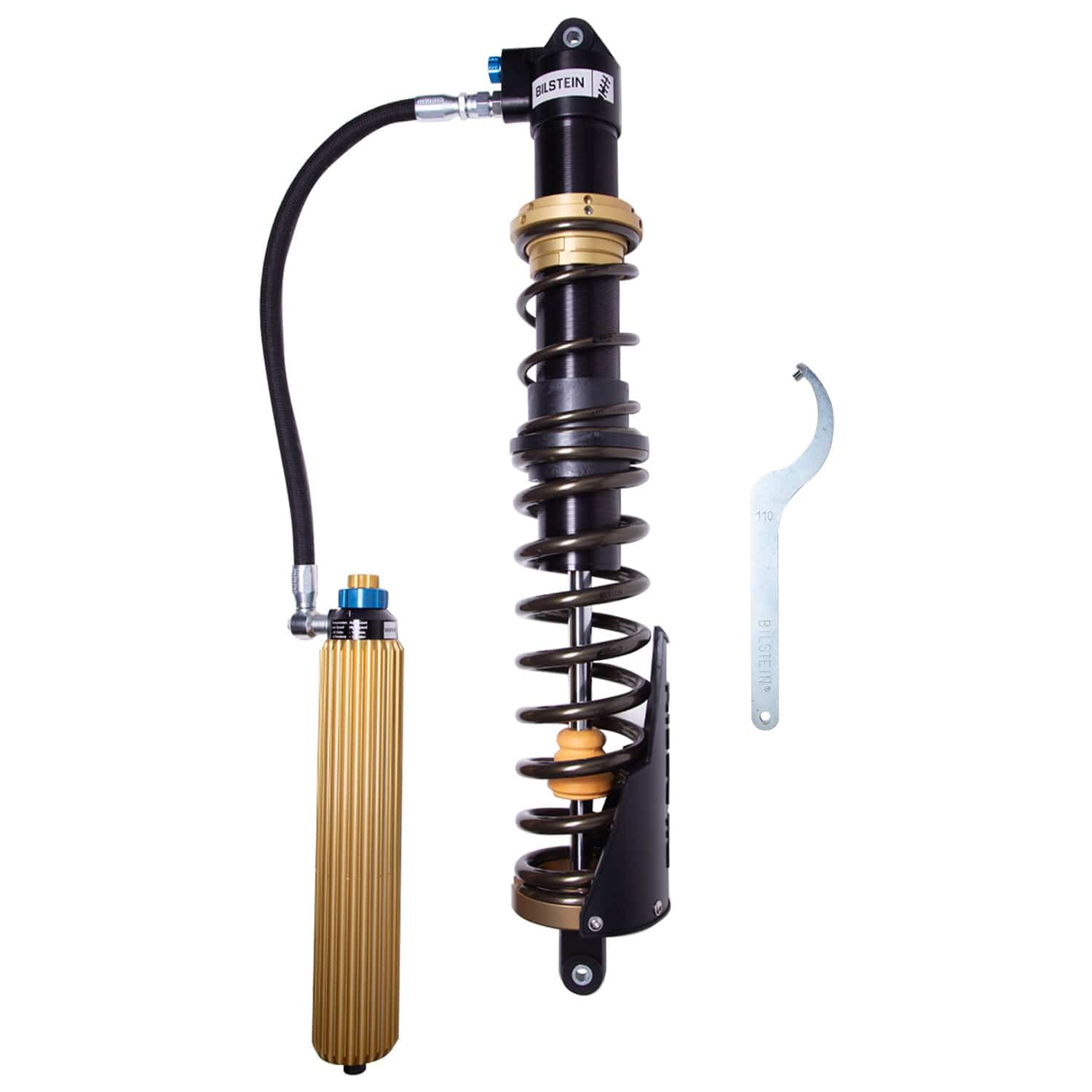

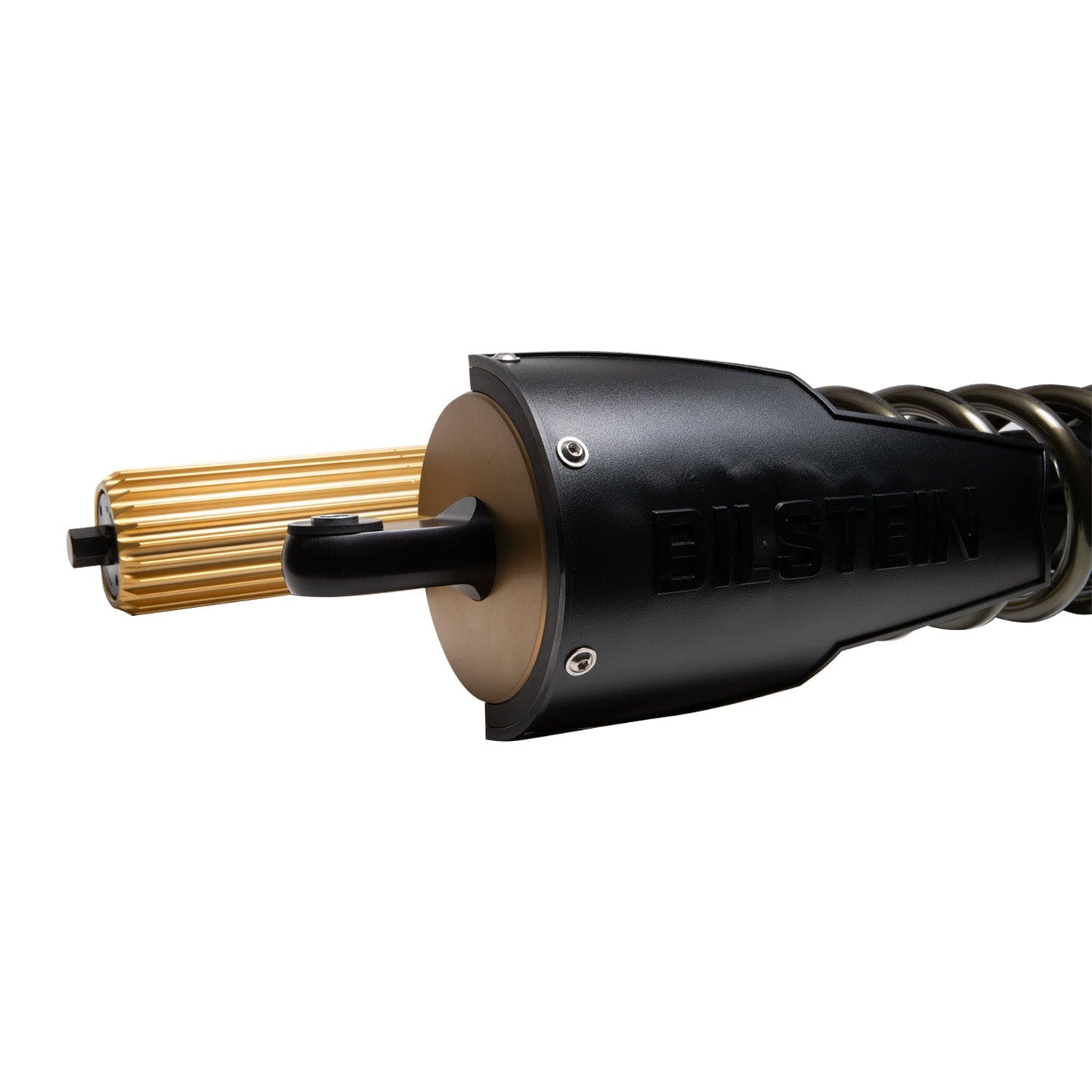

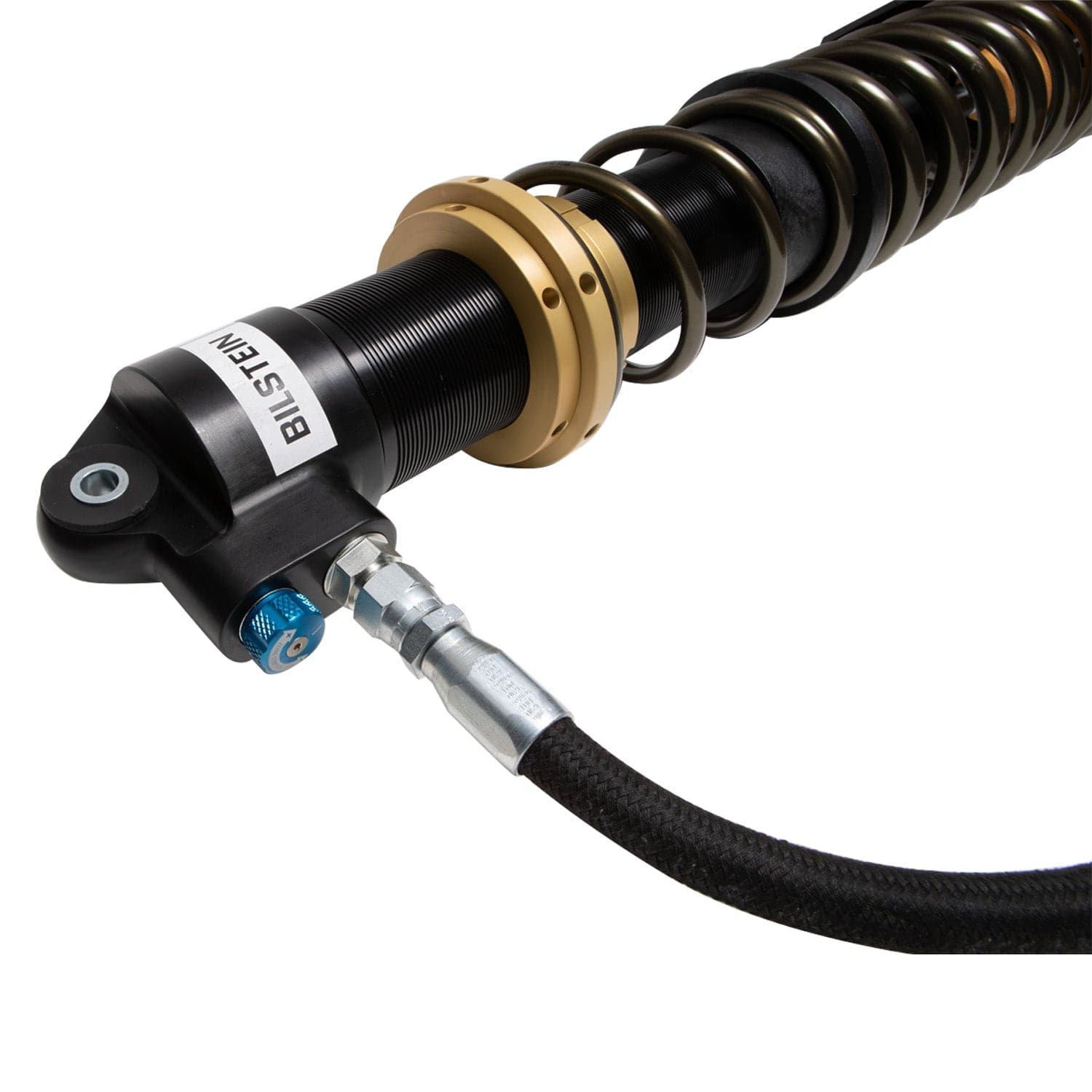

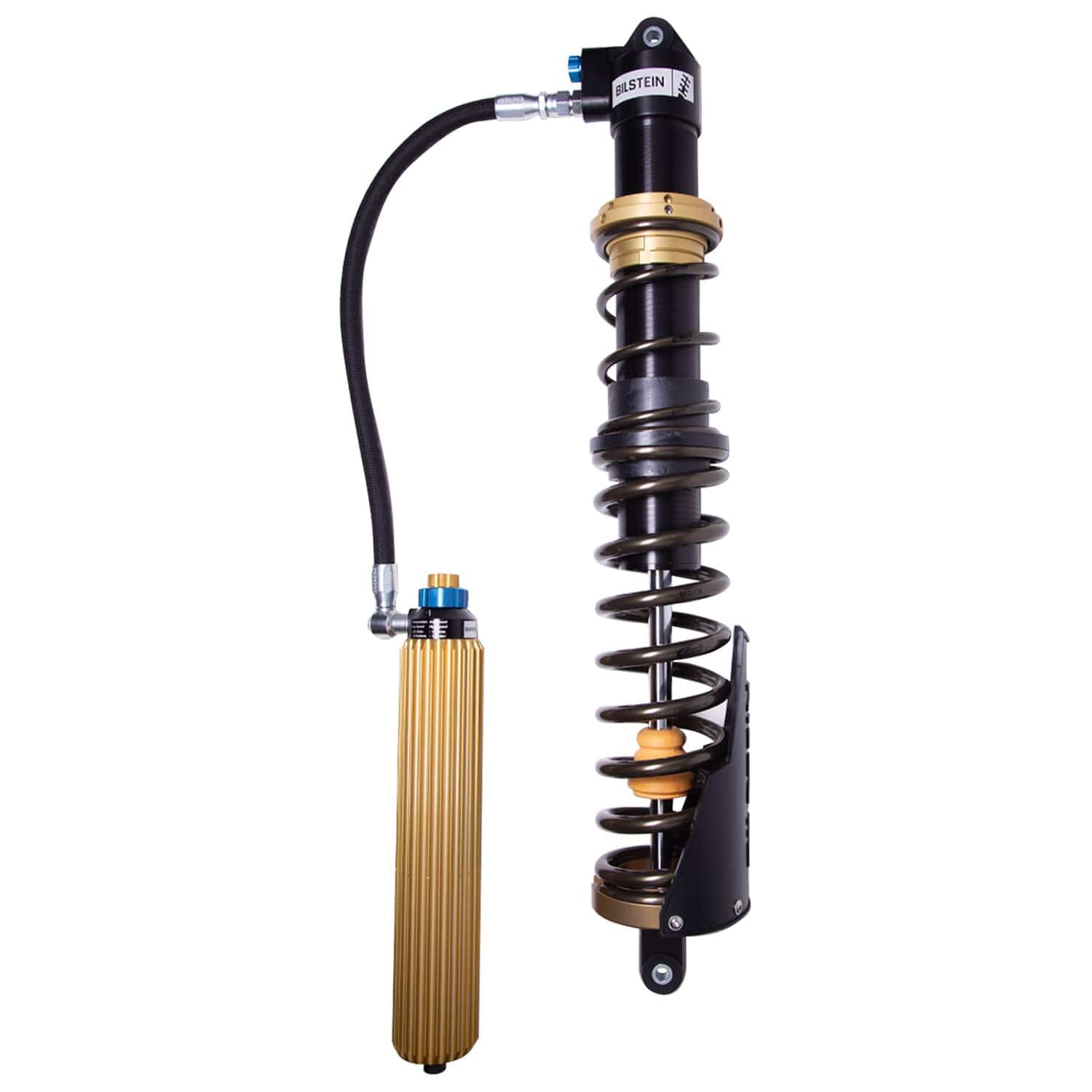

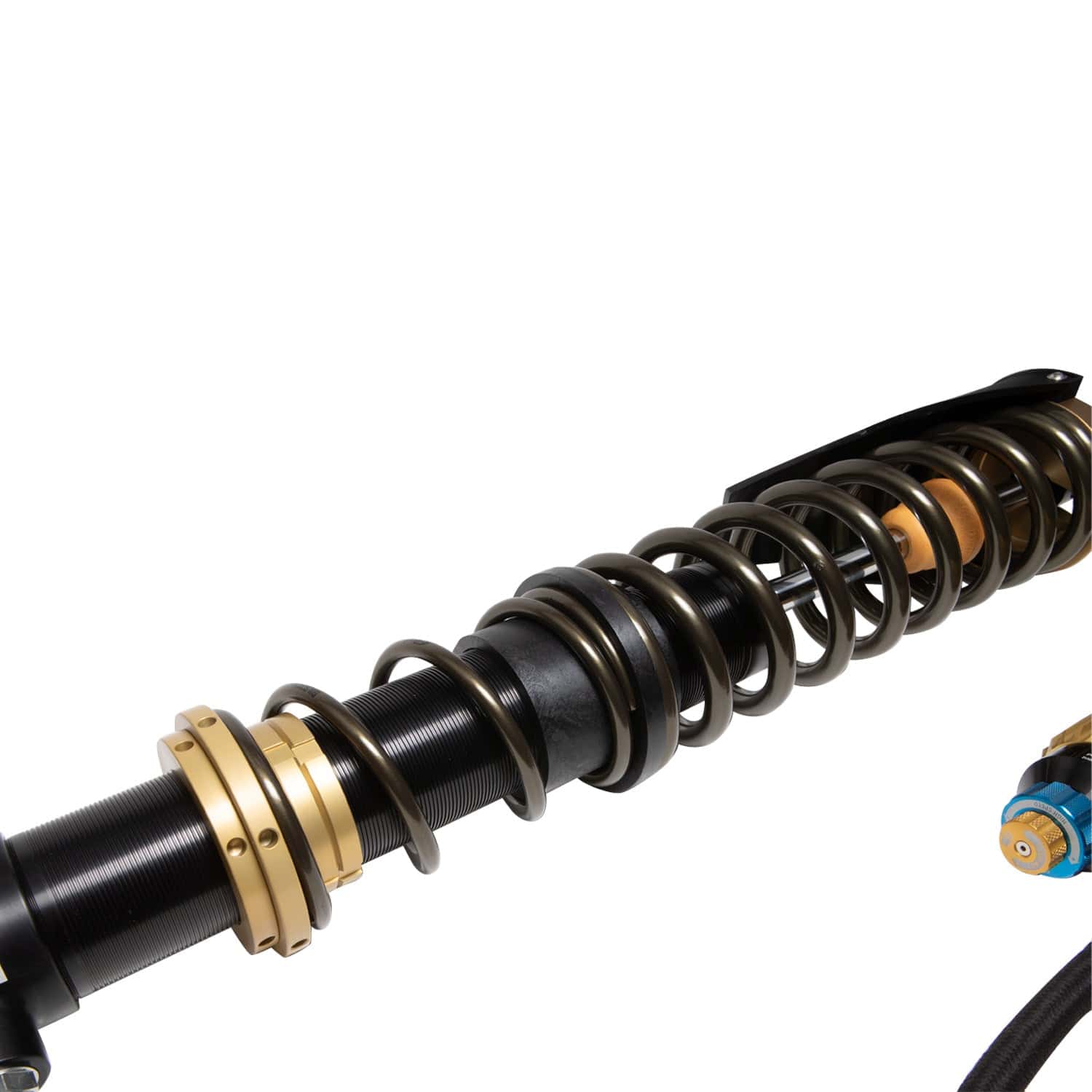

Bilstein Black Hawk Powersports Coilovers for the 2020 Polaris RZR XP 1000 Limited Edition are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein's patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments.
Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique bottomless ride with Bilstein's new Black Hawk Powersports coilover packages.
Standard Features
- Zone Control CR - Position Sensitive Damping

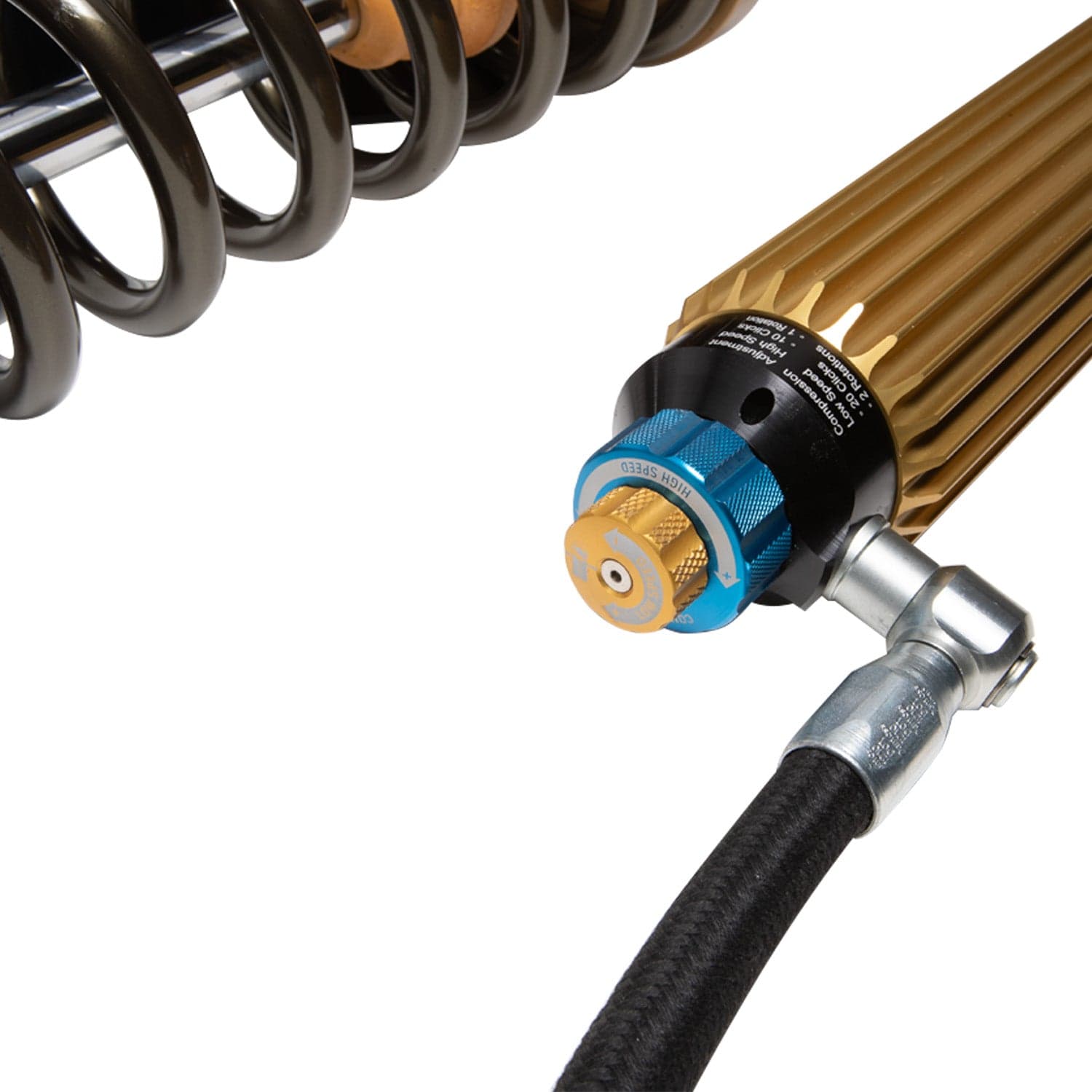

- 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound
- Direct Fit Motorsports Package
Specifications
| Part Number | 41-327852 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2020 Polaris RZR XP 1000 Limited Edition |
| UPC | 651860944692 |
| Adjustment Type | 4-Way |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Threaded Body |
| Body Material | Aluminum Alloy |
| Boot Included | No |
| Collapsed Length | 22.44 in. |
| Collapsed Length | 570.0 mm |
| Compression @ 0.52m/s | Adjustable |
| Damping Adjustable | Yes |
| Extended Length | 34.15 in. |
| Extended Length | 867.3 mm |
| Finish | Type III Hard Anodized |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12 mm (ID) |
| Position | Rear |
| Rebound @ 0.52m/s | Adjustable |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | Black Hawk Powersports |
| Upper Mount Type | Eye 12 mm (ID) |
| Notes | 2 Seats |
Vehicle Fitment
- 2020 Polaris RZR XP 1000 Limited Edition
