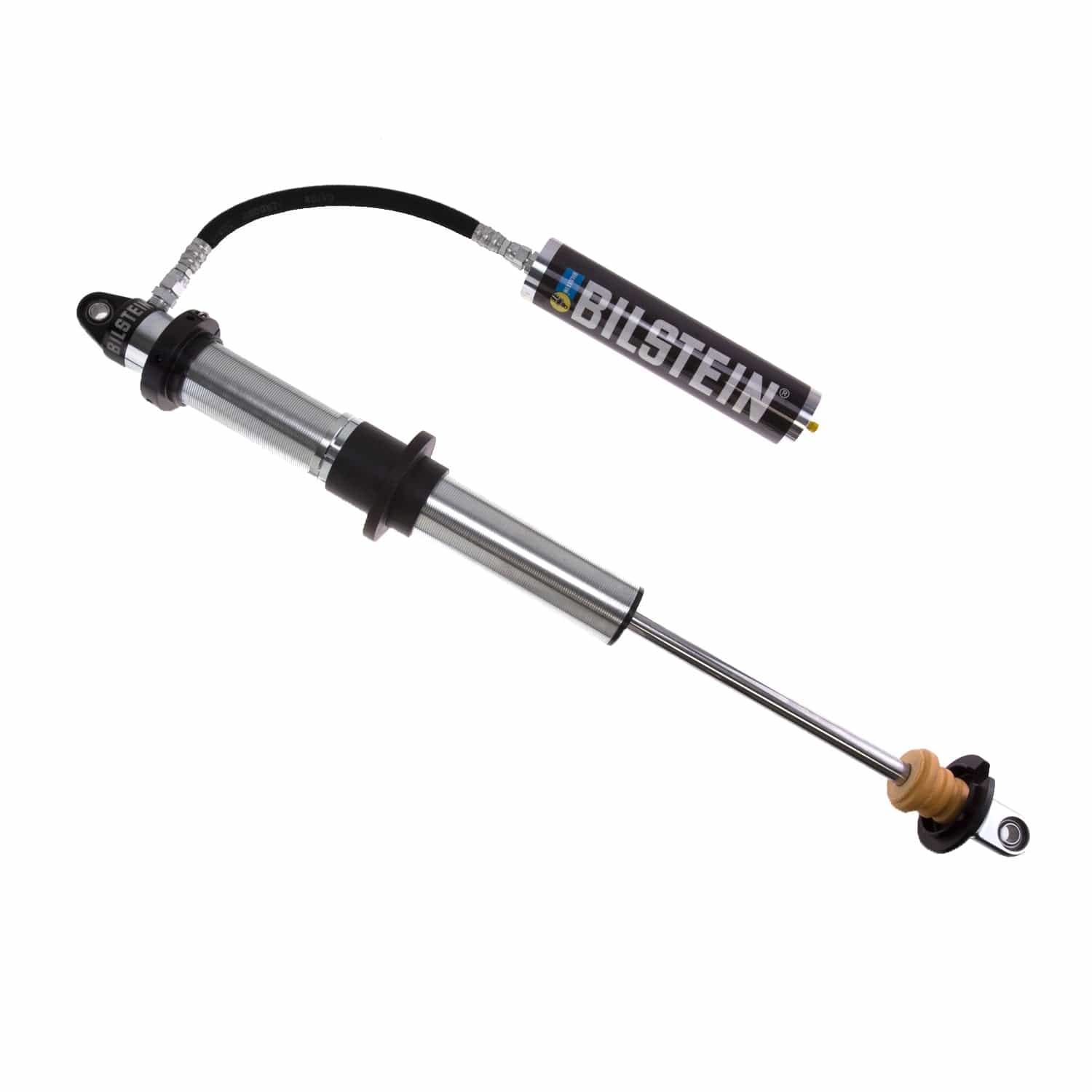

Bilstein B8 8125 Monotube Suspension Shock Absorber - 24.50 in. Collapsed 33-225630

Bilstein

|

SKU: 33-225630

Bilstein B8 8125 Monotube Suspension Shock Absorber - 24.50 in. Collapsed

$604.00
2 in stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments.

All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

Standard Features

  • Available in 46mm and 60mm monotubes for consistent, fade-free performance
  • Threaded body with dual-rate coilover hardware
  • Remote reservoir for greater resistance to heat and increased travel length
Specifications
Part Number 33-225630
Part Name Shock Absorber
UPC 651860754772
Body Design Threaded Body Screw Top (Coilover)
Body Diameter (ID) 60 mm
Collapsed Length (Rounded) 25 in.
Collapsed Length 24.50 in.
Collapsed Length 622.3 mm
Compression @ 0.52m/s 1100
Extended Length (Rounded) 39 in.
Extended Length 38.50 in.
Extended Length 977.9 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye .5x1.5i n.
Mount Type Eye-to-Eye
Optional Reservoir Clamp B4-KT1-Z292A00
Rebound @ 0.52m/s 3700
Reservoir Yes
Segment Motorsports
Series B8 8125
Spring Seat Included Yes
Upper Mount Type Eye .5x1.5i n.
Quantity Sold Individually
