Product Details

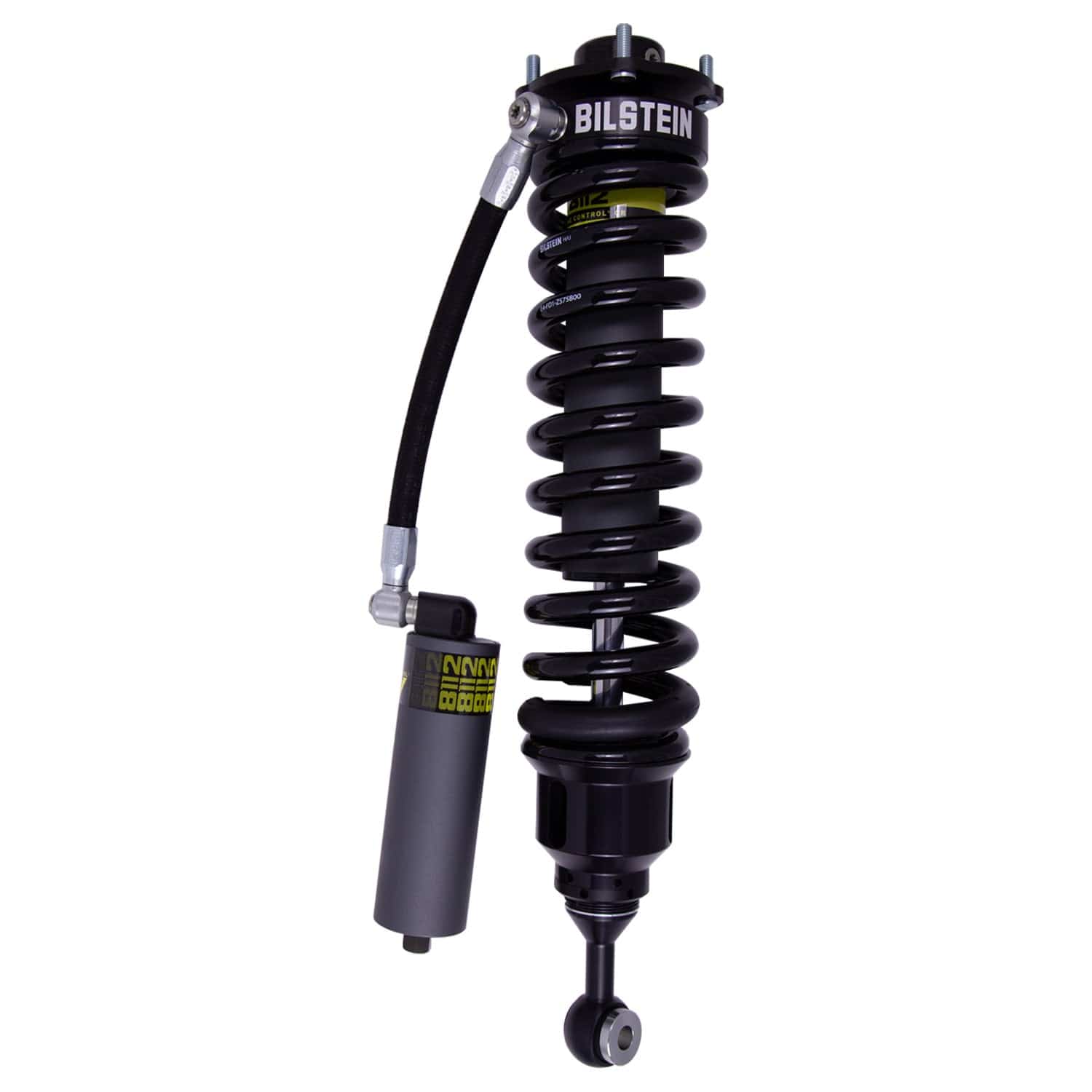

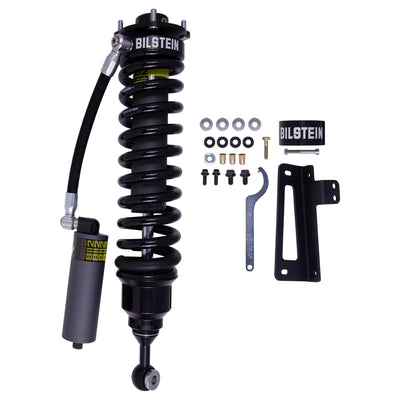

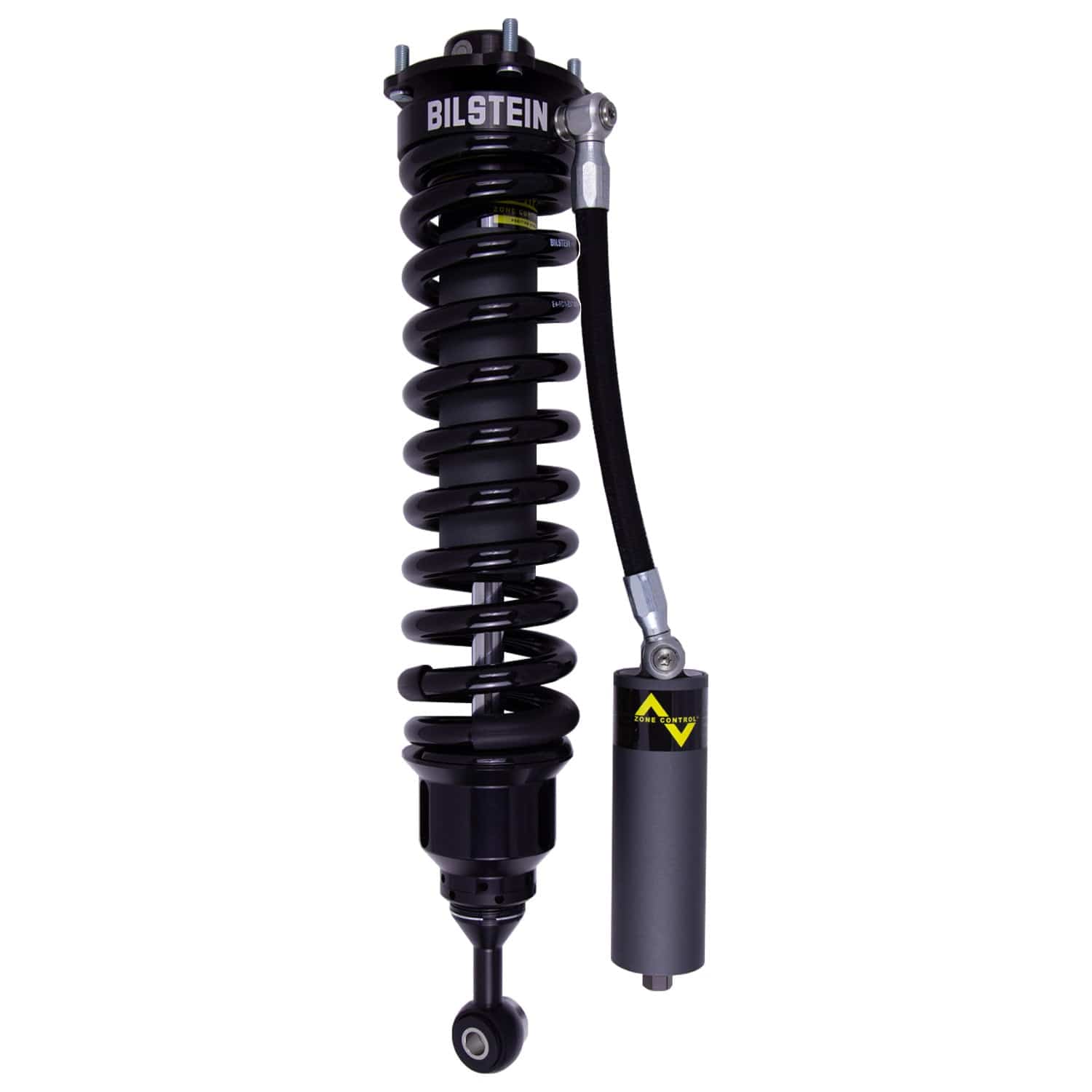

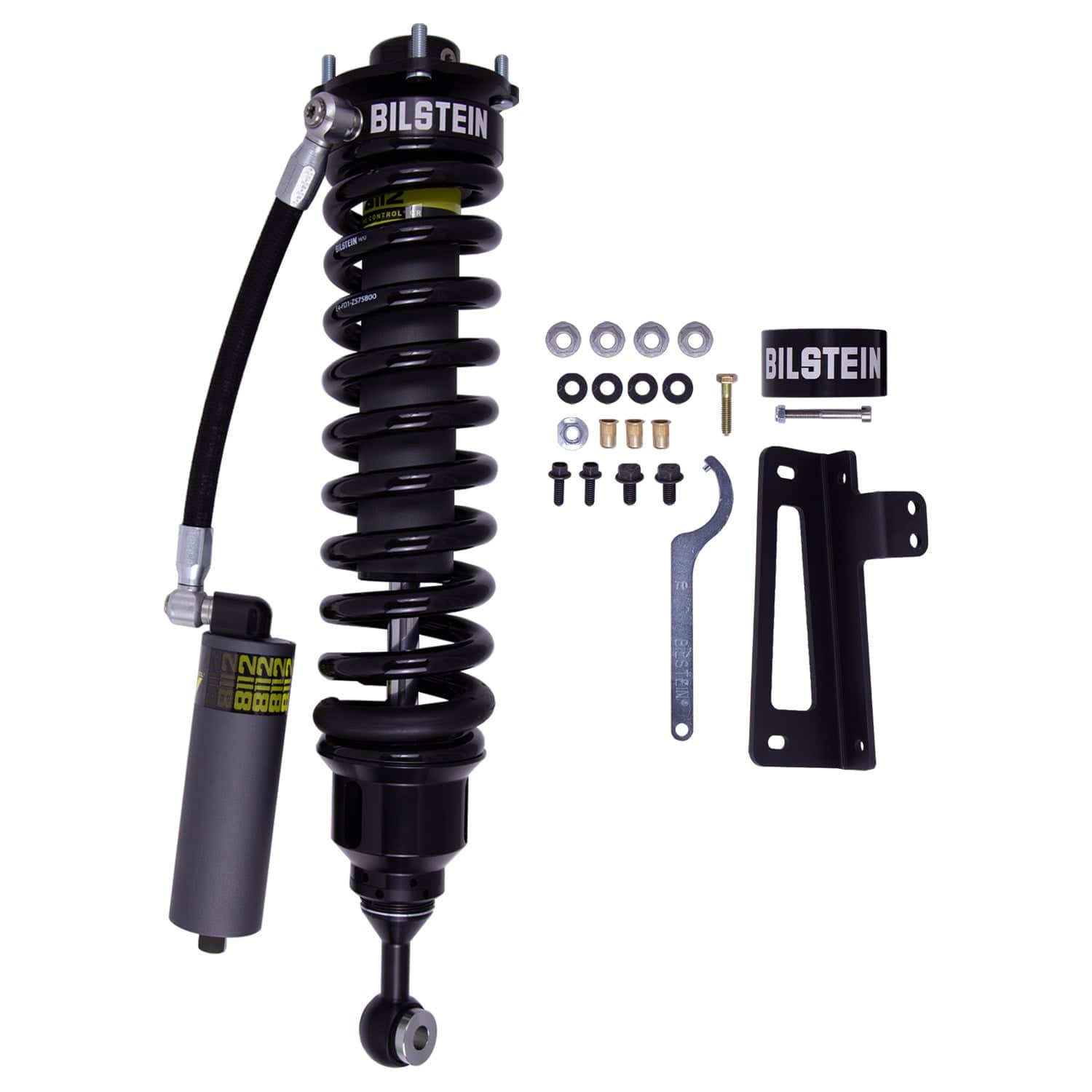

The Bilstein B8 shock and spring assemblies are built for a 2007-2021 Toyota Tundra that has been lifted or leveled, valved for the taller ride height rather than fighting it.

This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.

Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-326039
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2007-2021 Toyota Tundra
Drivetrain 4WD
UPC 651860891866
Front Lift Height 2.25 - 3.25 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 19.43 in. (493.6 mm)
Damping Adjustable No
Extended Length 25.79 in. (655.1 mm)
Finish Dampers: EVO Grey / Springs: Black
Internal Design Monotube
Lower Mount Type Eye 16.1 mm
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended
Vehicle Fitment
  • 2007 Toyota Tundra 4WD
  • 2008 Toyota Tundra 4WD
  • 2009 Toyota Tundra 4WD
  • 2010 Toyota Tundra 4WD
  • 2011 Toyota Tundra 4WD
  • 2012 Toyota Tundra 4WD
  • 2013 Toyota Tundra 4WD
  • 2014 Toyota Tundra 4WD
  • 2015 Toyota Tundra 4WD
  • 2016 Toyota Tundra 4WD
  • 2017 Toyota Tundra 4WD
  • 2018 Toyota Tundra 4WD
  • 2019 Toyota Tundra 4WD
  • 2020 Toyota Tundra 4WD
  • 2021 Toyota Tundra 4WD
