Product Details

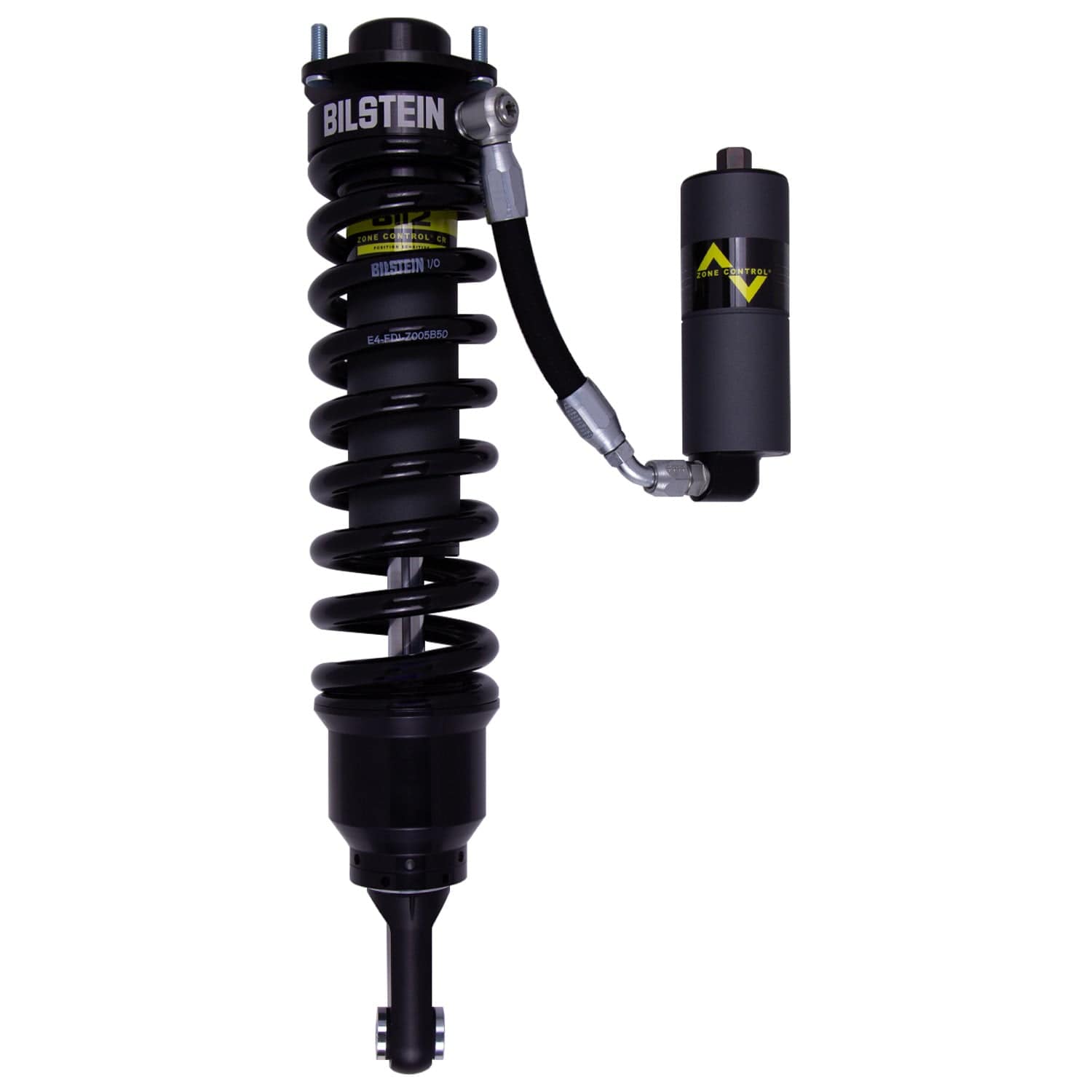

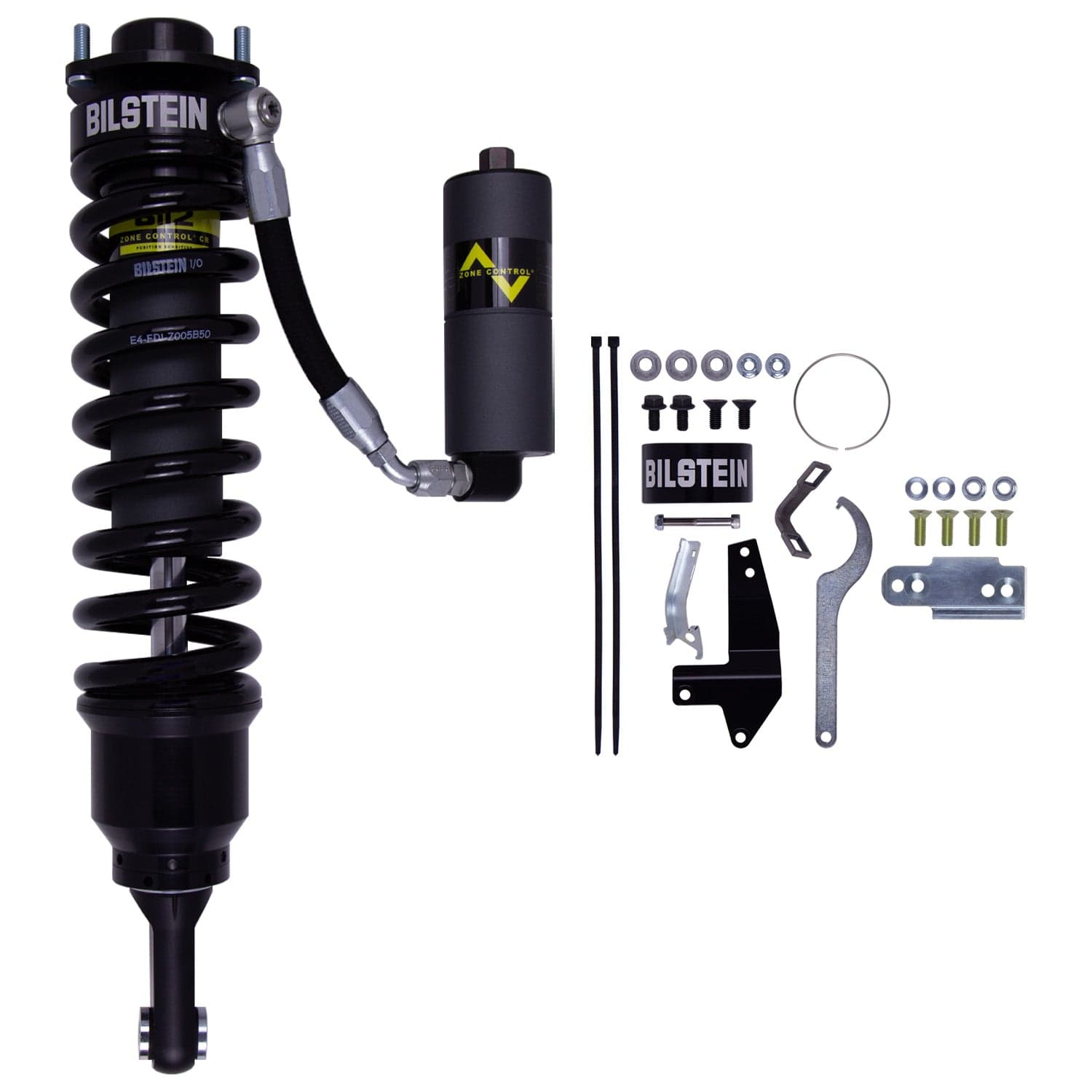

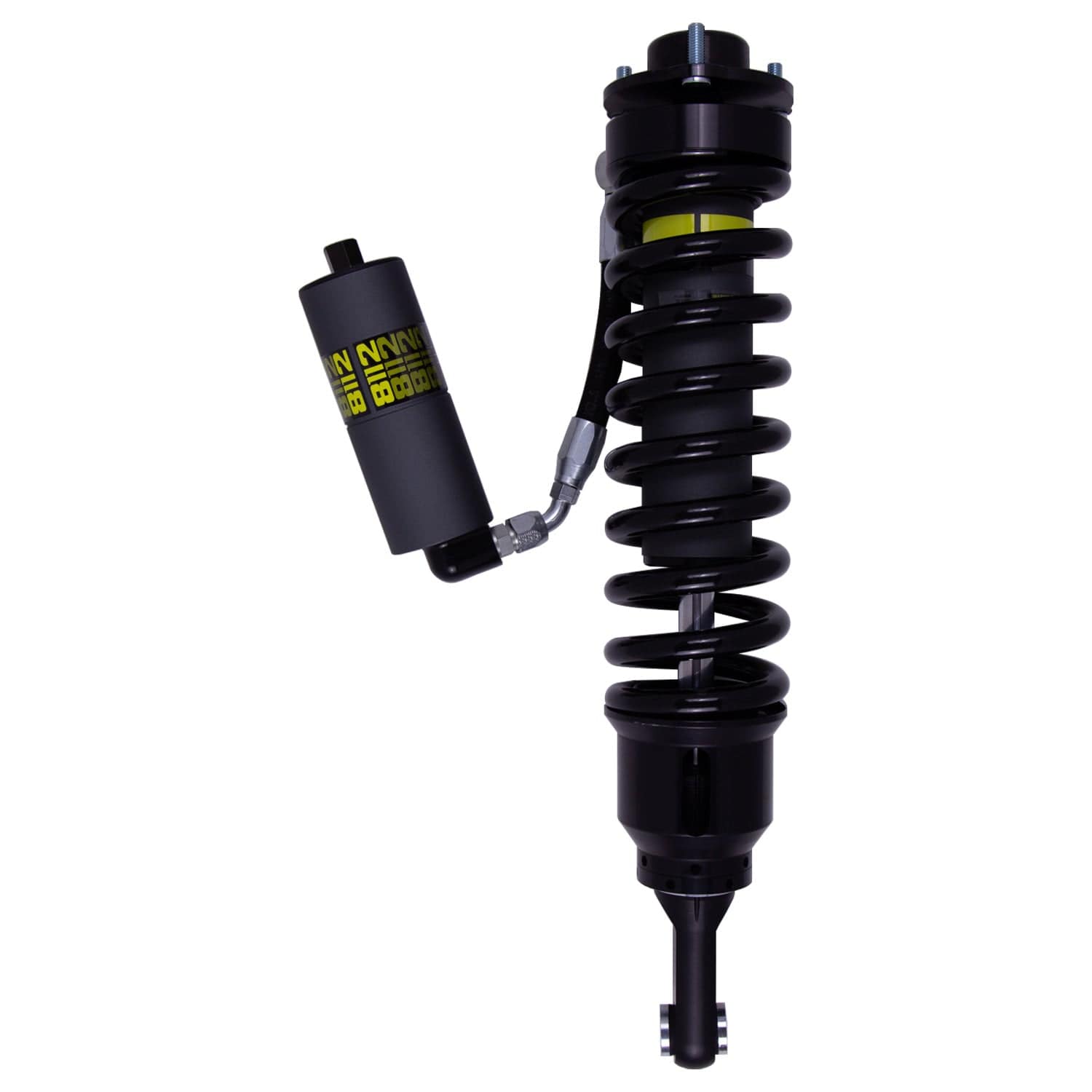

Lifting or leveling a 2003-2009 Toyota 4Runner changes what the dampers have to do. The Bilstein B8 shock and spring assemblies are built for that taller stance and stay composed on rough ground.
Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326336 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2003-2009 Toyota 4Runner |
| Drivetrain | 4WD |
| UPC | 651860916767 |
| Front Lift Height | 1.3 - 3.4 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. (456.9 mm) |
| Damping Adjustable | No |
| Extended Length | 22.80 in. (579.1 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without X-REAS Suspension |
Vehicle Fitment
- 2003 Toyota 4Runner 4WD
- 2004 Toyota 4Runner 4WD
- 2005 Toyota 4Runner 4WD
- 2006 Toyota 4Runner 4WD
- 2007 Toyota 4Runner 4WD
- 2008 Toyota 4Runner 4WD
- 2009 Toyota 4Runner 4WD
