Product Details

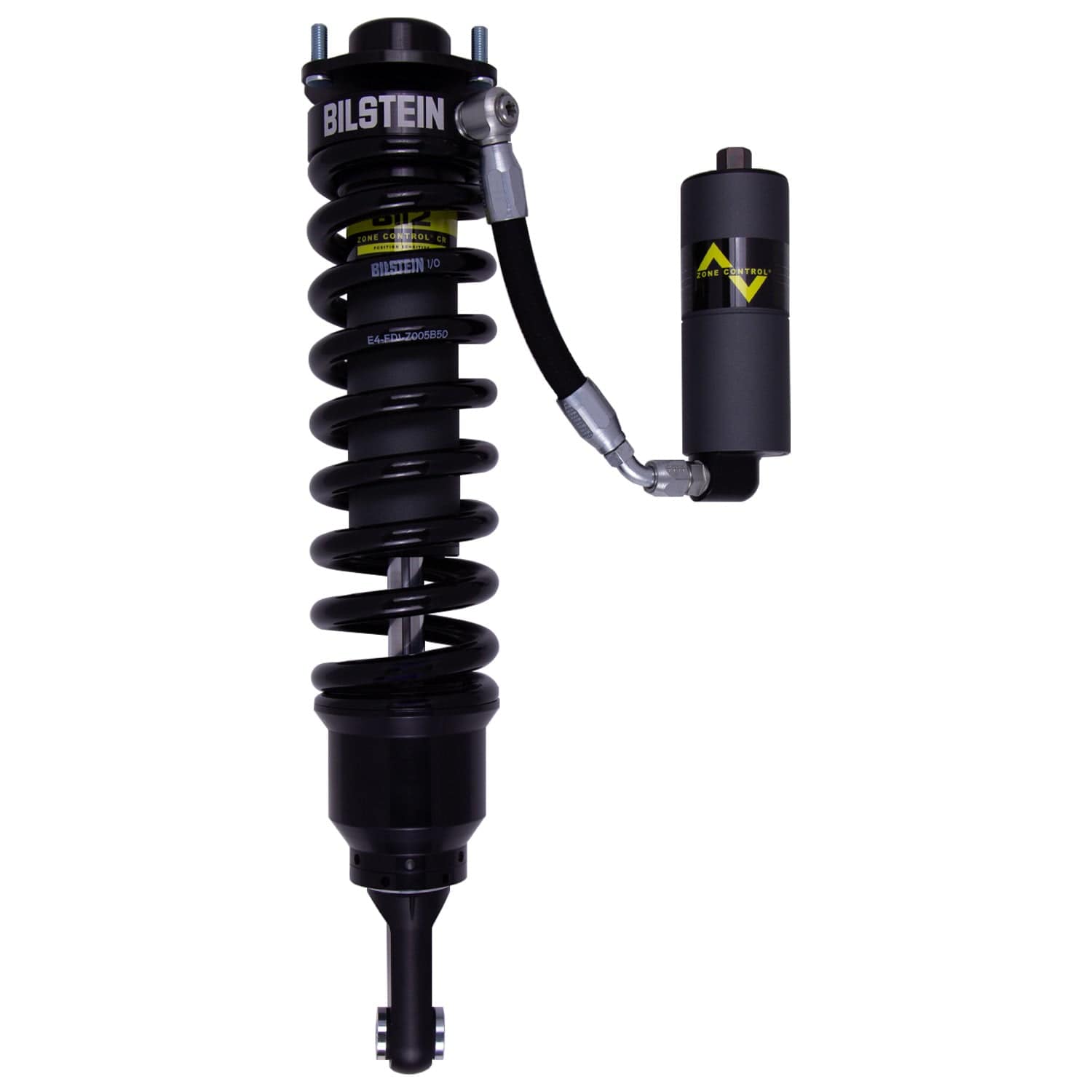

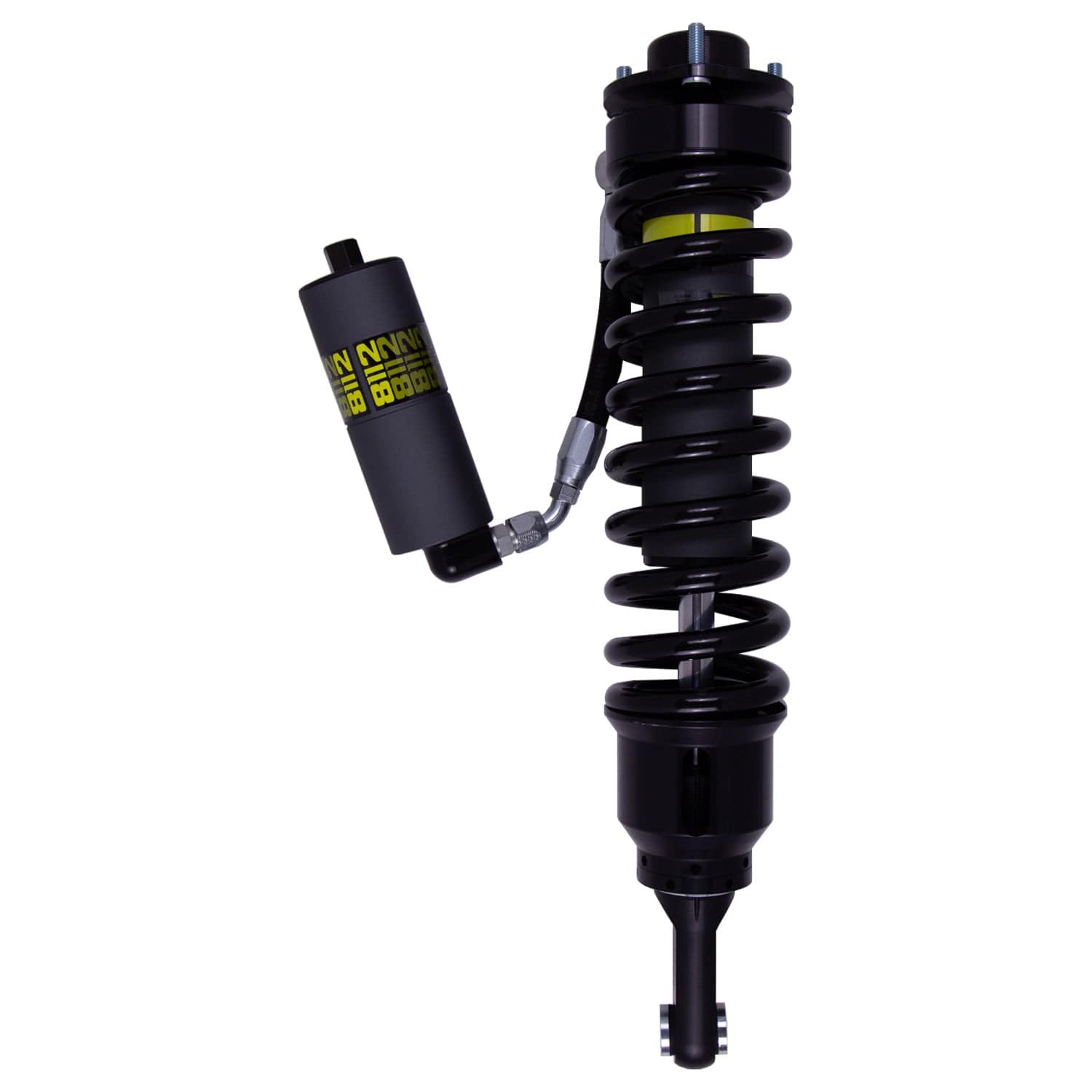

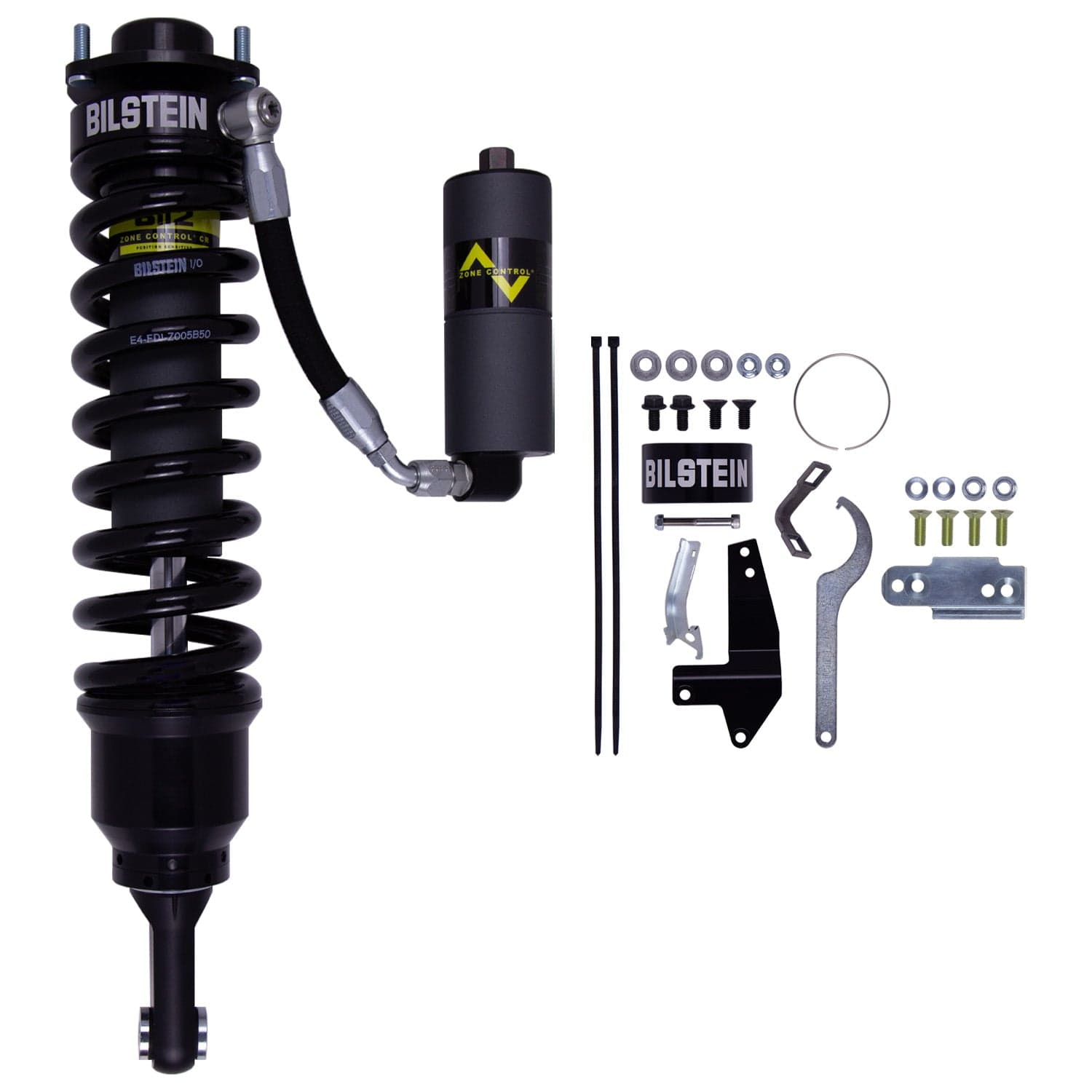

Lifting or leveling a 2003-2009 Lexus GX470 changes what the dampers have to do. The Bilstein B8 shock and spring assemblies are built for that taller stance and stay composed on rough ground.
Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326336 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2003-2009 Lexus GX470 |
| Drivetrain | 4WD |
| UPC | 651860916767 |
| Front Lift Height | 1.3 - 3.4 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. (456.9 mm) |
| Damping Adjustable | No |
| Extended Length | 22.80 in. (579.1 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without X-REAS Suspension |
Vehicle Fitment
- 2003 Lexus GX470
- 2004 Lexus GX470
- 2005 Lexus GX470
- 2006 Lexus GX470
- 2007 Lexus GX470
- 2008 Lexus GX470
- 2009 Lexus GX470
