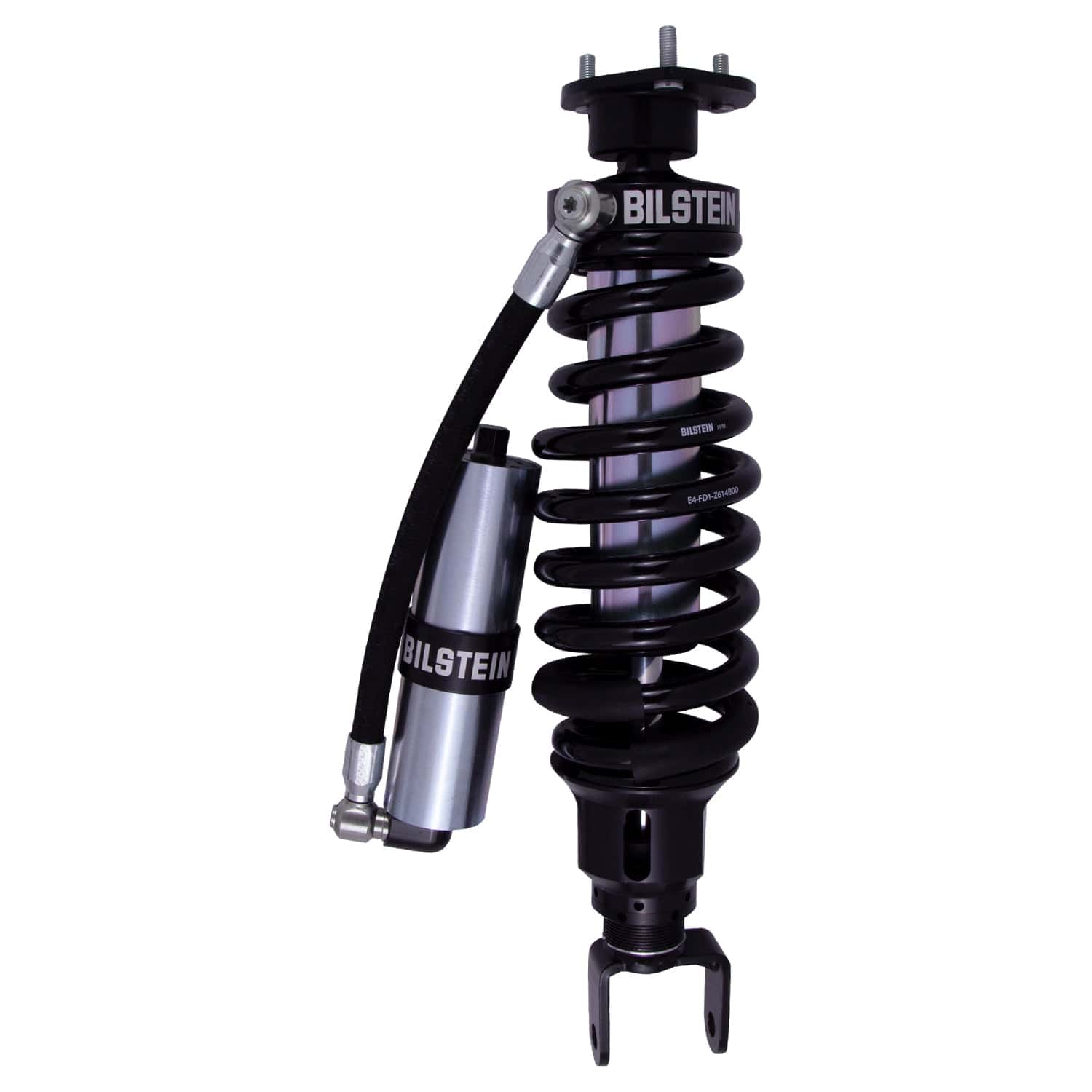

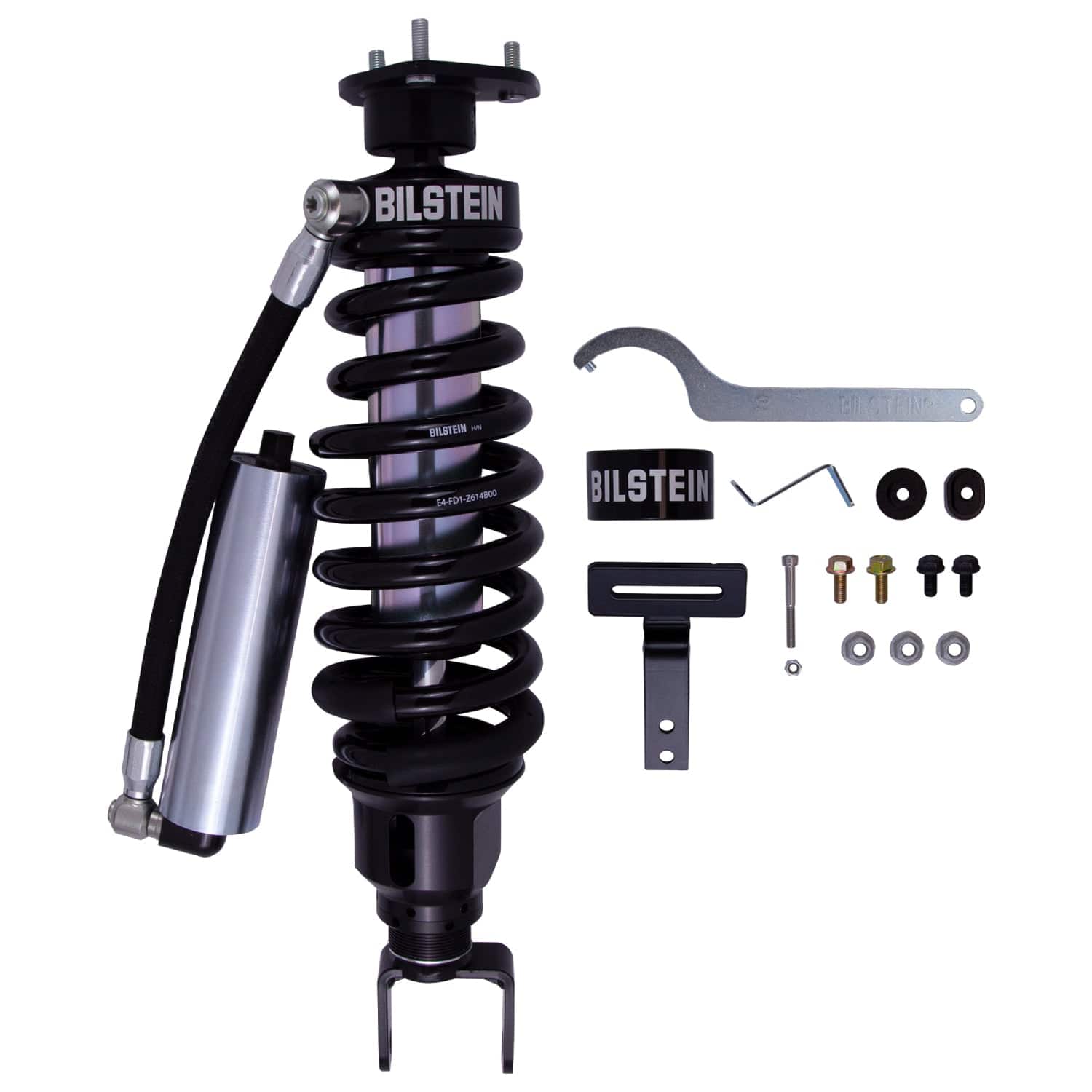

Bilstein B8 8112 (ZoneControl CR) Front Left Shock Absorber and Coil Spring Assembly (22.39 in. Extended) for 2019-2024 Ram 1500 RWD 41-242513
Bilstein B8 8112 (ZoneControl CR) Front Left Shock Absorber and Coil Spring Assembly for 2019-2024 Ram 1500 RWD - 22.39 in. Extended 41-242513
Bilstein B8 8112 (ZoneControl CR) Front Left Shock Absorber and Coil Spring Assembly for 2019-2024 Ram 1500 RWD - 22.39 in. Extended 41-242513

Bilstein

|

SKU: 41-325247

Bilstein B8 8112 (ZoneControl CR) Front Left Shock Absorber and Coil Spring Assembly (22.39 in. Extended) for 2019-2024 Ram 1500 RWD

$1,328.00

MSRP $1,447.60 You save $119.60

Ask a question
4 in stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

The Bilstein B8 shock and spring assemblies are built for a 2019-2024 Ram 1500 that has been lifted or leveled, valved for the taller ride height rather than fighting it.

Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.

Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-325247
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2019-2024 Ram 1500
Drivetrain RWD
UPC 651860866789
Front Lift Height 0.6 - 1.9 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 16.90 in. (429.3 mm)
Damping Adjustable No
Extended Length 22.39 in. (562.8 mm)
Finish Dampers: Zinc Plated / Springs: Black
Internal Design Monotube
Lower Mount Type Clevis
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Without Air Leveling Suspension
Vehicle Fitment
  • 2019 Ram 1500 RWD
  • 2020 Ram 1500 RWD
  • 2021 Ram 1500 RWD
  • 2022 Ram 1500 RWD
  • 2023 Ram 1500 RWD
  • 2024 Ram 1500 RWD
