Product Details

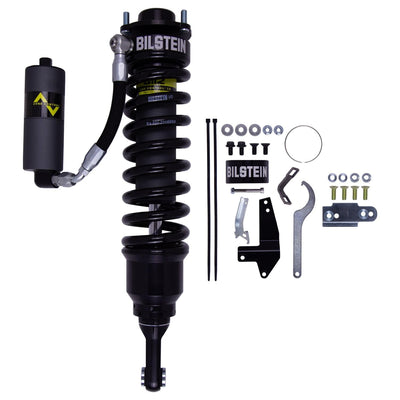

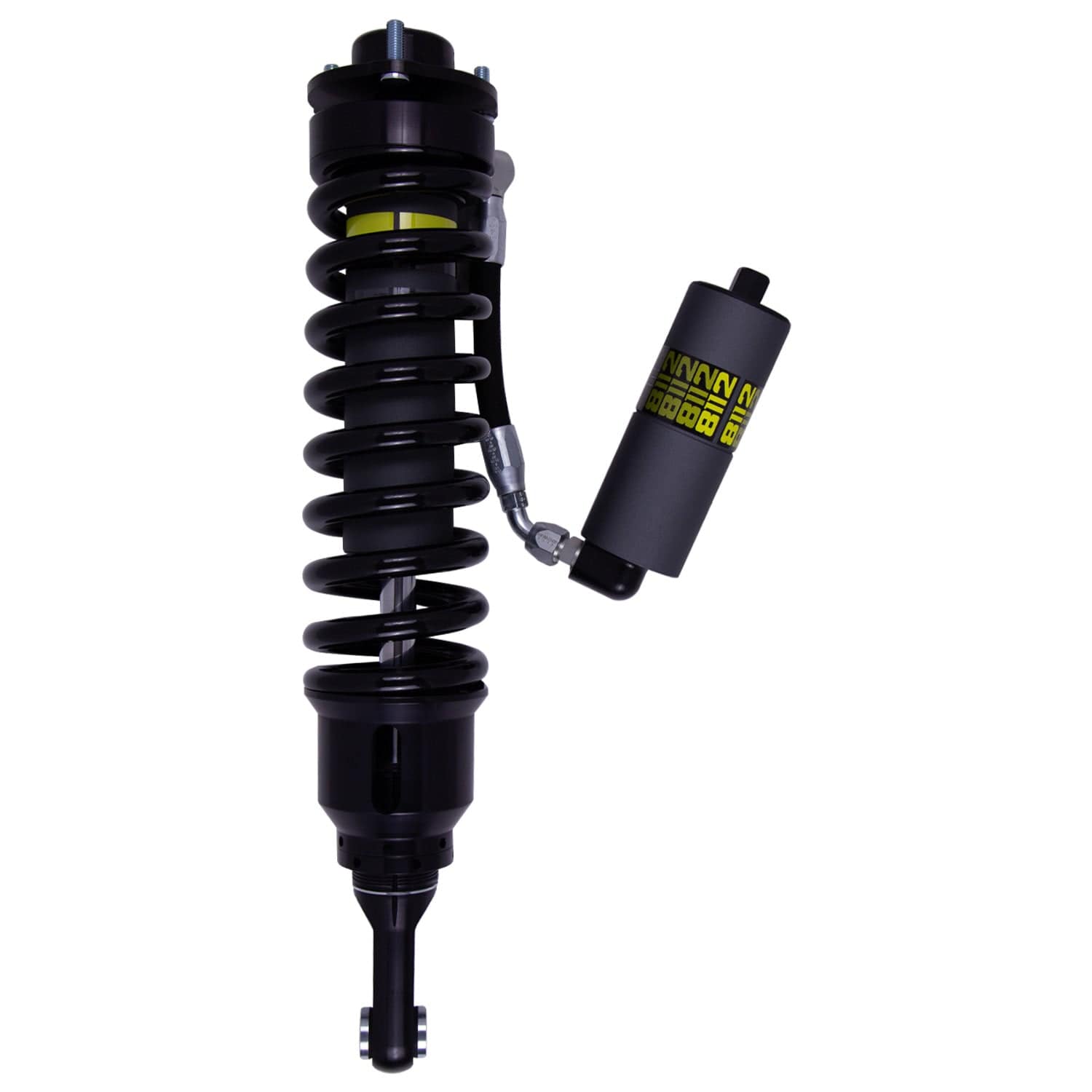

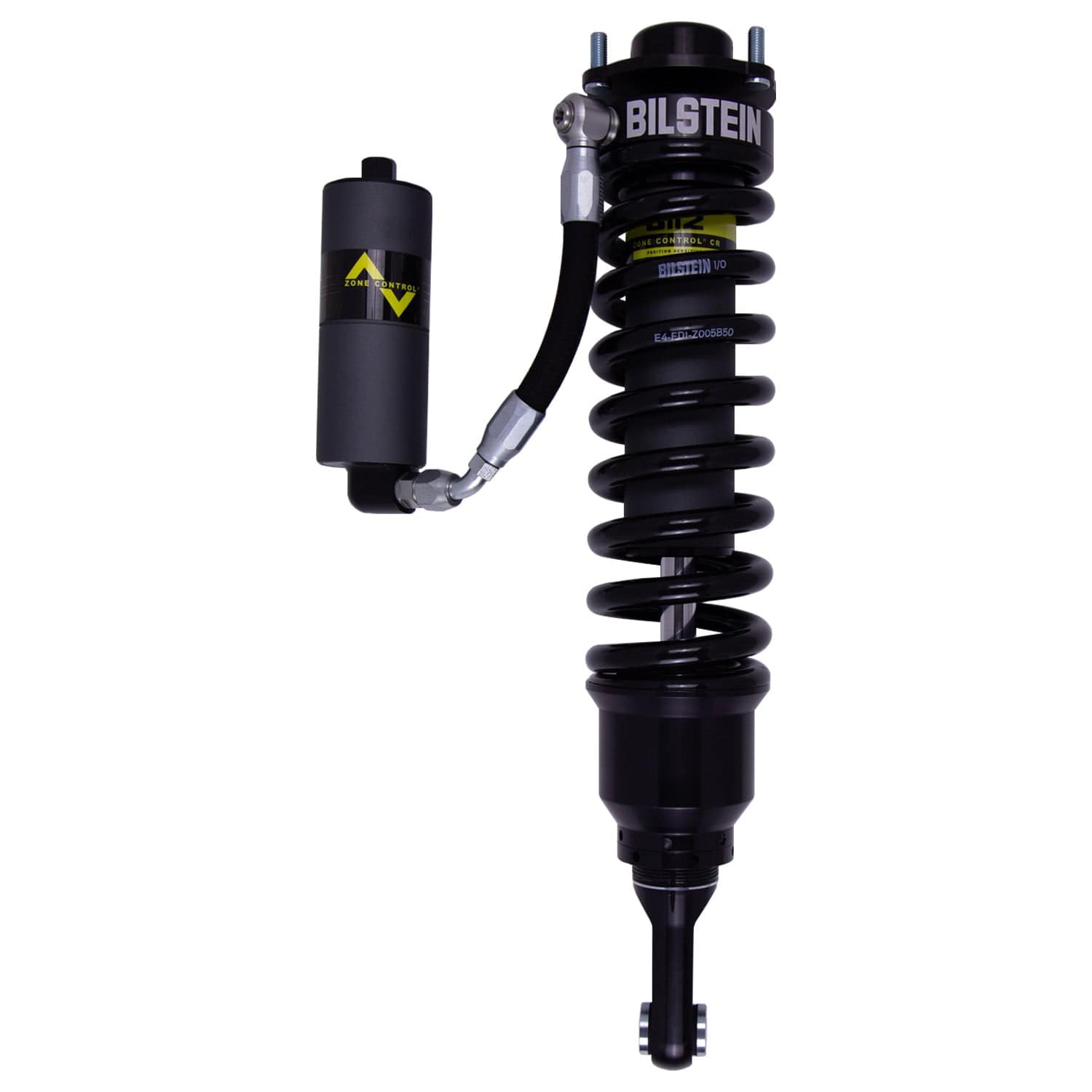

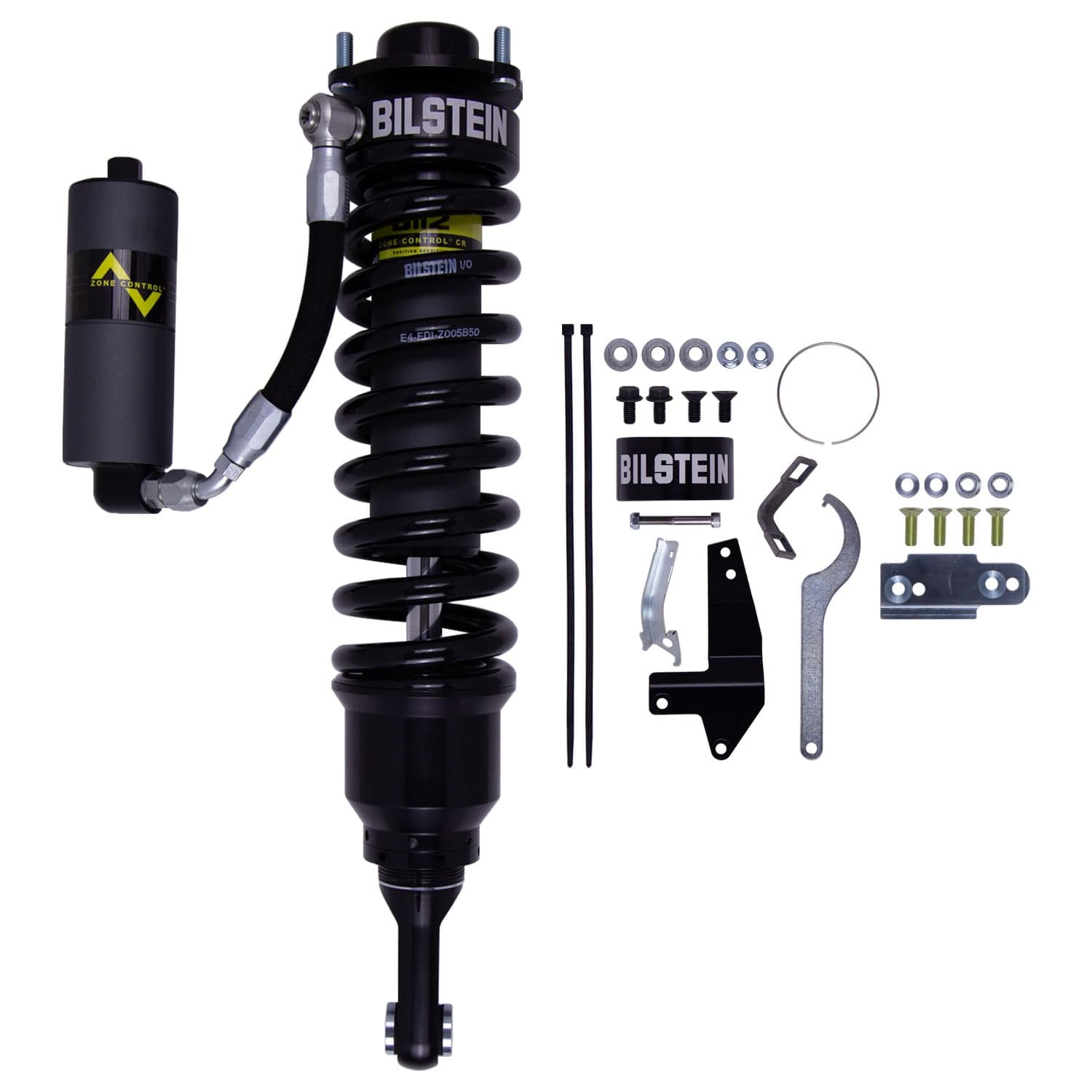

Lifting or leveling a 2007-2009 Toyota FJ Cruiser changes what the dampers have to do. The Bilstein B8 shock and spring assemblies are built for that taller stance and stay composed on rough ground.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326329 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2007-2009 Toyota FJ Cruiser |
| Drivetrain | 4WD |
| UPC | 651860916750 |
| Front Lift Height | 1.3 - 3.4 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. (456.9 mm) |
| Damping Adjustable | No |
| Extended Length | 22.80 in. (579.1 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without X-REAS Suspension |
Vehicle Fitment
- 2007 Toyota FJ Cruiser 4WD
- 2008 Toyota FJ Cruiser 4WD
- 2009 Toyota FJ Cruiser 4WD
