Product Details

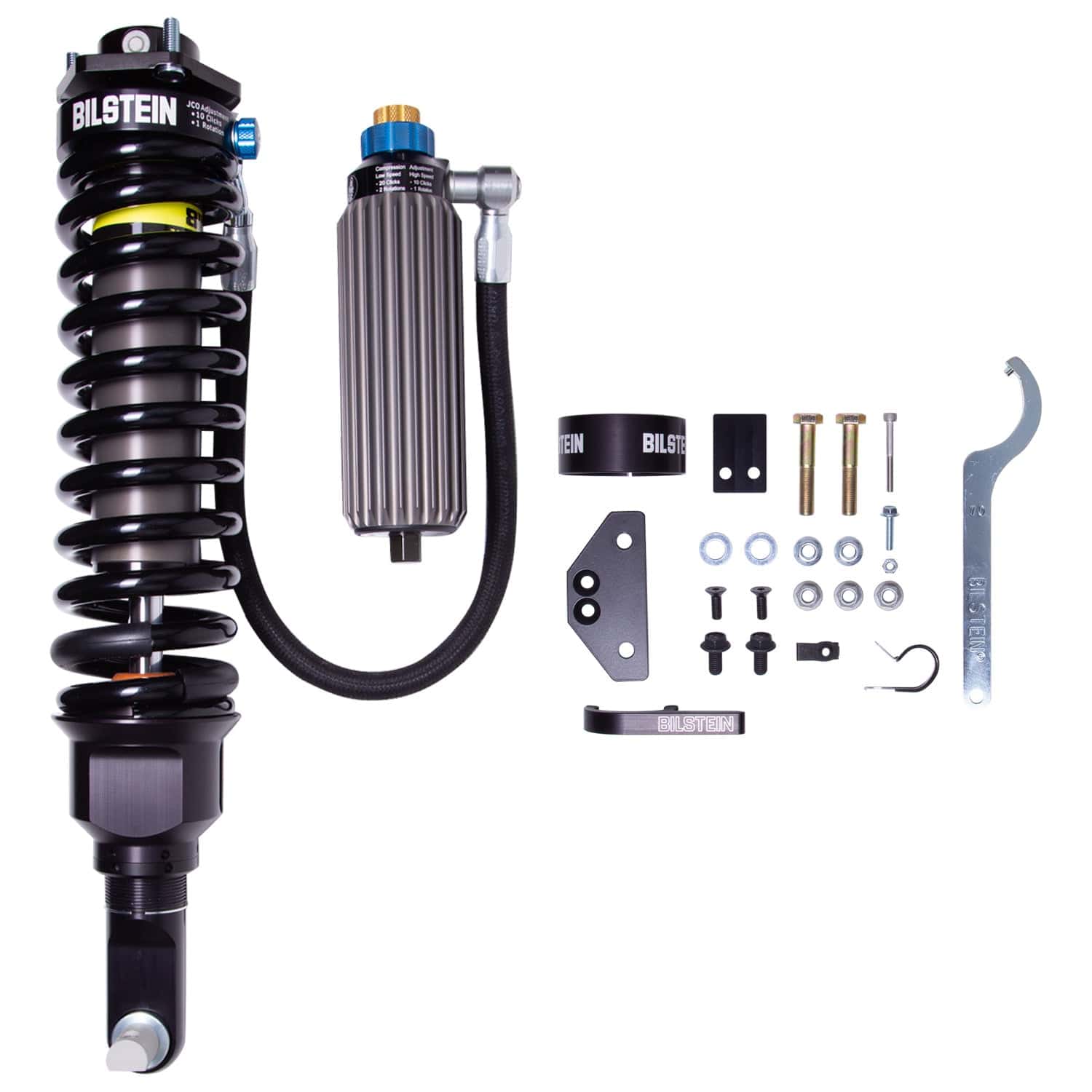

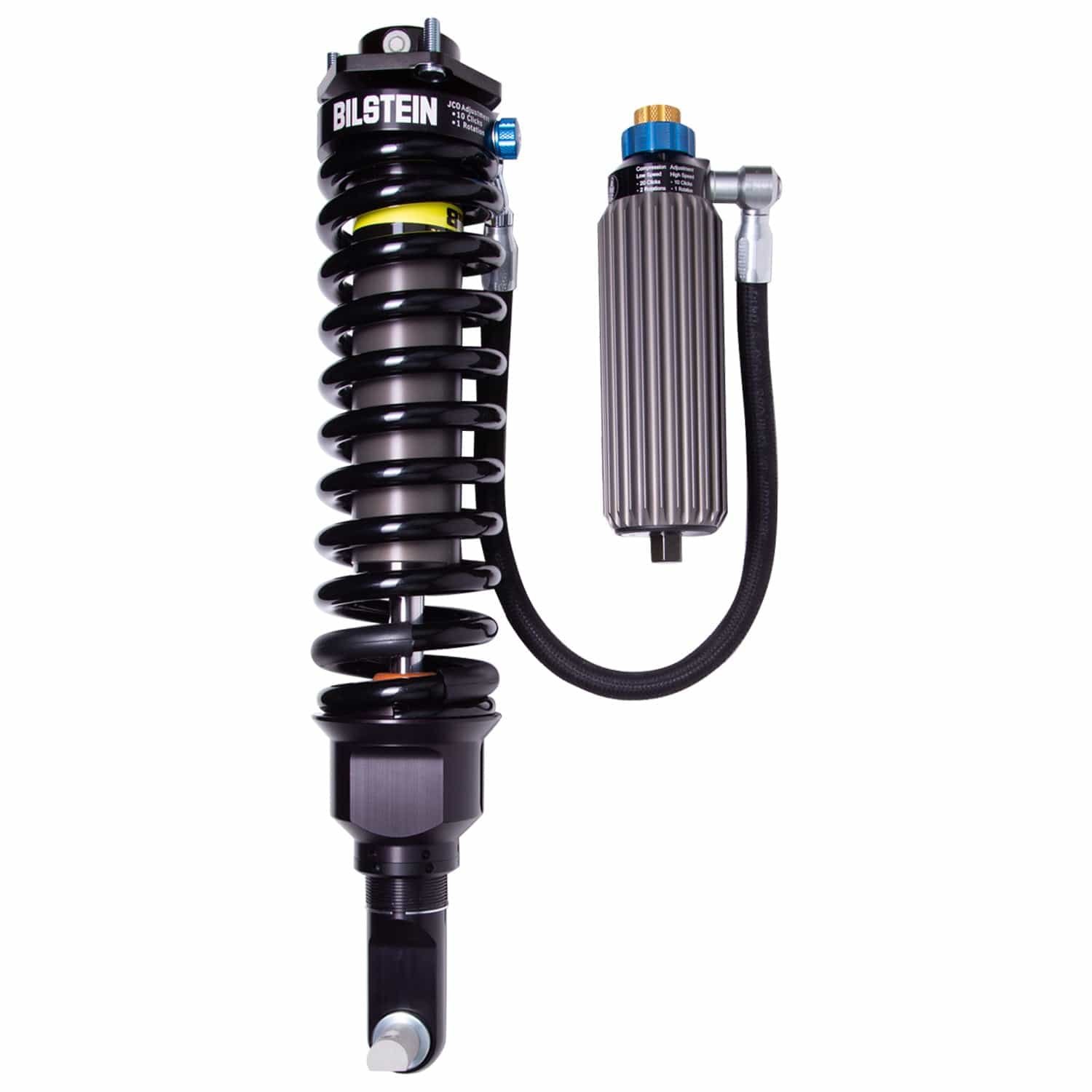

The Bilstein B8 shock and spring assemblies are built for a 2021-2026 Ford Bronco (U725) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

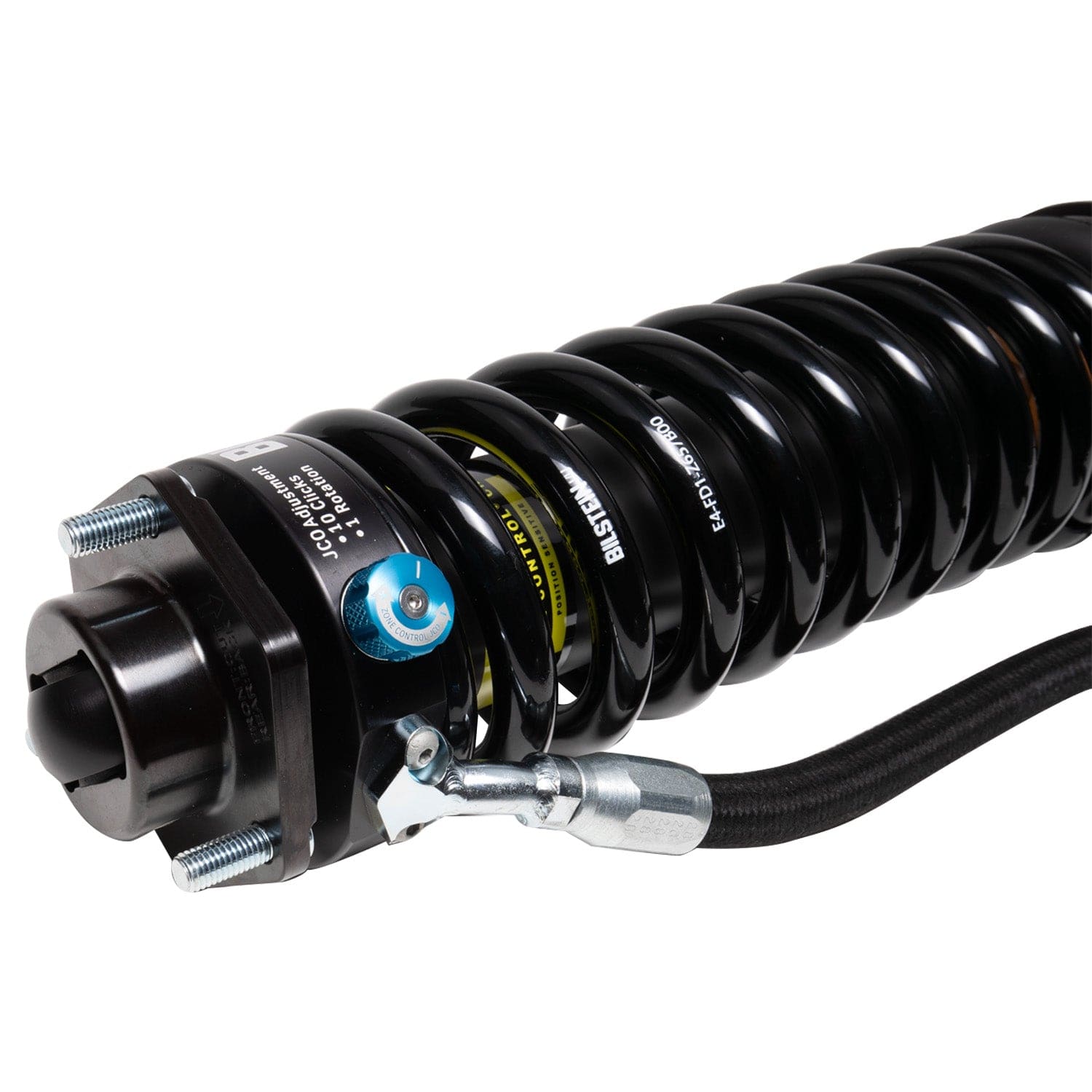

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)

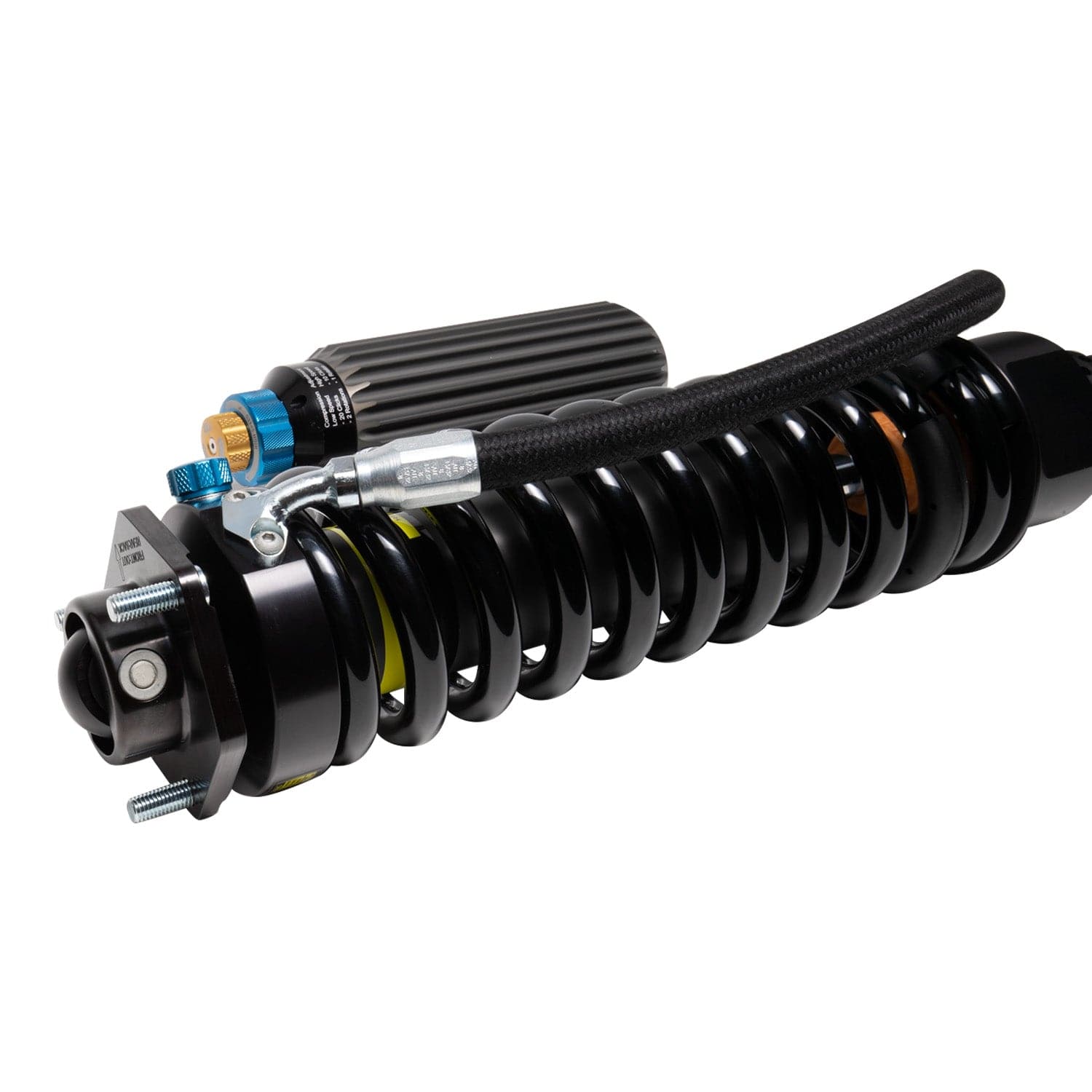

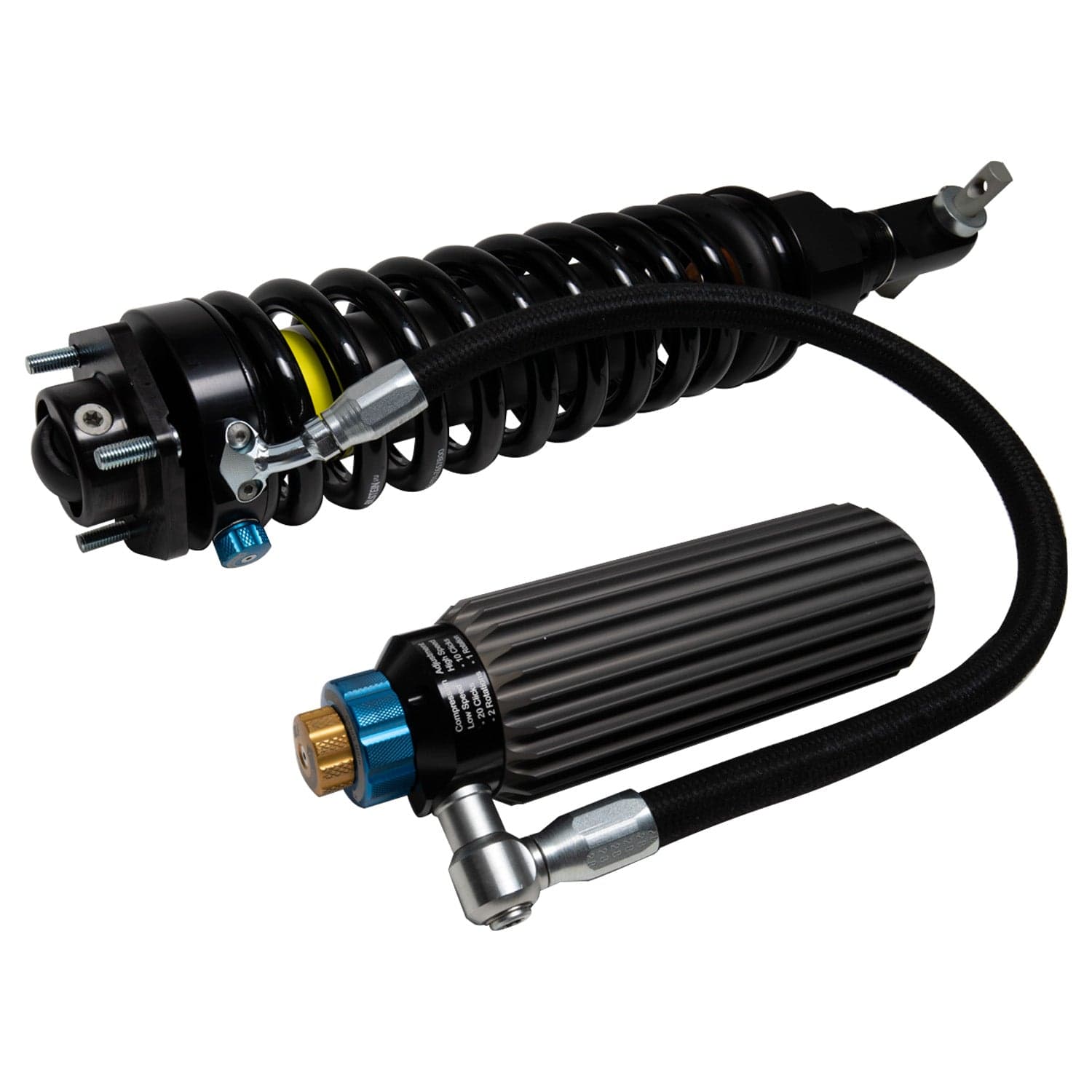

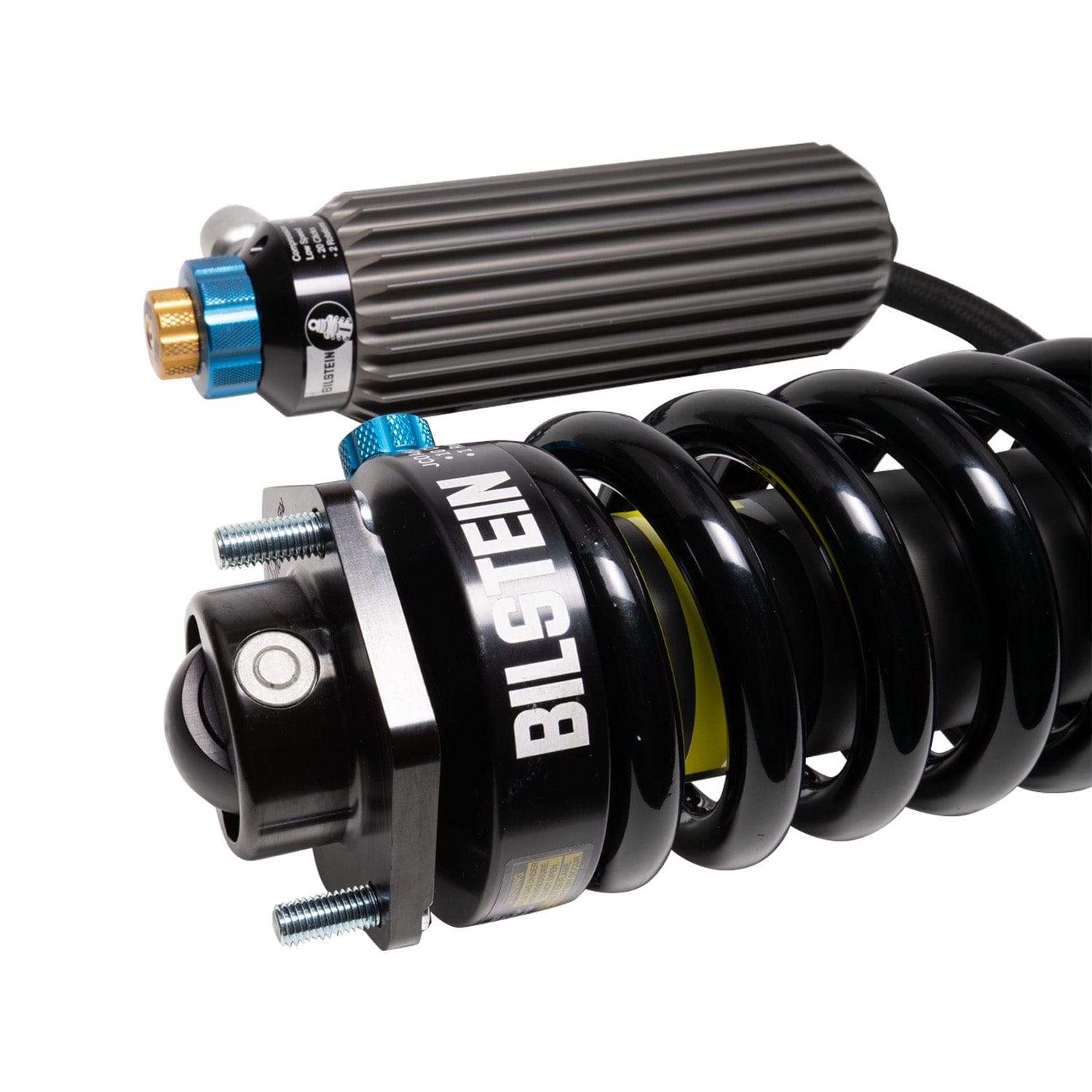

- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-314227 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2021-2026 Ford Bronco |
| Chassis Code | U725 |
| Drivetrain | 4WD |
| UPC | 651860935881 |
| Front Lift Height | 0.7 - 2.0 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 17.59 in. (446.2 mm) |
| Damping Adjustable | Yes |
| Extended Length | 23.40 in. (594.7 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |

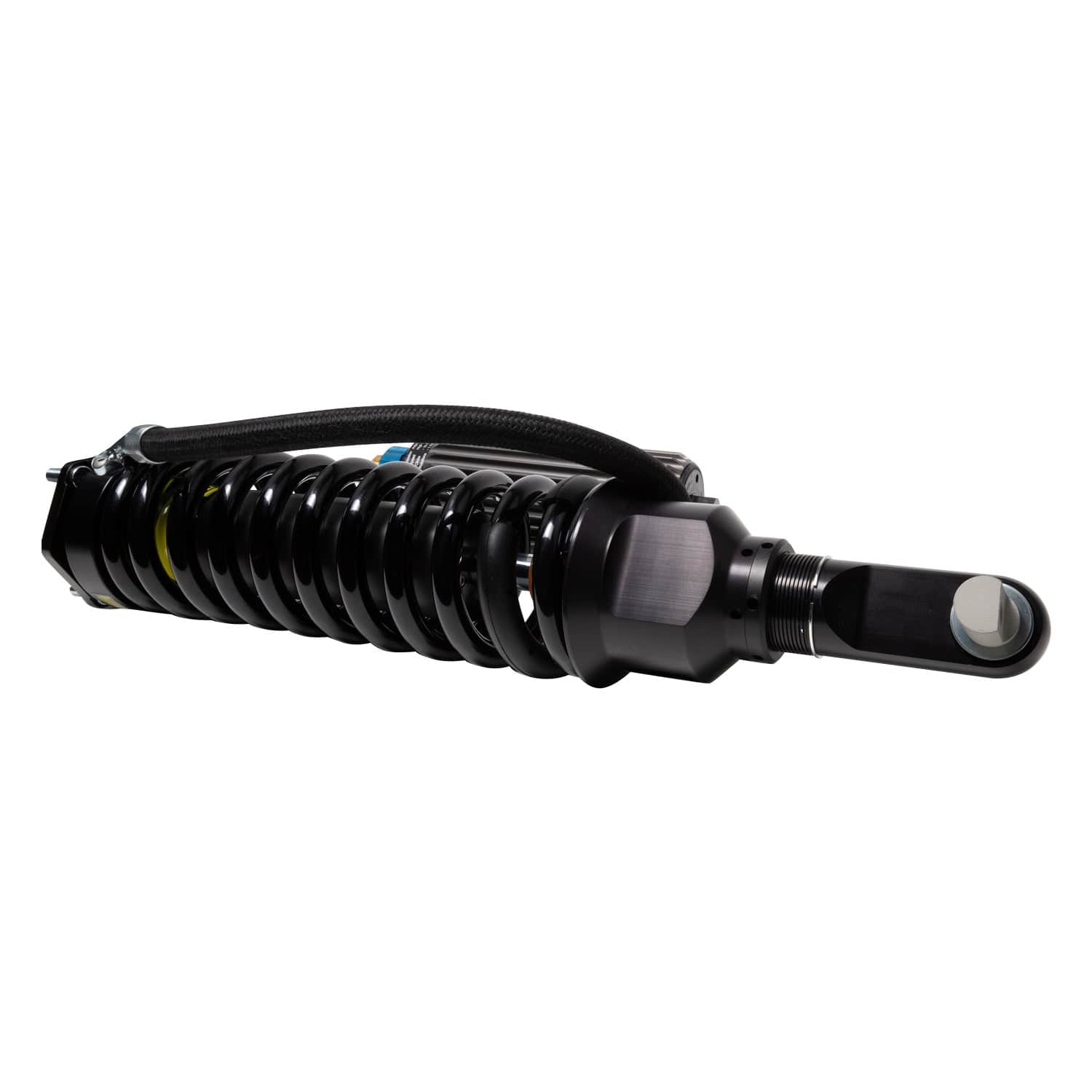

| Lower Mount Type | Crossbar |

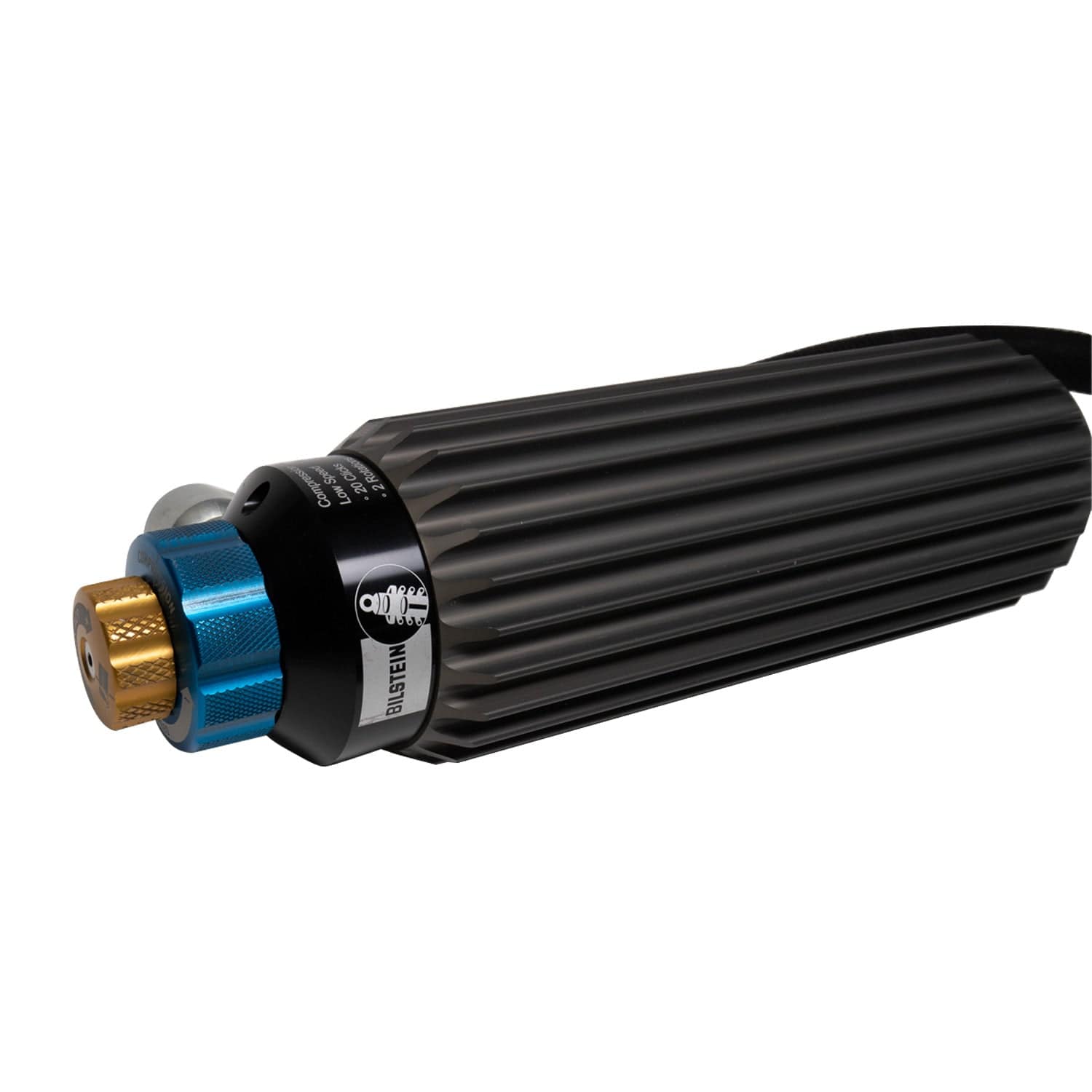

| Reservoir | Yes - Finned Aluminum |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
