Product Details

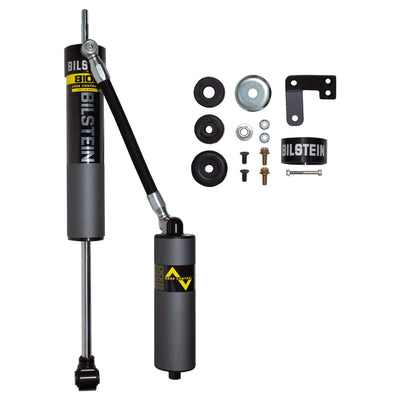

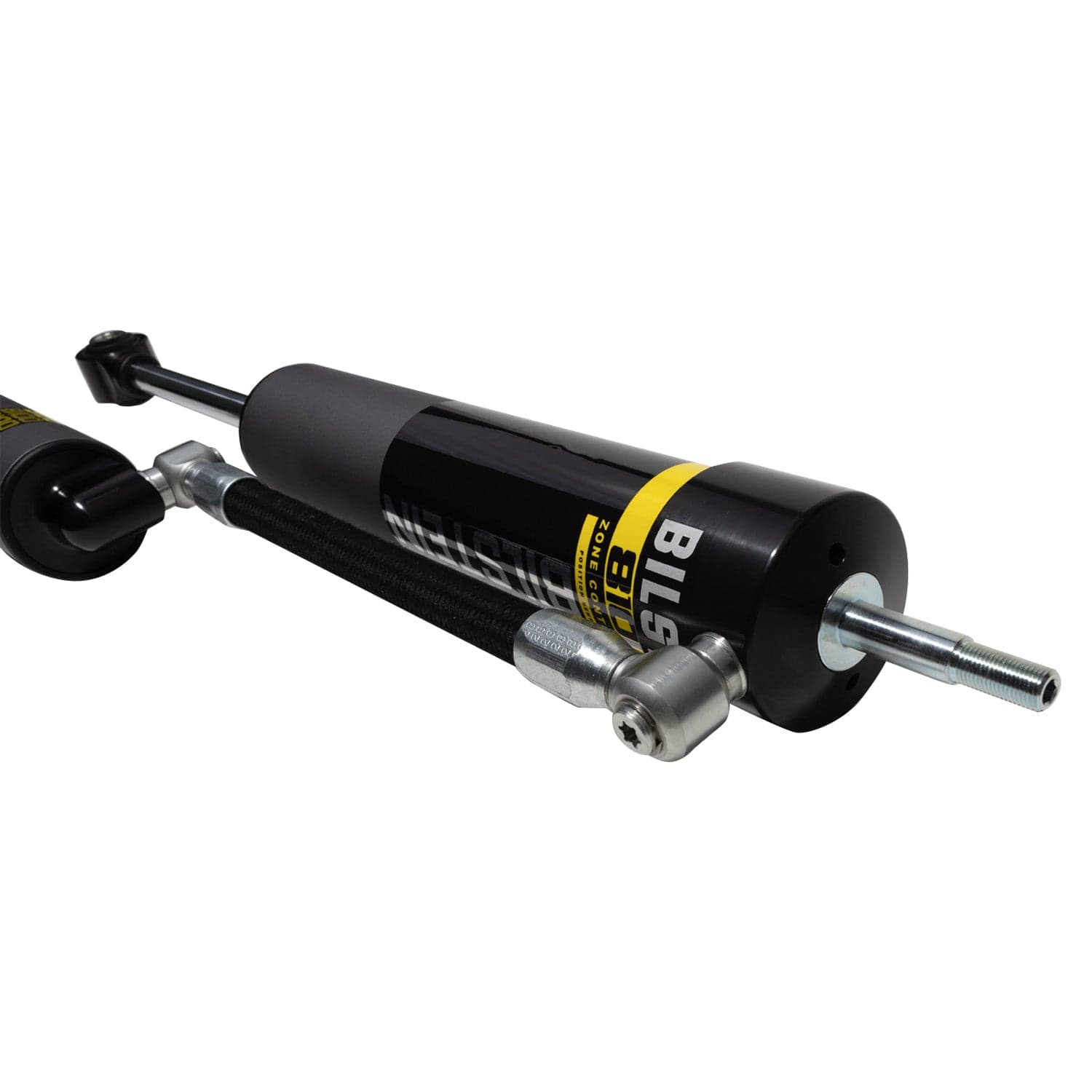

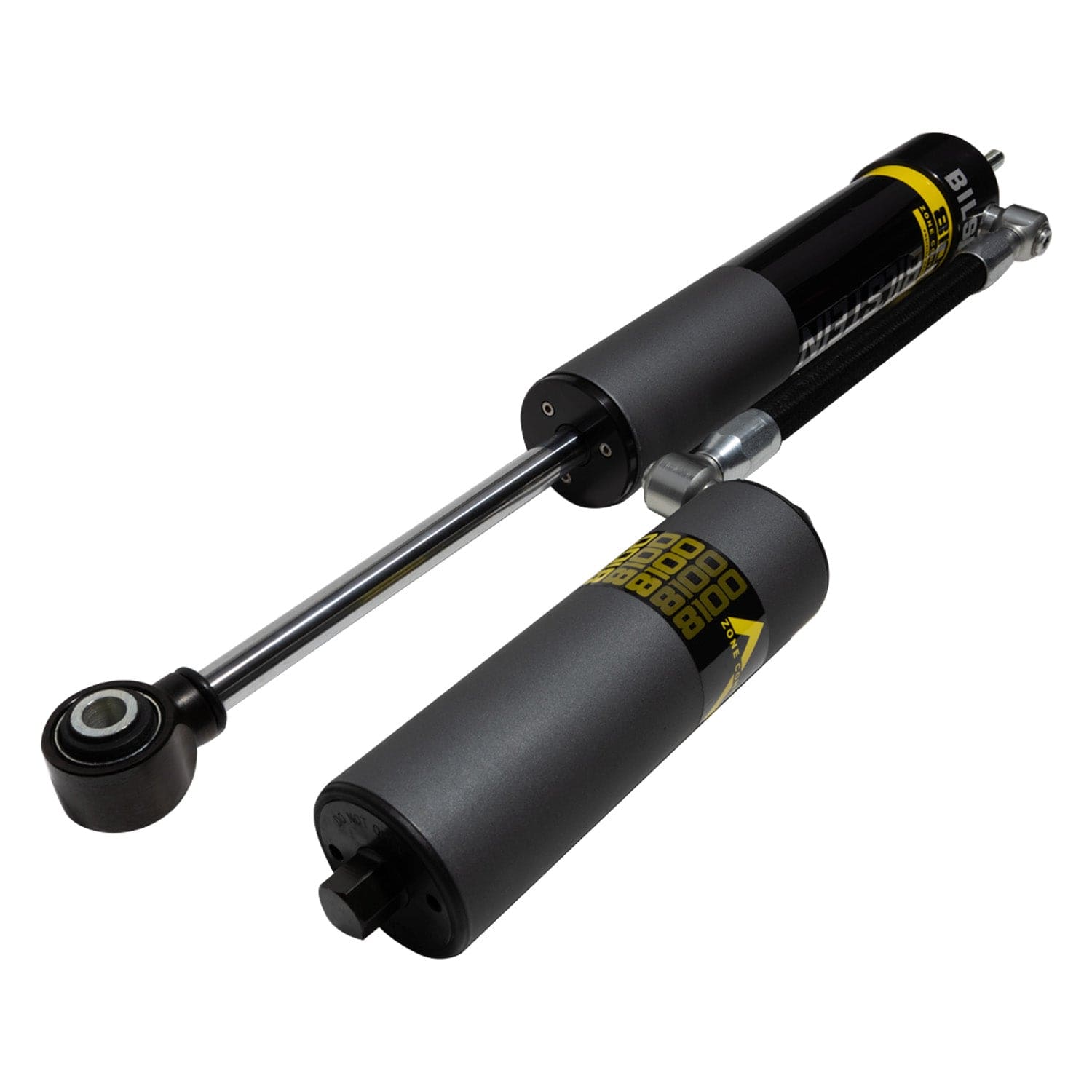

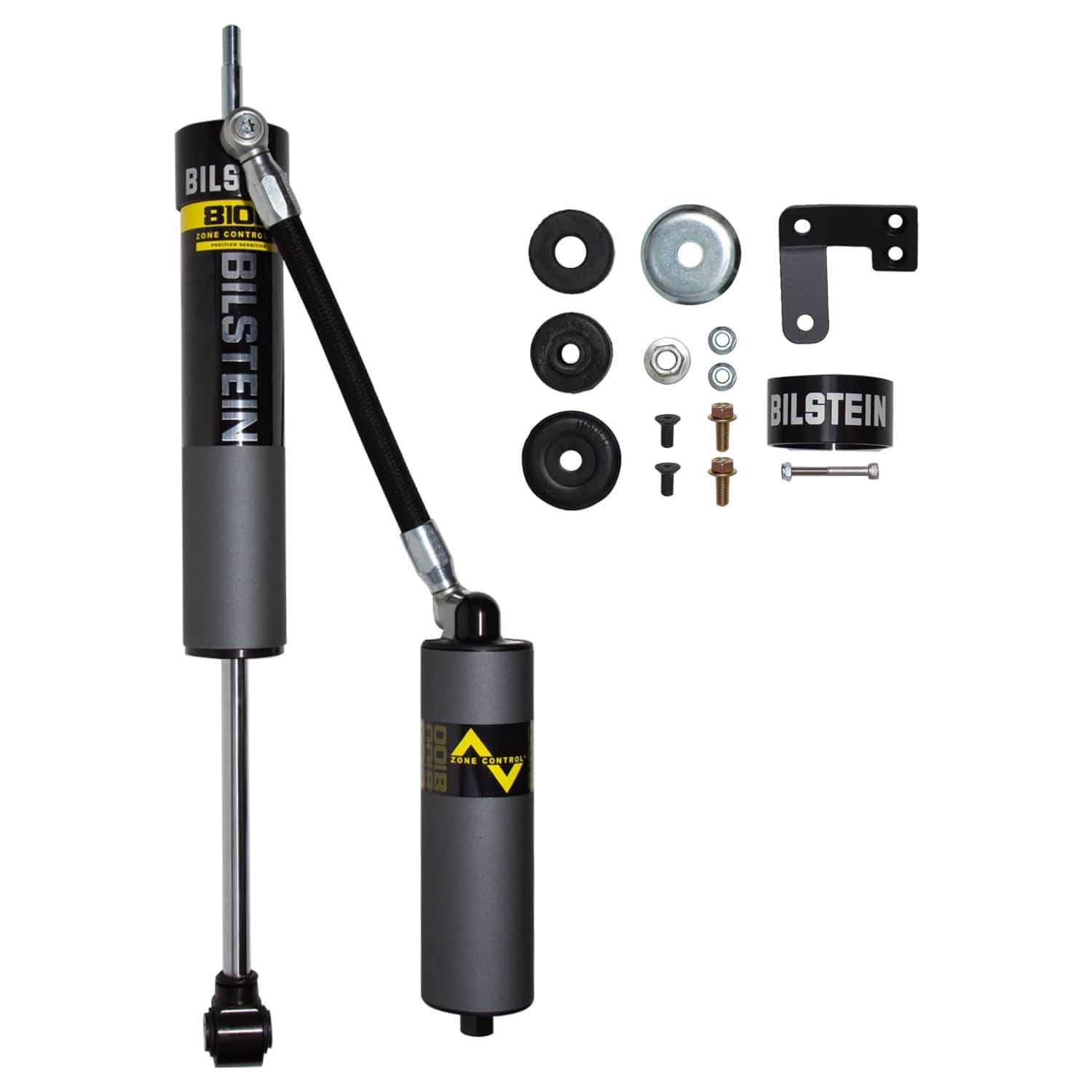

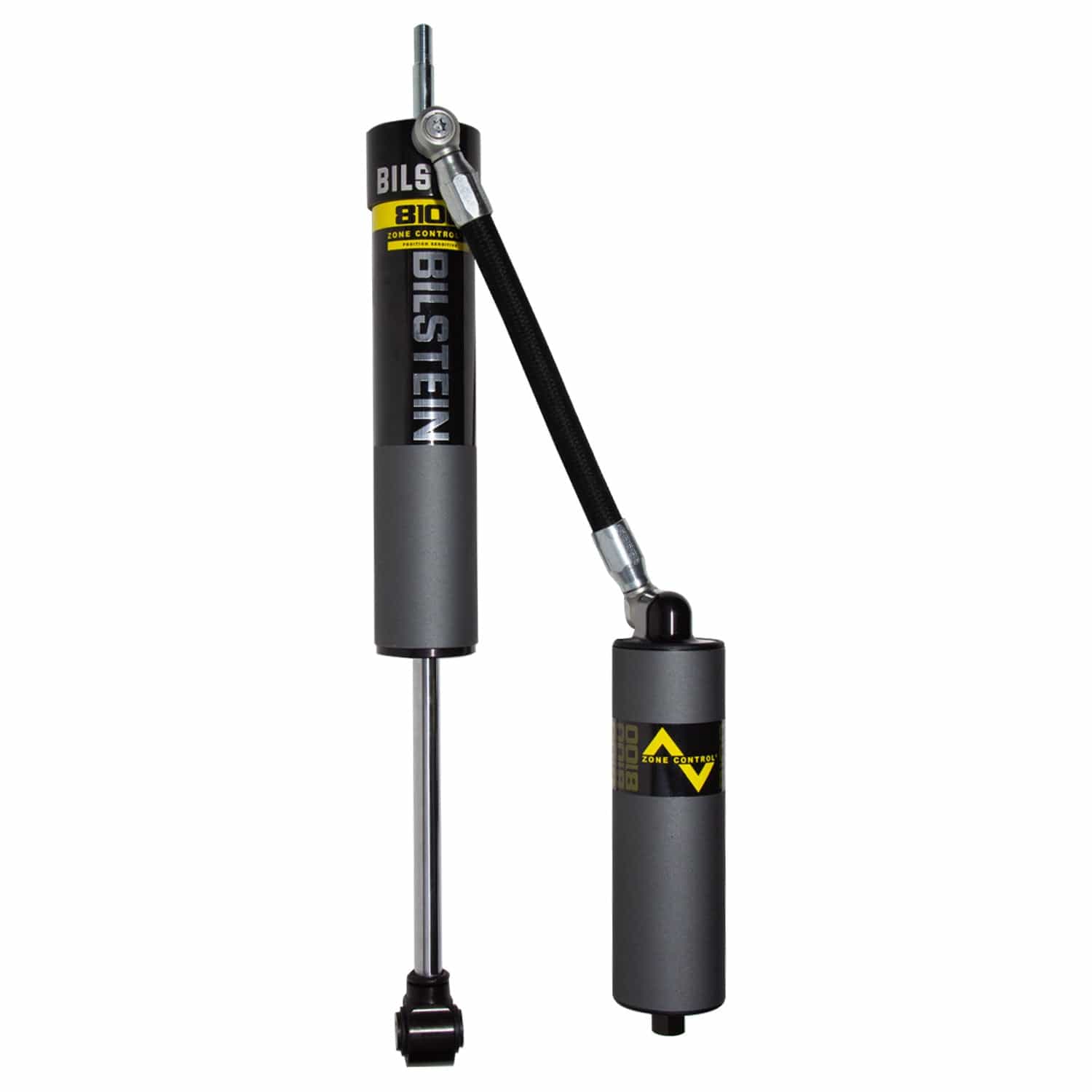

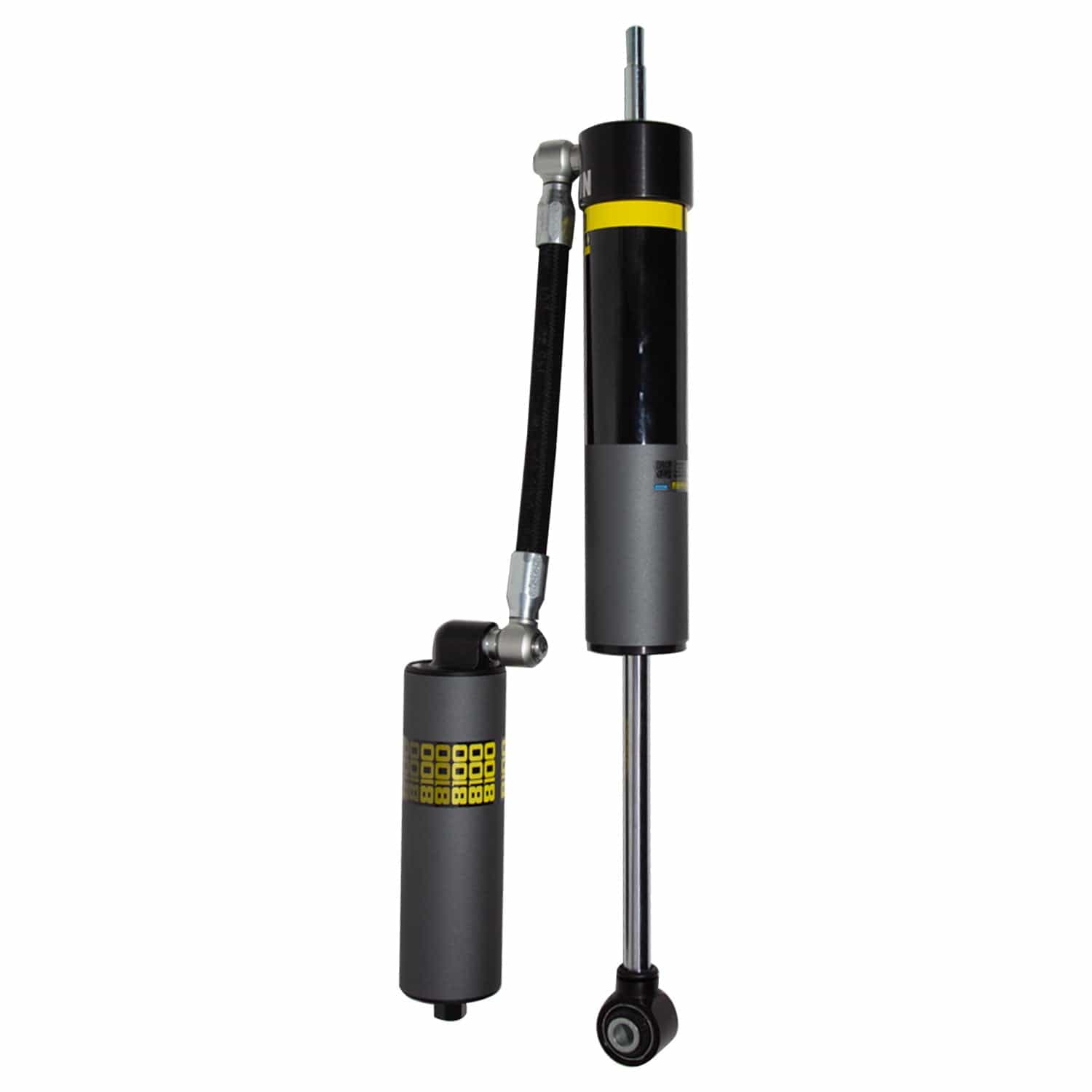

Lifting or leveling a 2019-2026 Ram 2500 (DS) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.

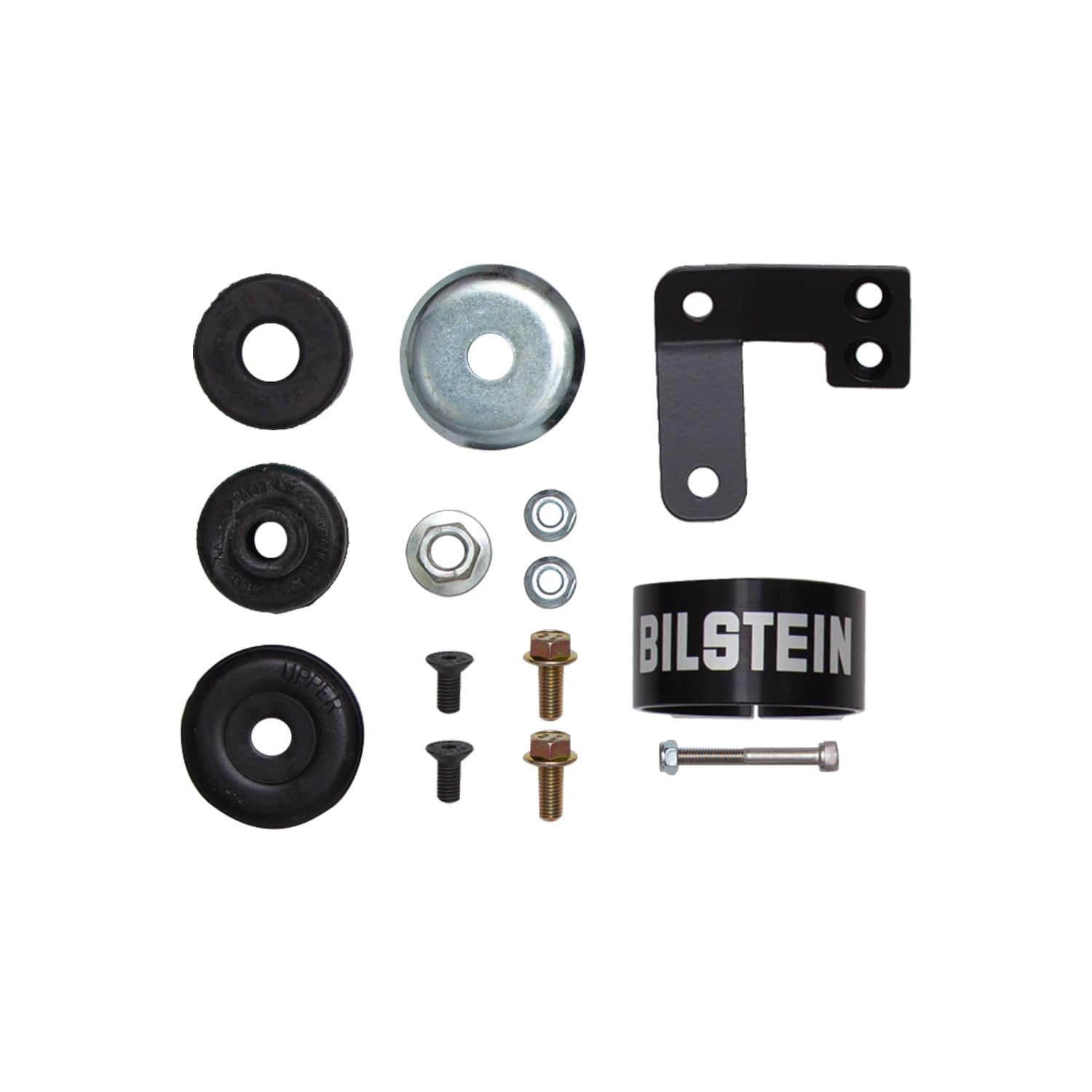

This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation

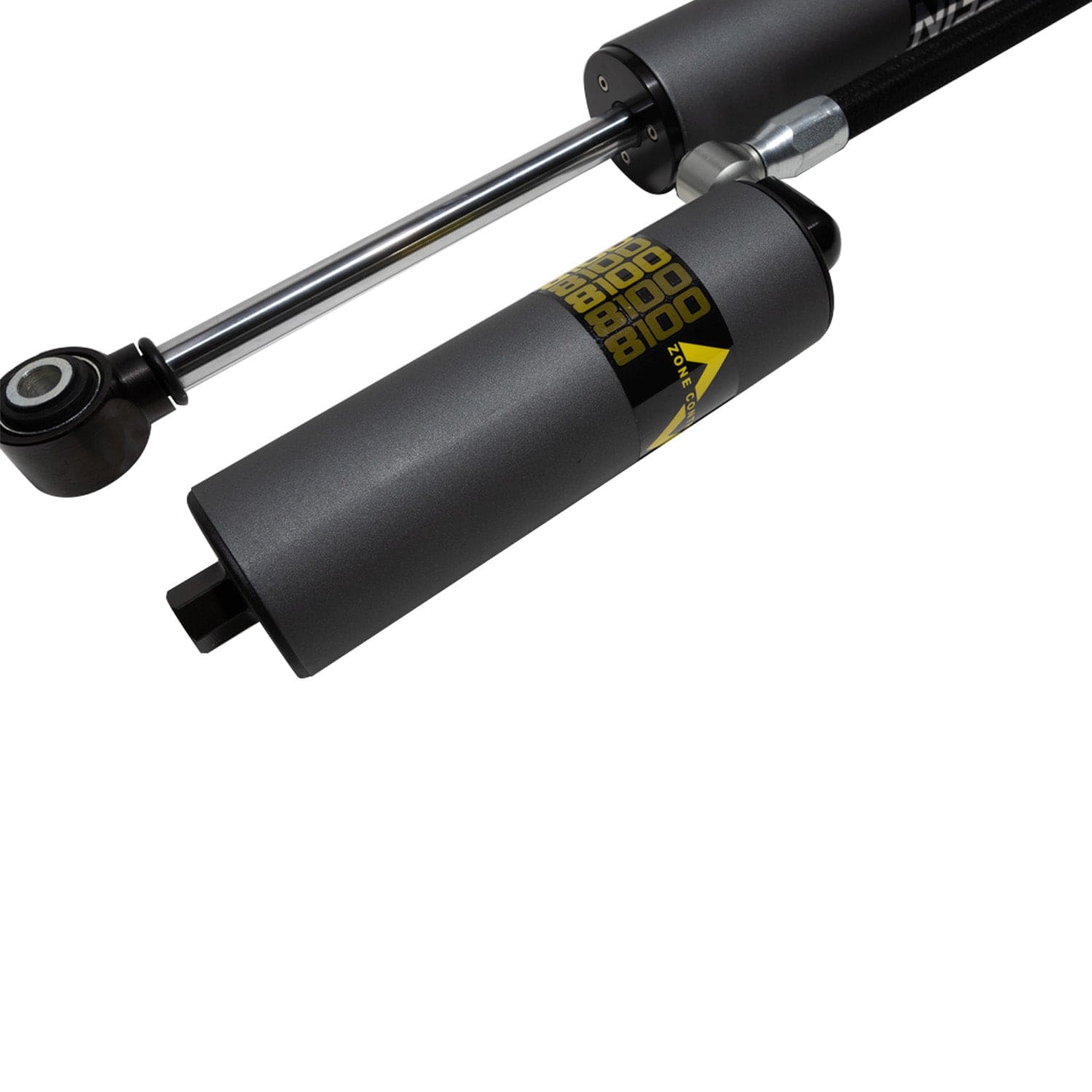

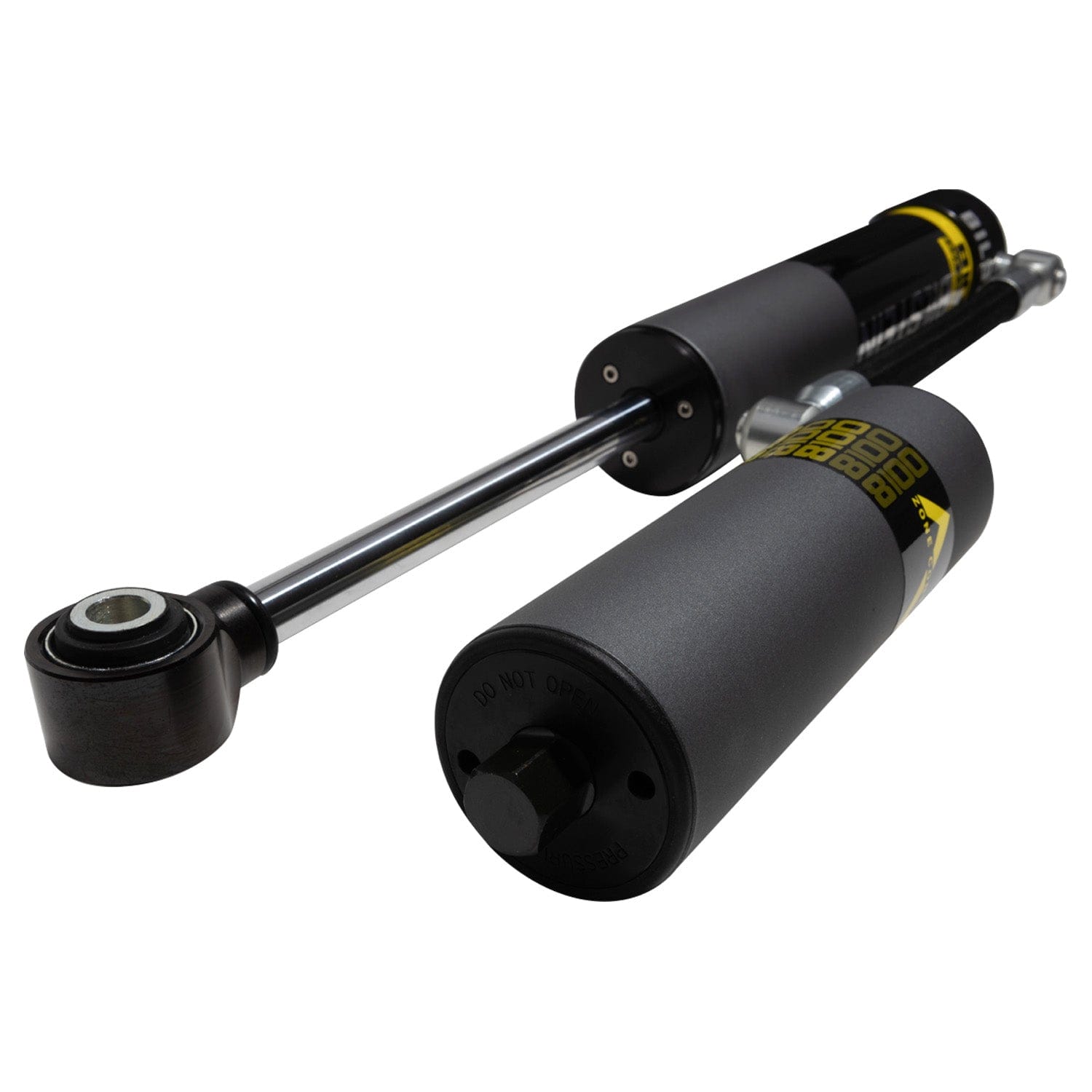

- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Part Number | 25-302226 |
| Part Name | Shock Absorber |
| Vehicle | 2019-2026 Ram 2500 |
| Chassis Code | DS |
| Drivetrain | 4WD |
| UPC | 651860911038 |
| Front Lift Height | 2 - 2.5 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 14.65 in. (372.2 mm) |
| Damping Adjustable | No |
| Extended Length | 22.99 in. (584.0 mm) |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (ZoneControl R) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine |
Vehicle Fitment
- 2019 Ram 2500 4WD (DS)
- 2020 Ram 2500 4WD (DS)
- 2021 Ram 2500 4WD (DS)
- 2022 Ram 2500 4WD (DS)
- 2023 Ram 2500 4WD (DS)
- 2024 Ram 2500 4WD (DS)
- 2025 Ram 2500 4WD (DS)
- 2026 Ram 2500 4WD (DS)
