Product Details

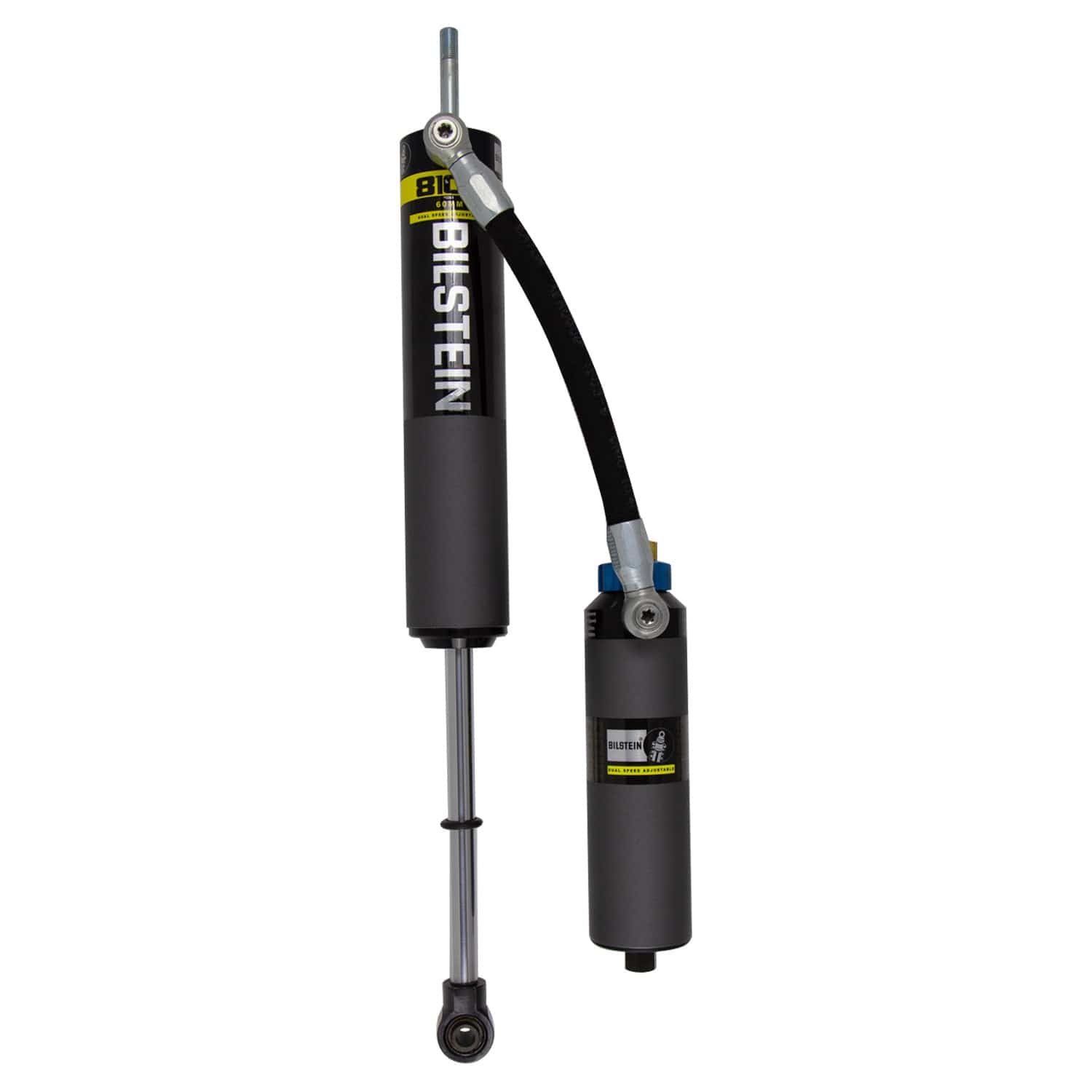

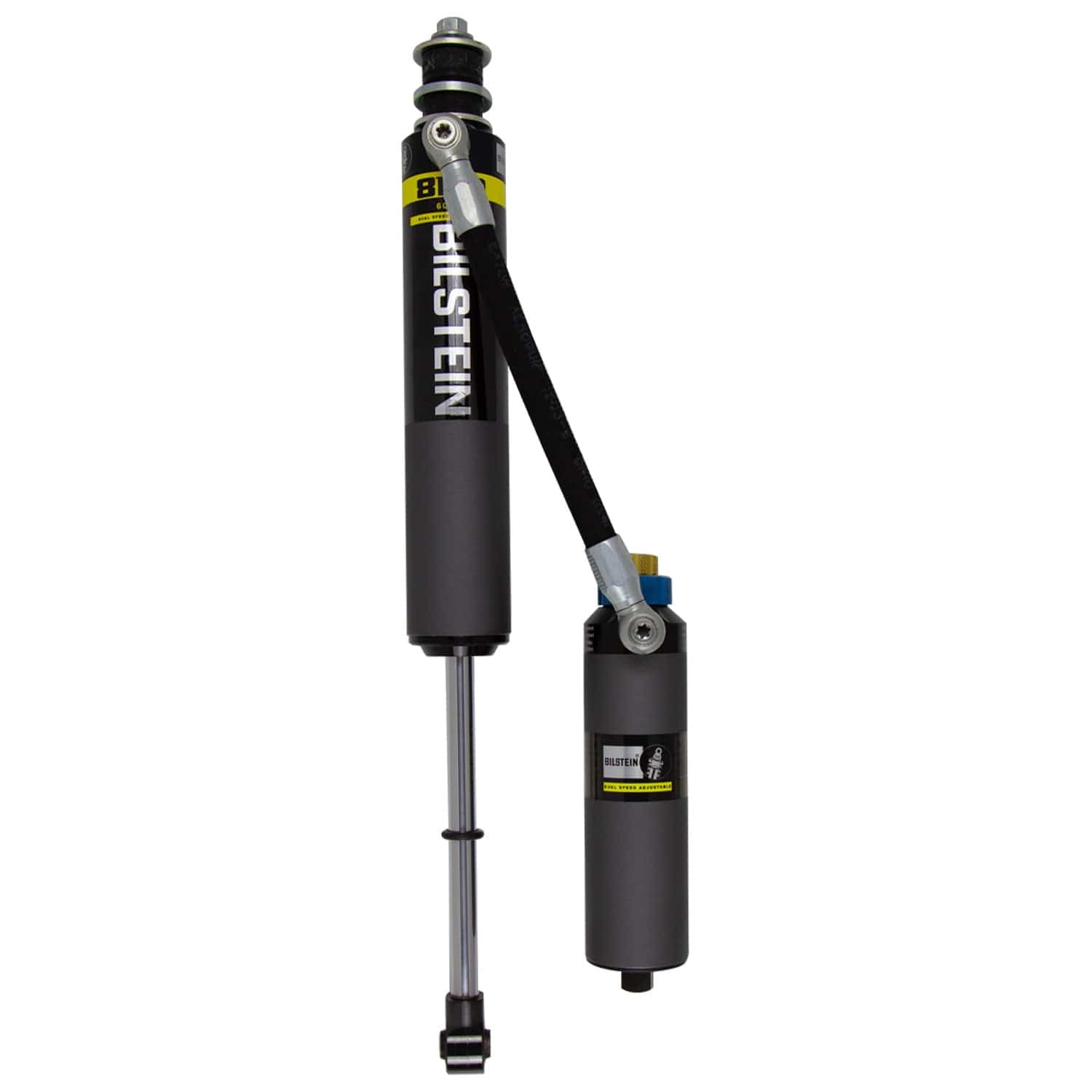

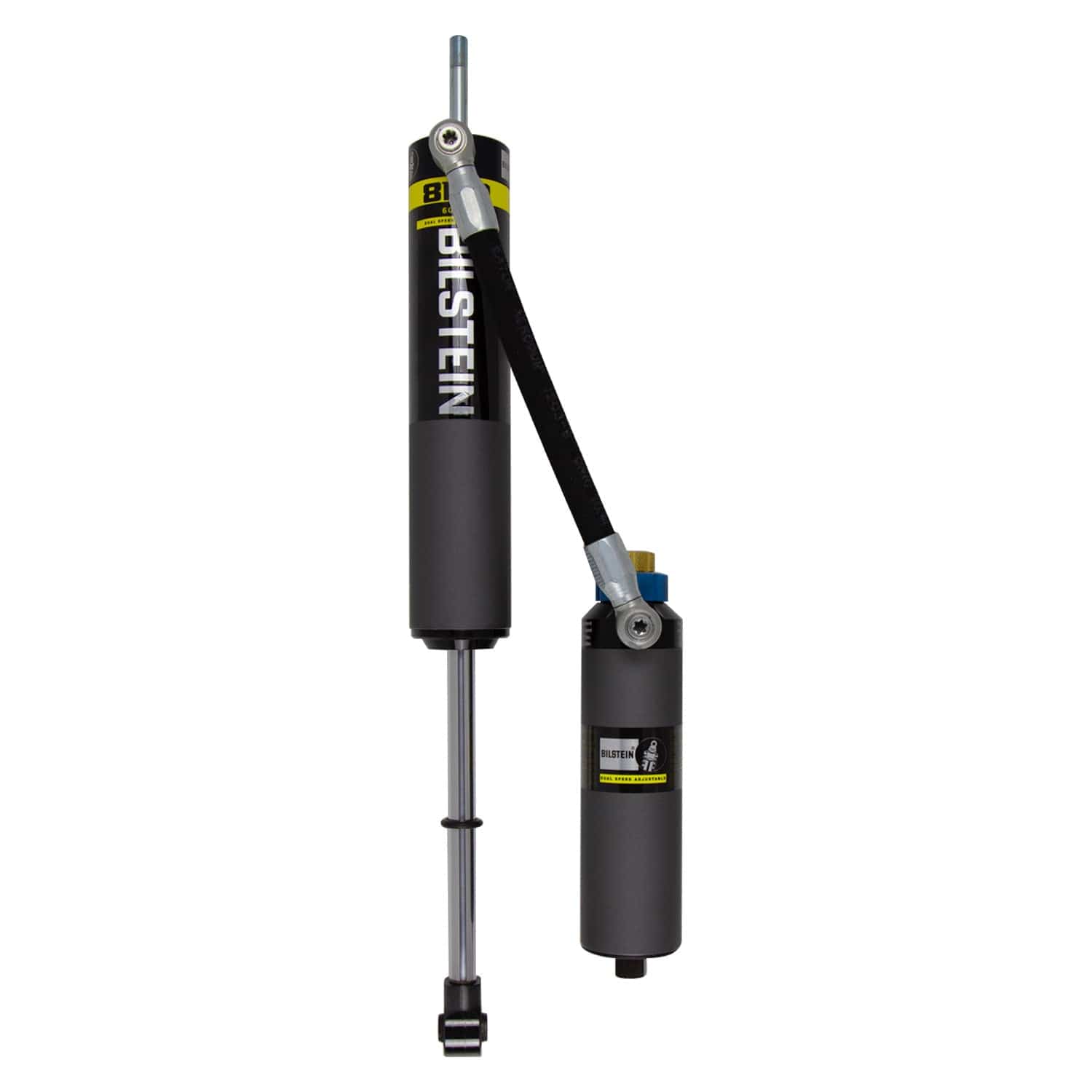

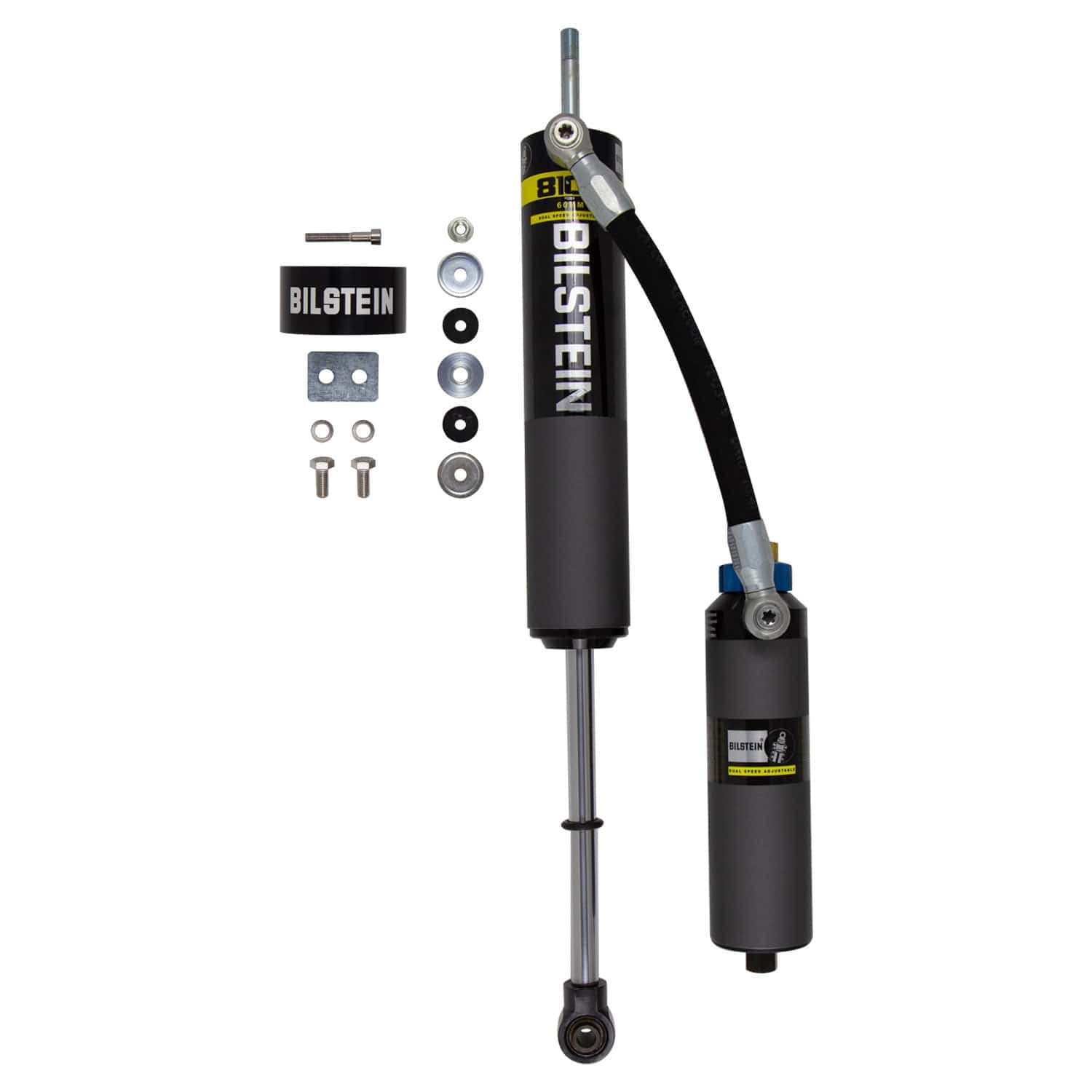

The Bilstein B8 8100 (DSA) Reservoir Shock Absorber for the 2005-2023 Toyota Tacoma is an adjustable large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation.
These Shock Absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation

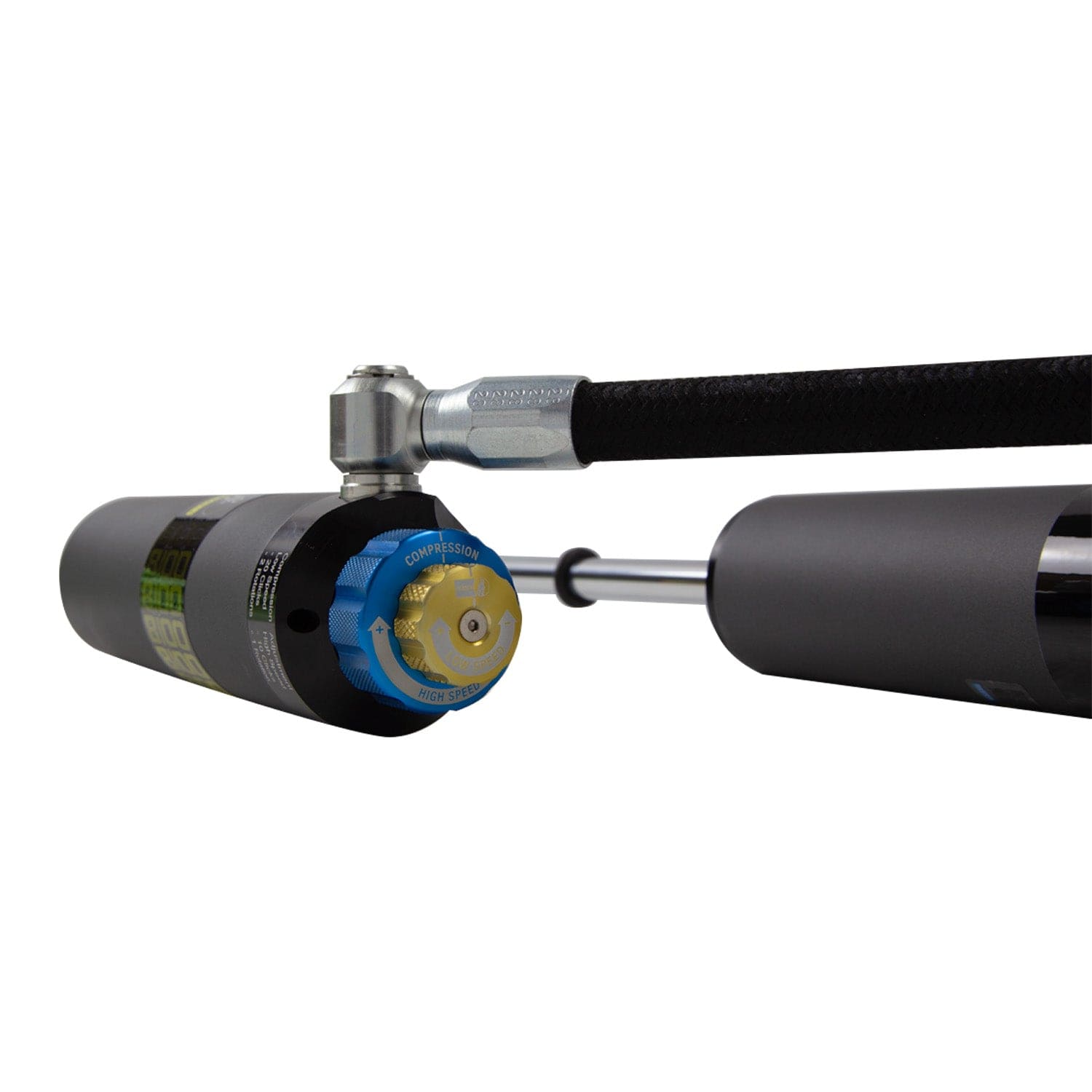

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
Specifications
| Part Number | 25-294071 |
| Part Name | Shock Absorber |
| Vehicle | 2005-2023 Toyota Tacoma |
| Drivetrain | RWD/4WD |
| UPC | 651860908168 |
| Rear Lift Height | 0 - 1.5 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 14.25 in. (362.0 mm) |
| Damping Adjustable | Yes |
| Extended Length | 22.80 in. (579.0 mm) |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (DSA) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Requires wheels with maximum of 4.75" backspacing |
Vehicle Fitment
- 2005 Toyota Tacoma RWD/4WD
- 2006 Toyota Tacoma RWD/4WD
- 2007 Toyota Tacoma RWD/4WD
- 2008 Toyota Tacoma RWD/4WD
- 2009 Toyota Tacoma RWD/4WD
- 2010 Toyota Tacoma RWD/4WD
- 2011 Toyota Tacoma RWD/4WD
- 2012 Toyota Tacoma RWD/4WD
- 2013 Toyota Tacoma RWD/4WD
- 2014 Toyota Tacoma RWD/4WD
- 2015 Toyota Tacoma RWD/4WD
- 2016 Toyota Tacoma RWD/4WD
- 2017 Toyota Tacoma RWD/4WD
- 2018 Toyota Tacoma RWD/4WD
- 2019 Toyota Tacoma RWD/4WD
- 2020 Toyota Tacoma RWD/4WD
- 2021 Toyota Tacoma RWD/4WD
- 2022 Toyota Tacoma RWD/4WD
- 2023 Toyota Tacoma RWD/4WD
