Product Details

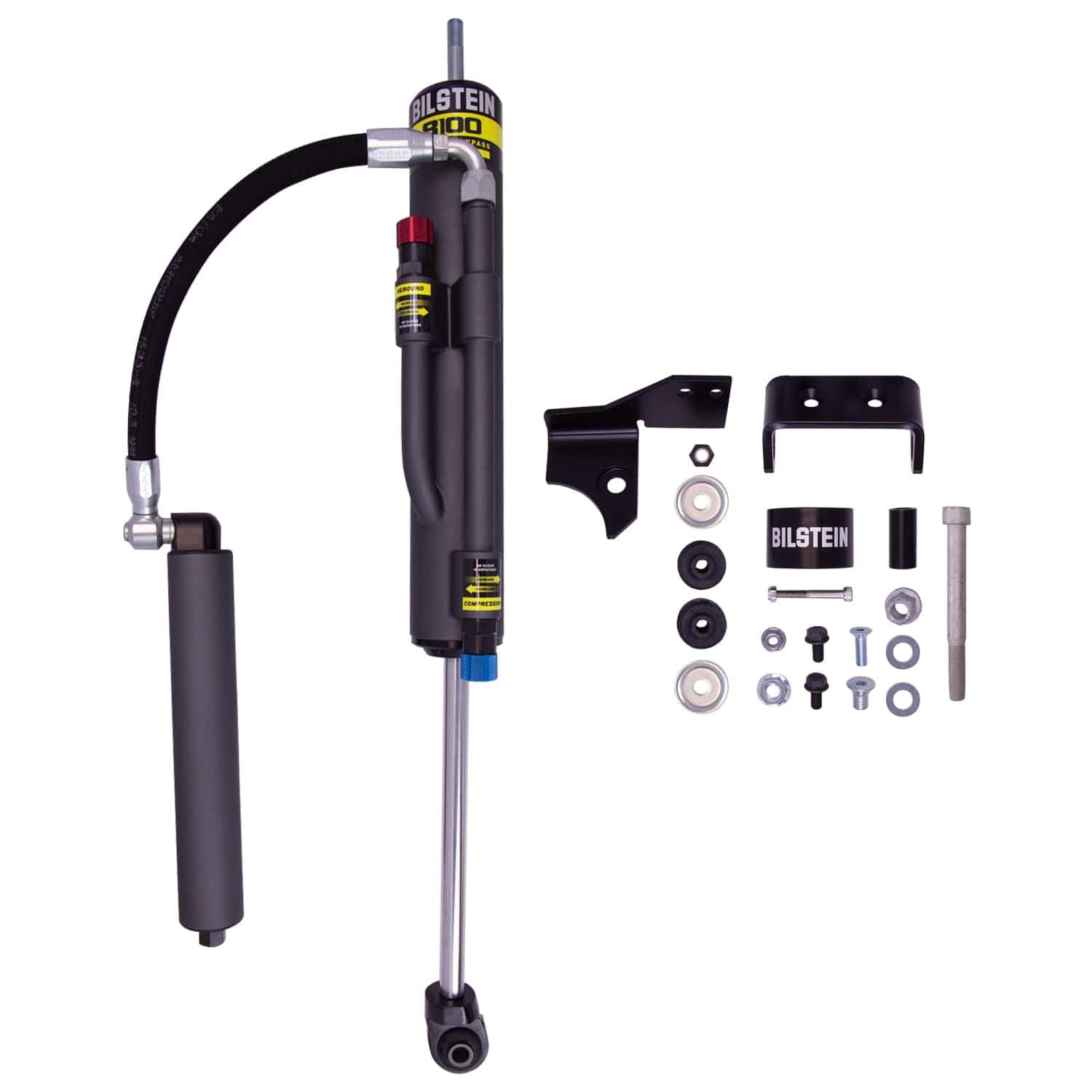

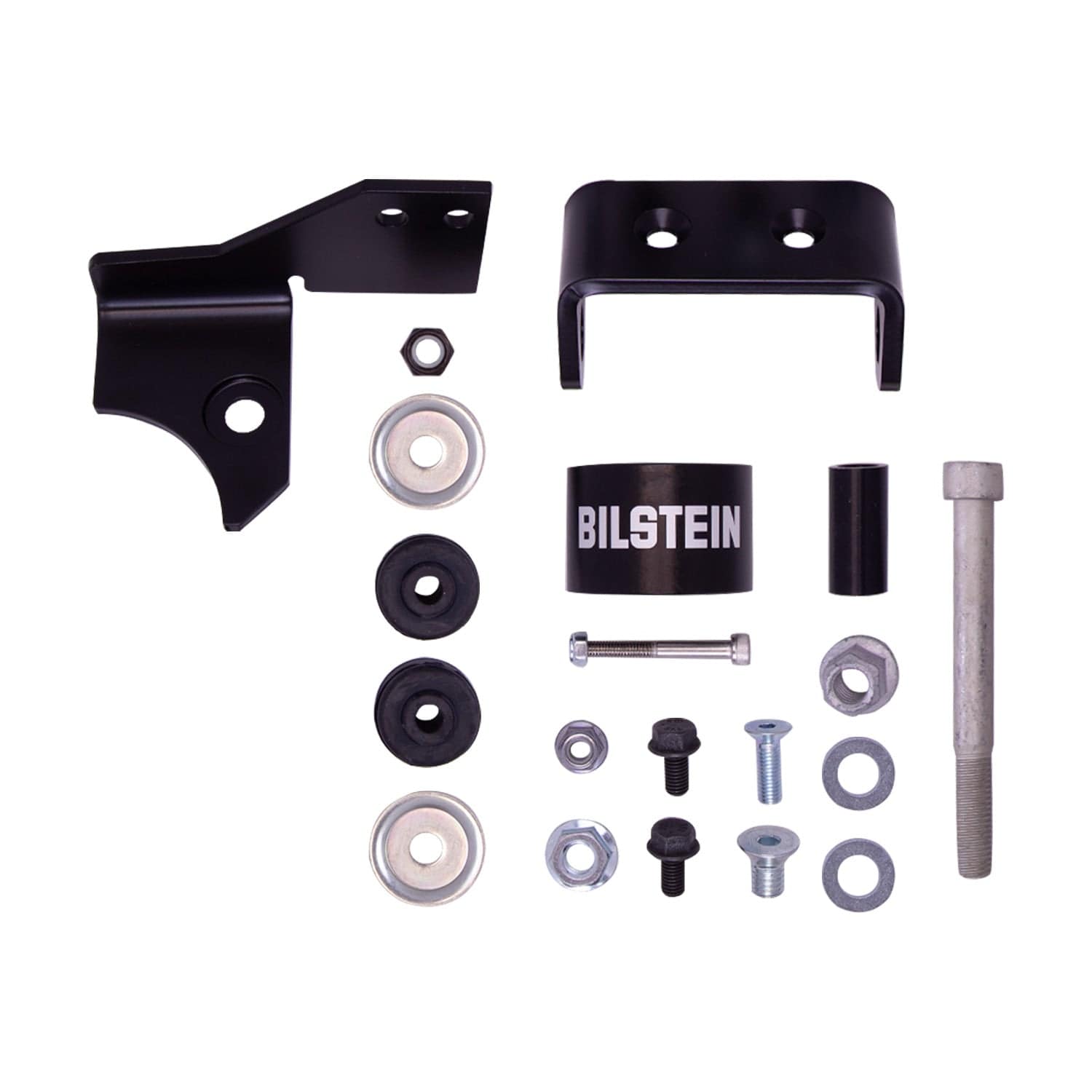

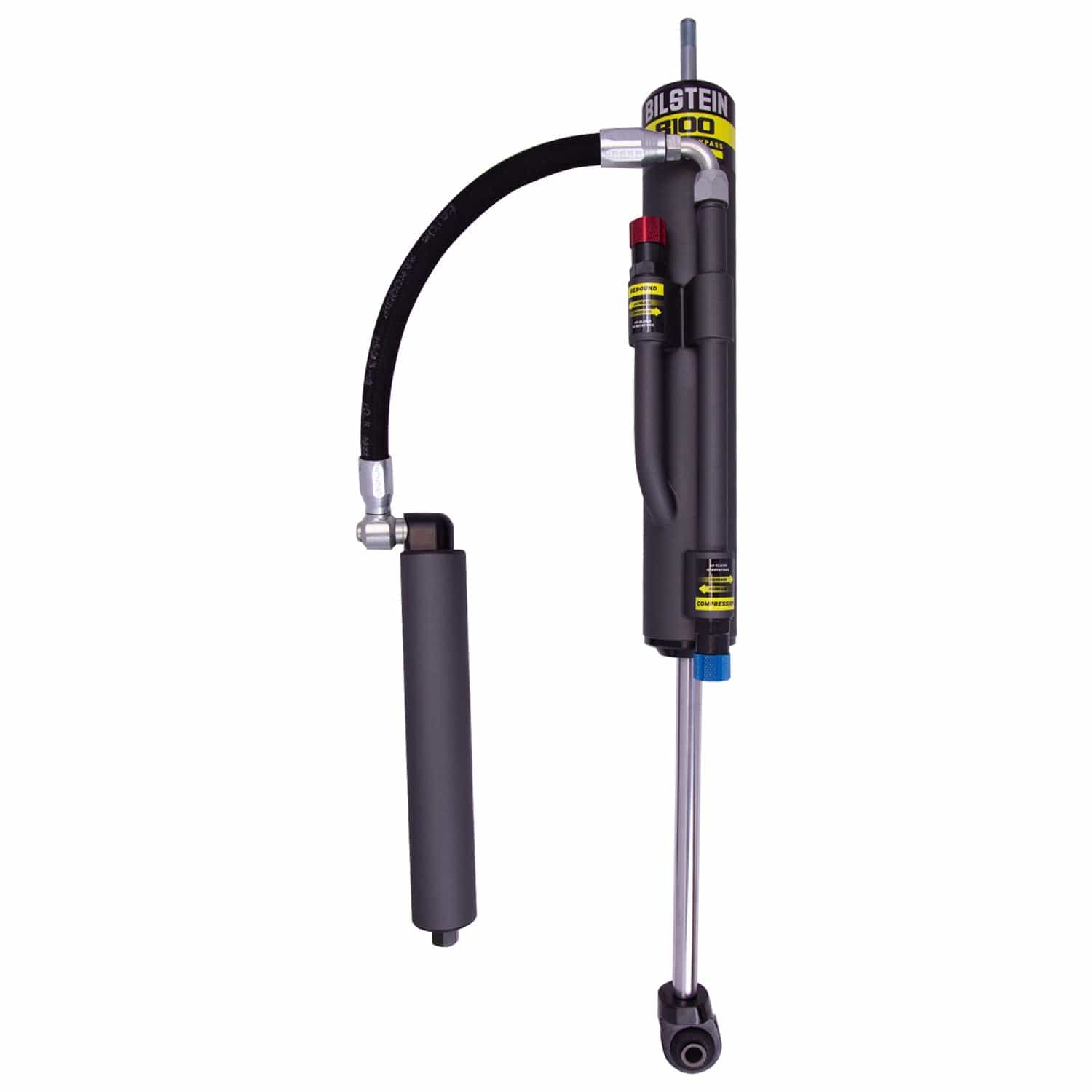

Bilstein B8 8100 (Bypass) for the 2018 Jeep Wrangler JK is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Standard Features
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
| Part Number | 25-291308 |
| Part Name | Shock Absorber |
| Vehicle | 2018 Jeep Wrangler JK |
| UPC | 651860916972 |
| Front Lift Height | 3.5 - 5 in. |
| Body Design | Bypass Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 17.20 in. |
| Collapsed Length | 437.0 mm |
| Damping Adjustable | Yes |
| Extended Length | 27.03 in. |
| Extended Length | 686.6 mm |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.1 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2018 Jeep Wrangler JK
