Product Details

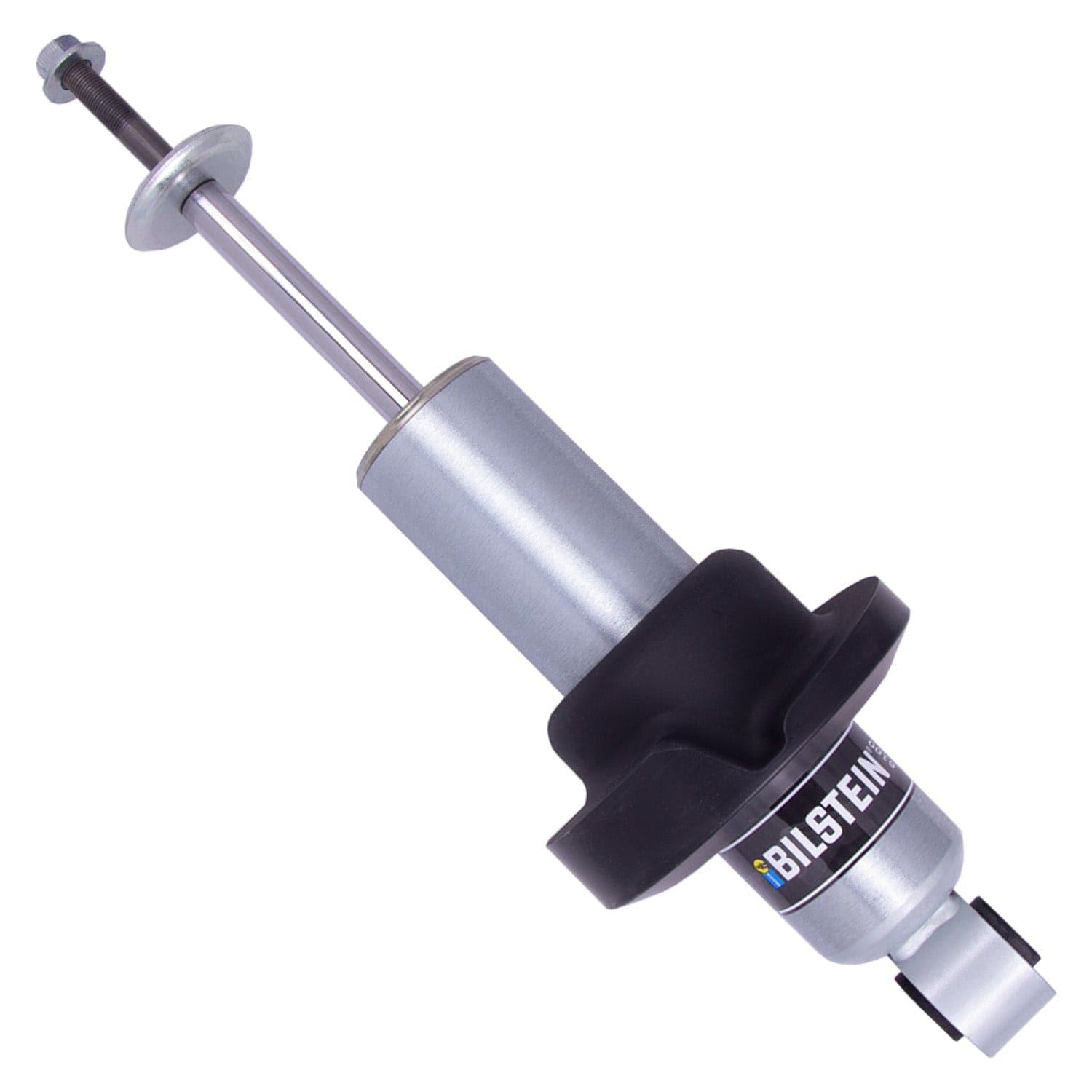

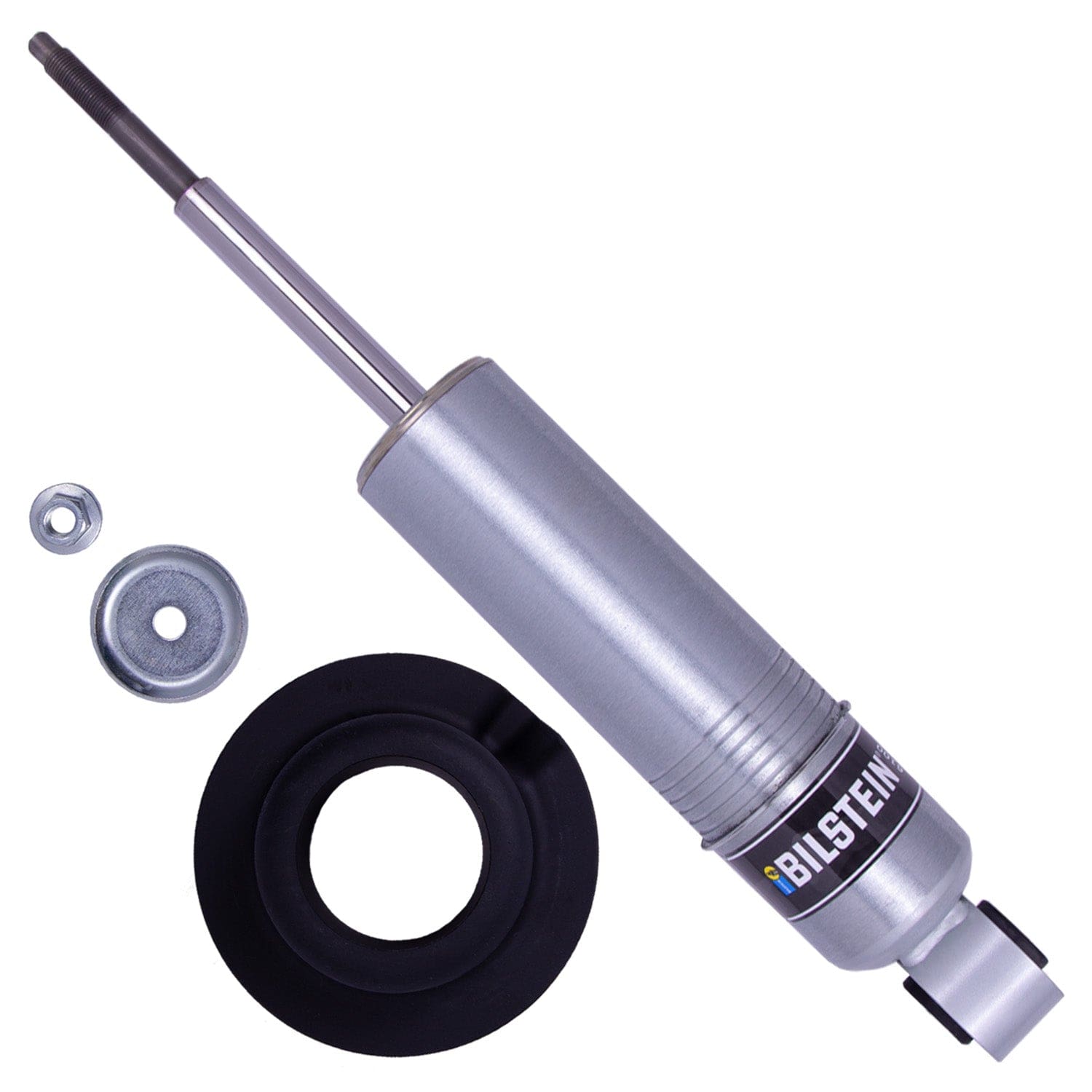

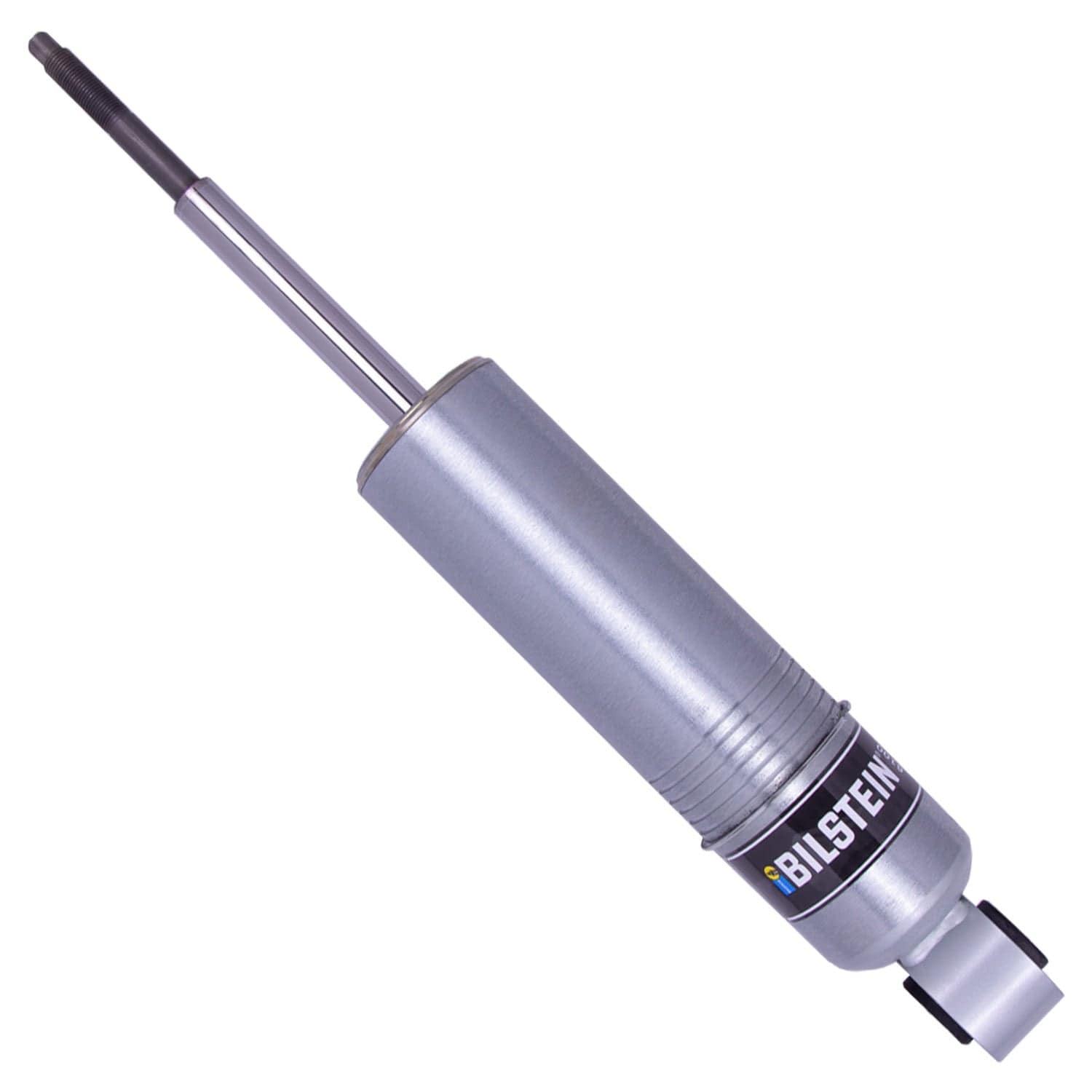

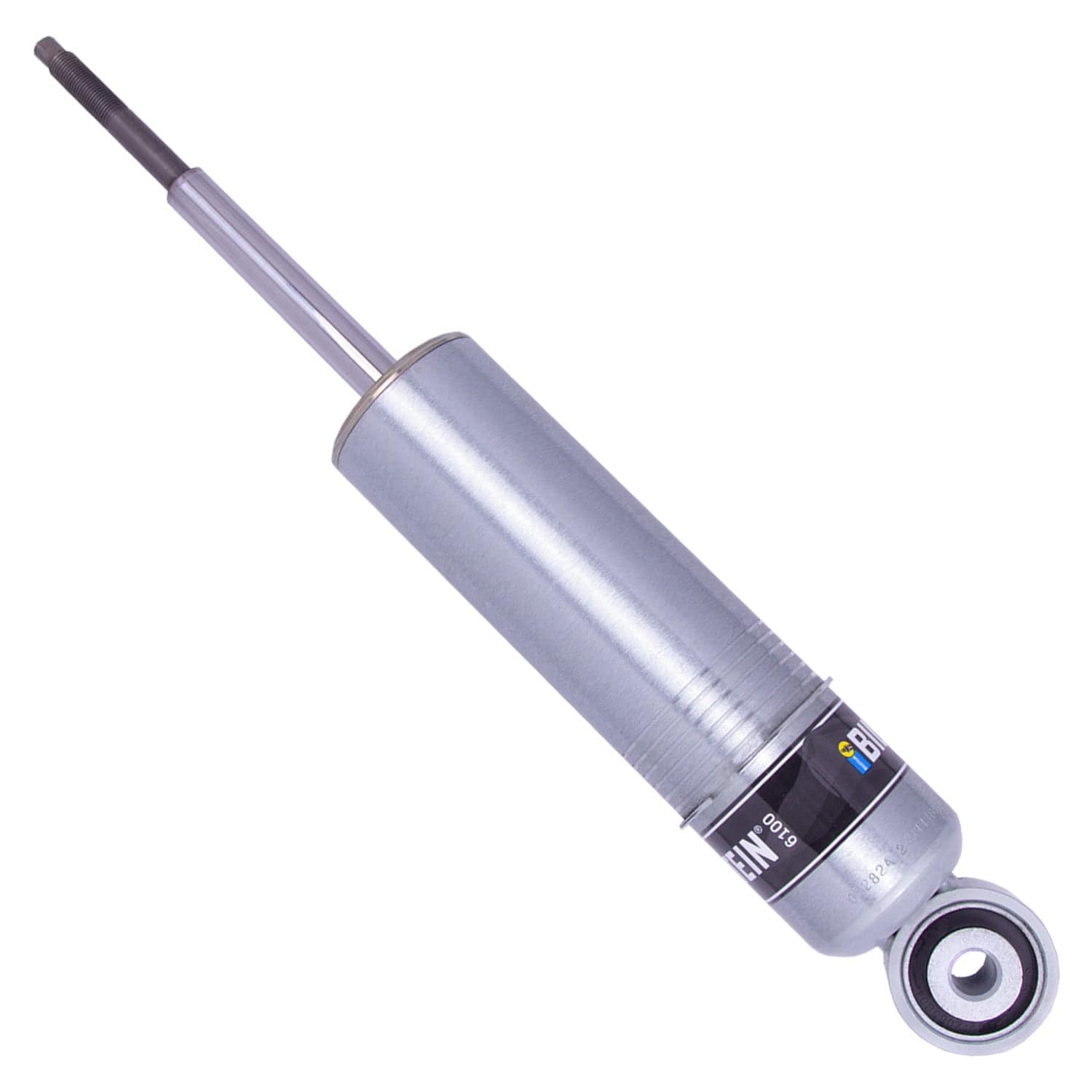

Lifting or leveling a 2017-2024 Nissan TITAN changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | 24-311168 |
| Part Name | Shock Absorber |
| Vehicle | 2017-2024 Nissan TITAN |
| Drivetrain | RWD/4WD |
| UPC | 651860868707 |
| Front Lift Height | 0 - 2.2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 10.94 in. (278.0 mm) |
| Damping Adjustable | No |
| Extended Length | 15.31 in. (389.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6100 (Ride Height Adjustable) |

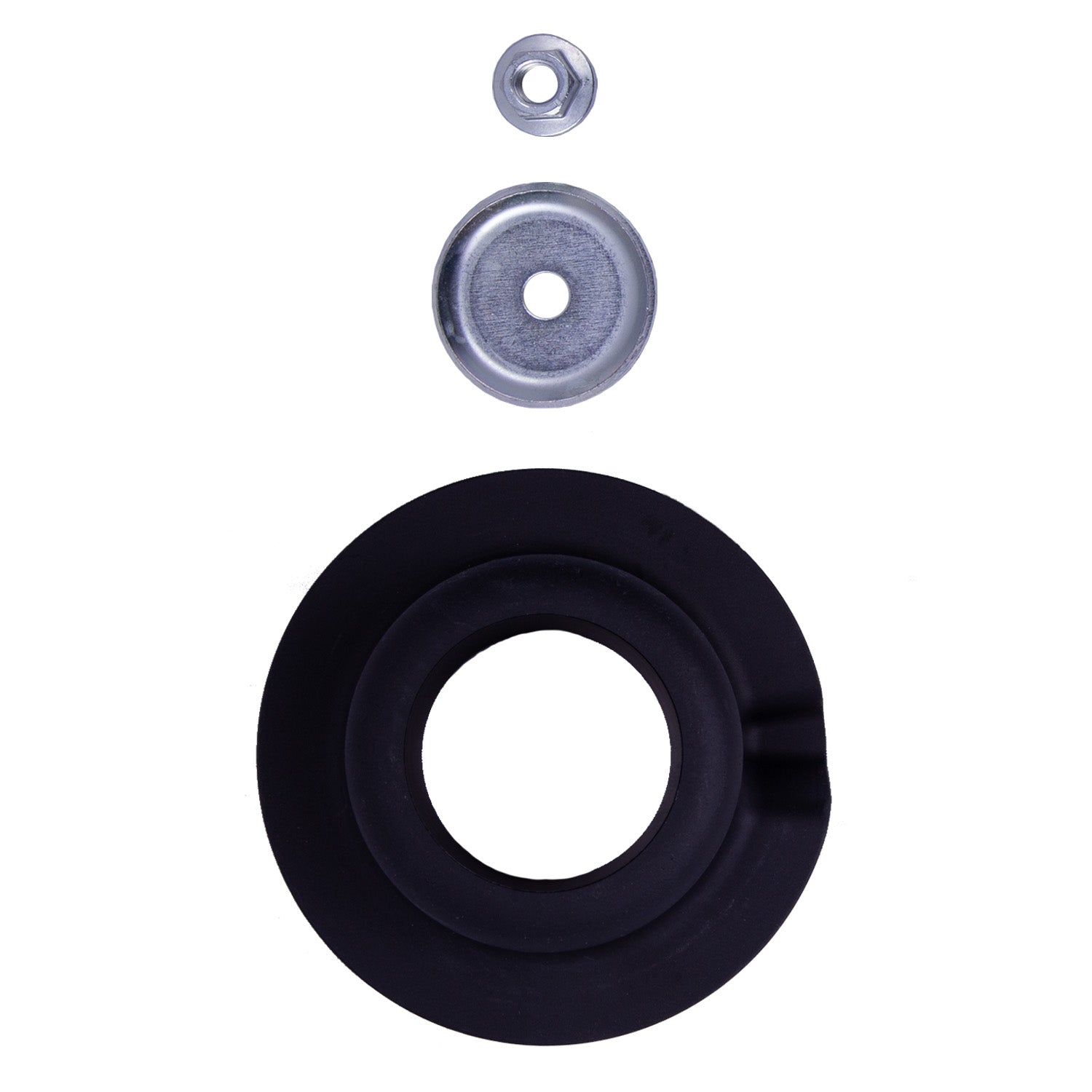

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2017 Nissan TITAN RWD/4WD
- 2018 Nissan TITAN RWD/4WD
- 2019 Nissan TITAN RWD/4WD
- 2020 Nissan TITAN RWD/4WD
- 2021 Nissan TITAN RWD/4WD
- 2022 Nissan TITAN RWD/4WD
- 2023 Nissan TITAN RWD/4WD
- 2024 Nissan TITAN RWD/4WD
