Product Details

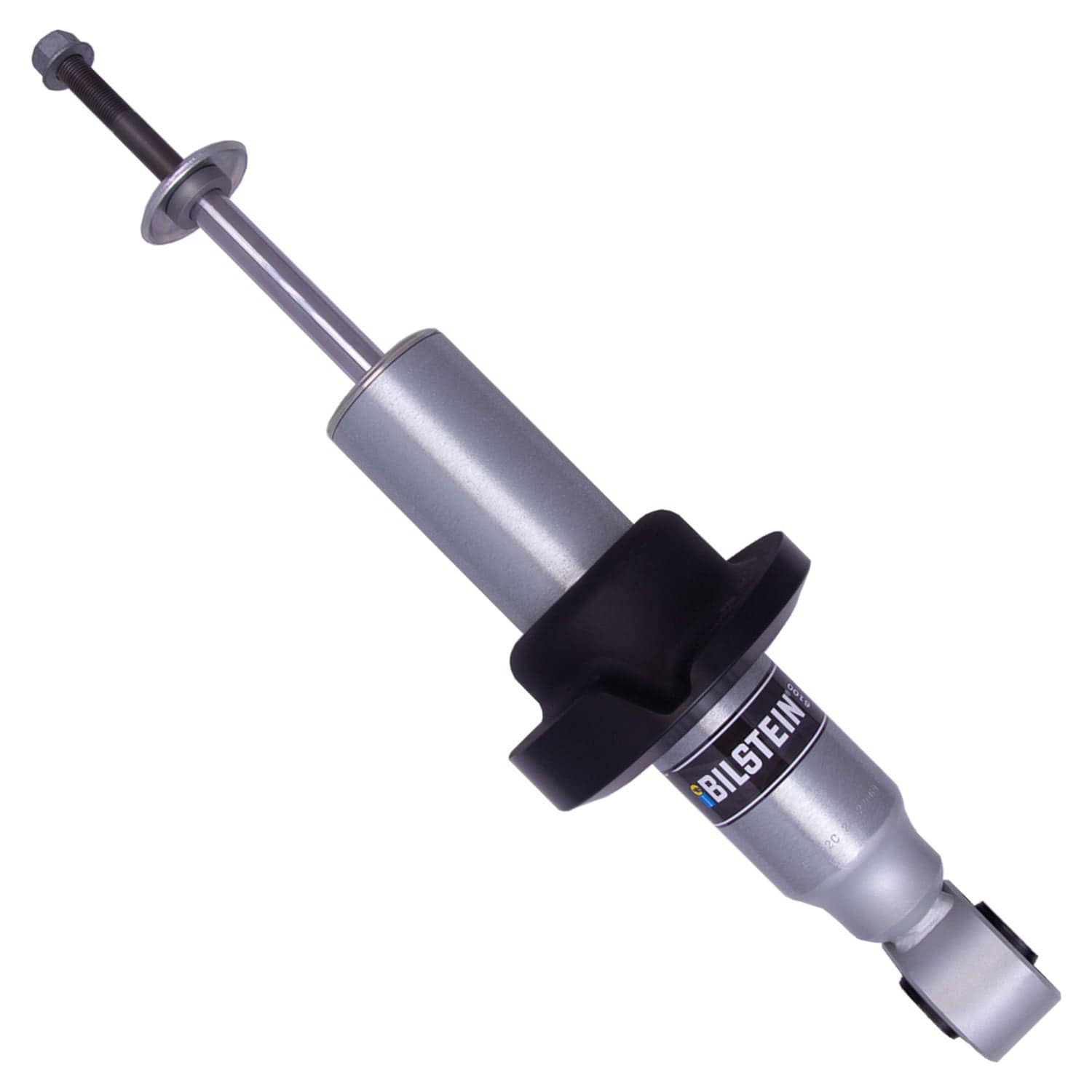

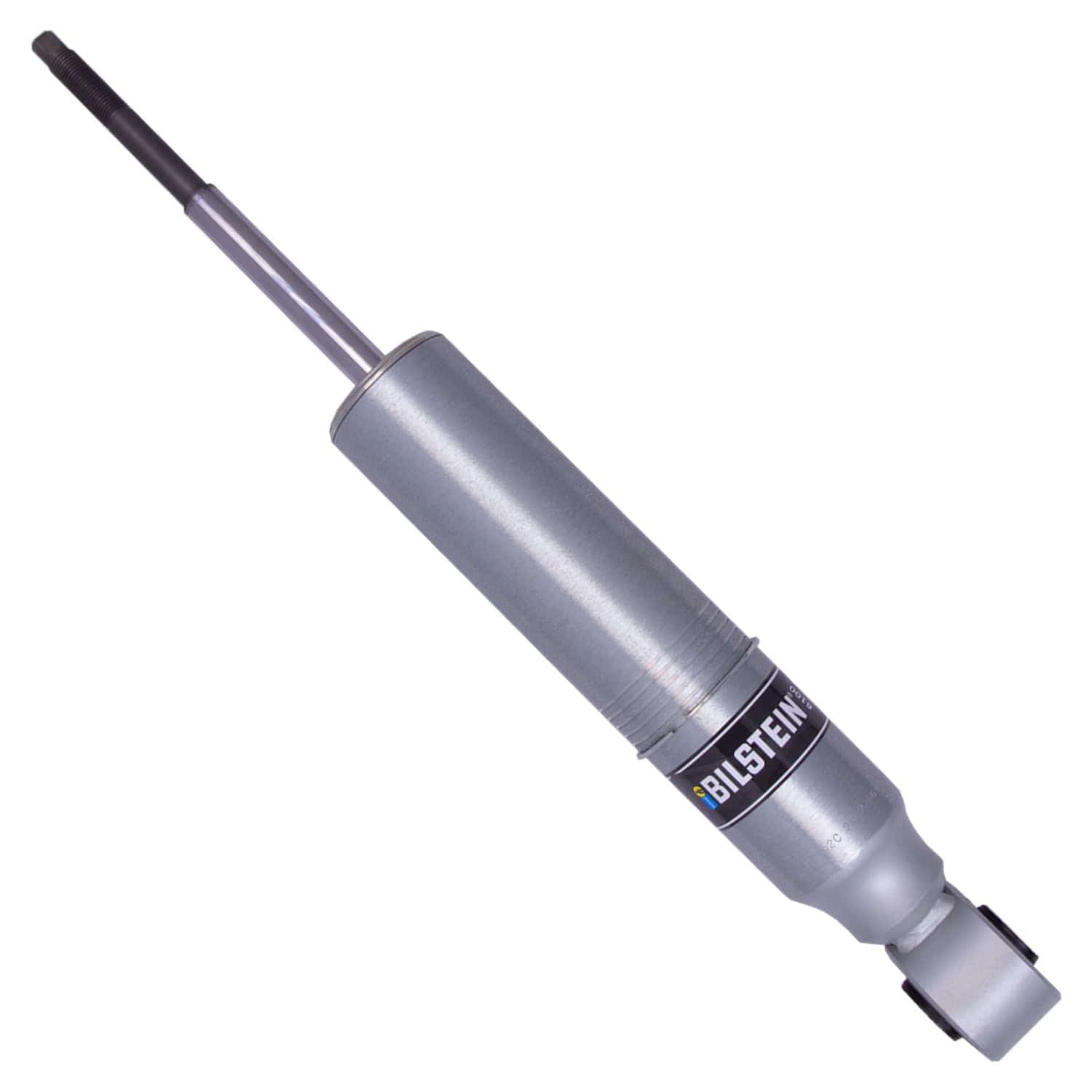

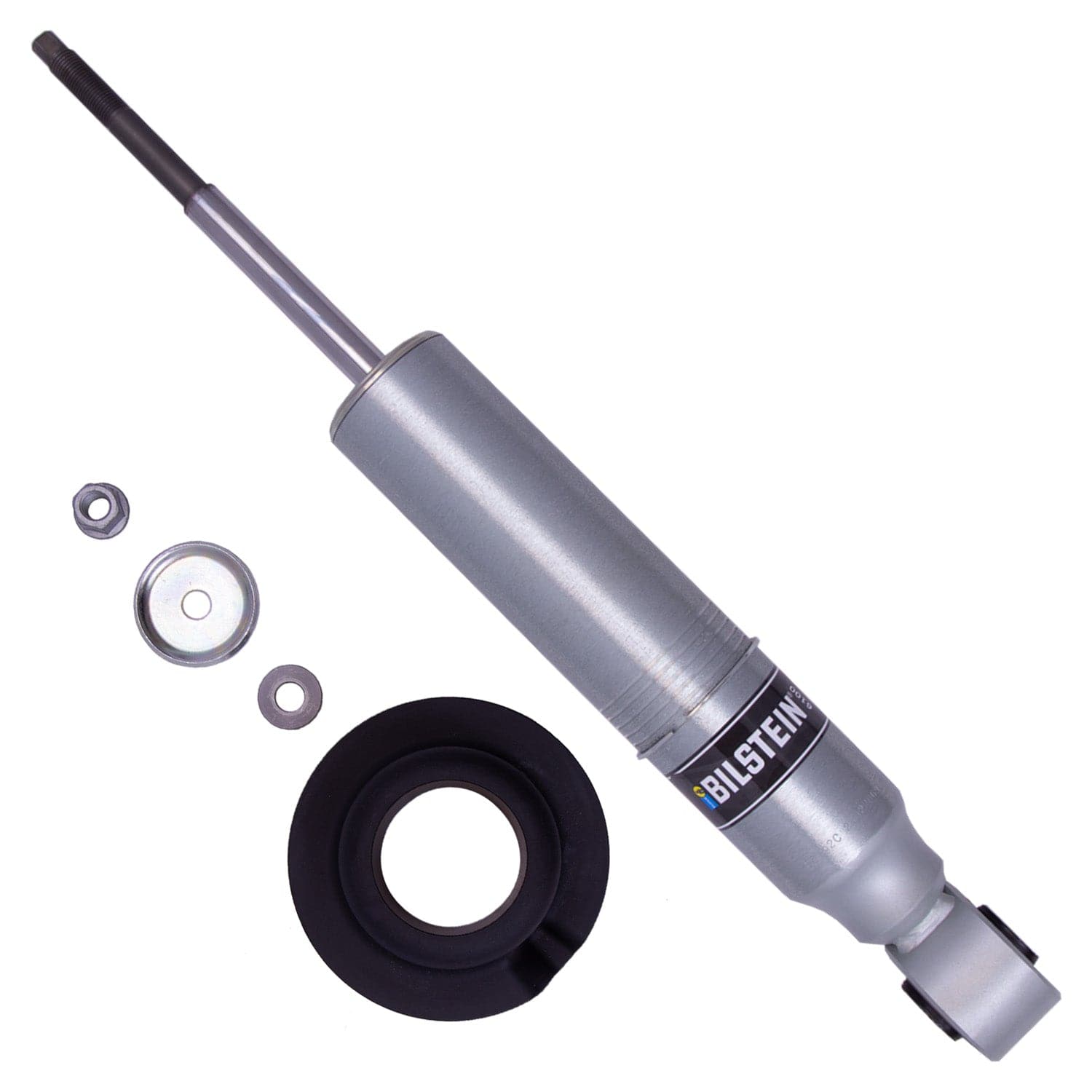

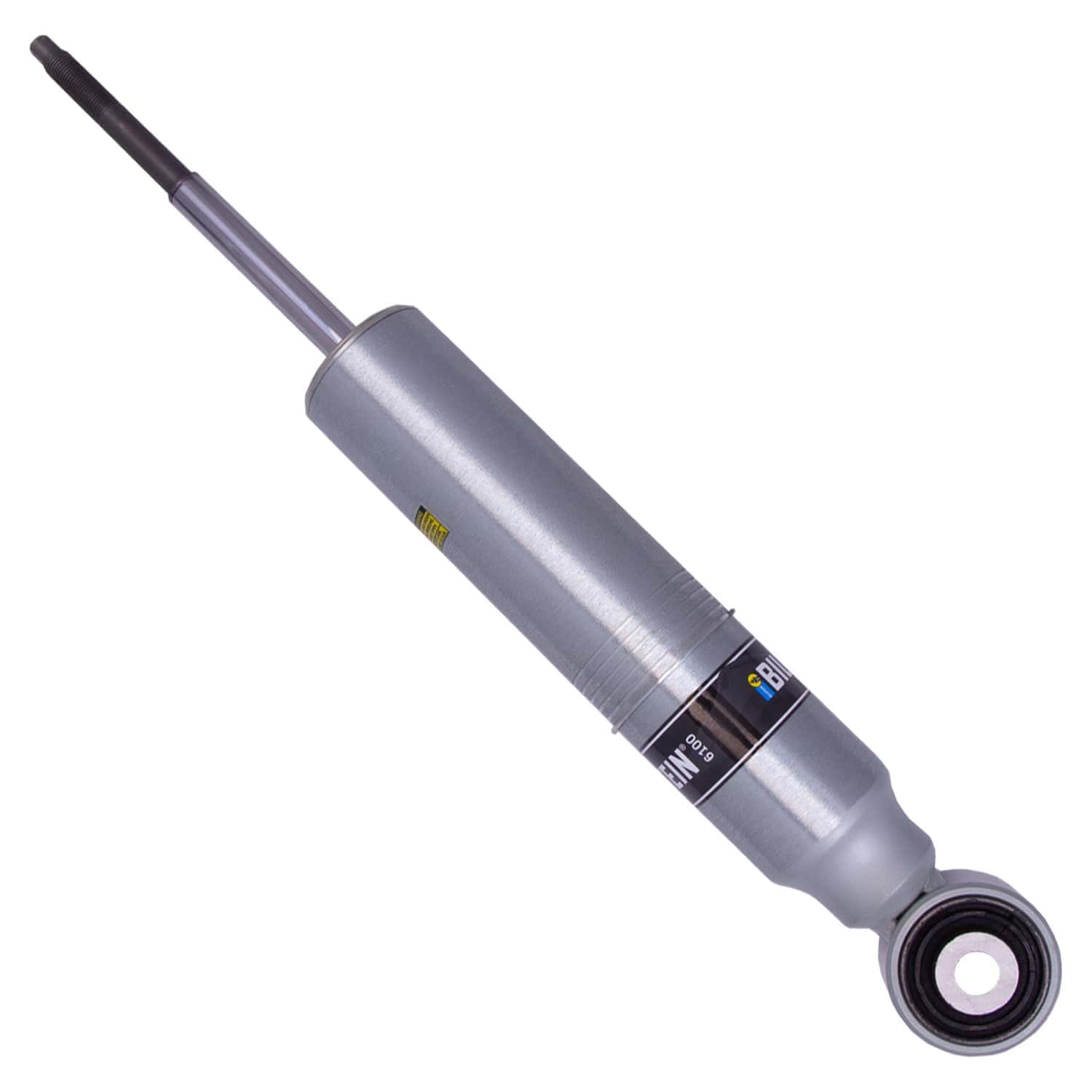

Bilstein B8 6100 (Ride Height Adjustable) Shock Absorbers for the 2016-2024 Nissan TITAN XD are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Standard Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | 24-322669 |
| Part Name | Shock Absorber |
| Vehicle | 2016-2024 Nissan TITAN XD |
| UPC | 651860882482 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No Boot Supplied or Needed |
| Collapsed Length | 14.42 in. |
| Collapsed Length | 366.2 mm |
| Damping Adjustable | No |
| Extended Length | 18.43 in. |
| Extended Length | 468.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6100 (Ride Height Adjustable) |

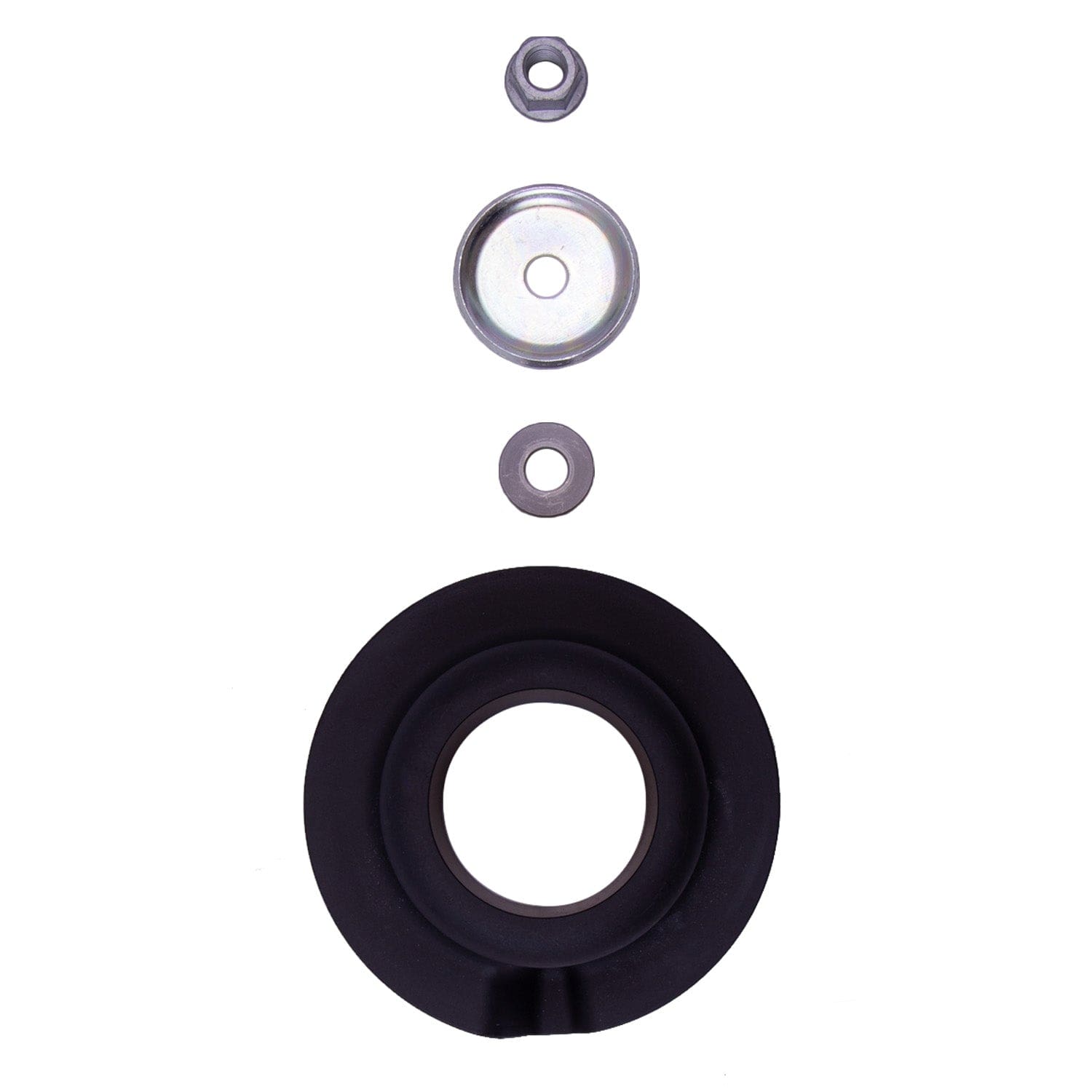

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2016 Nissan TITAN XD
- 2017 Nissan TITAN XD
- 2018 Nissan TITAN XD
- 2019 Nissan TITAN XD
- 2020 Nissan TITAN XD
- 2021 Nissan TITAN XD
- 2022 Nissan TITAN XD
- 2023 Nissan TITAN XD
- 2024 Nissan TITAN XD
