Product Details

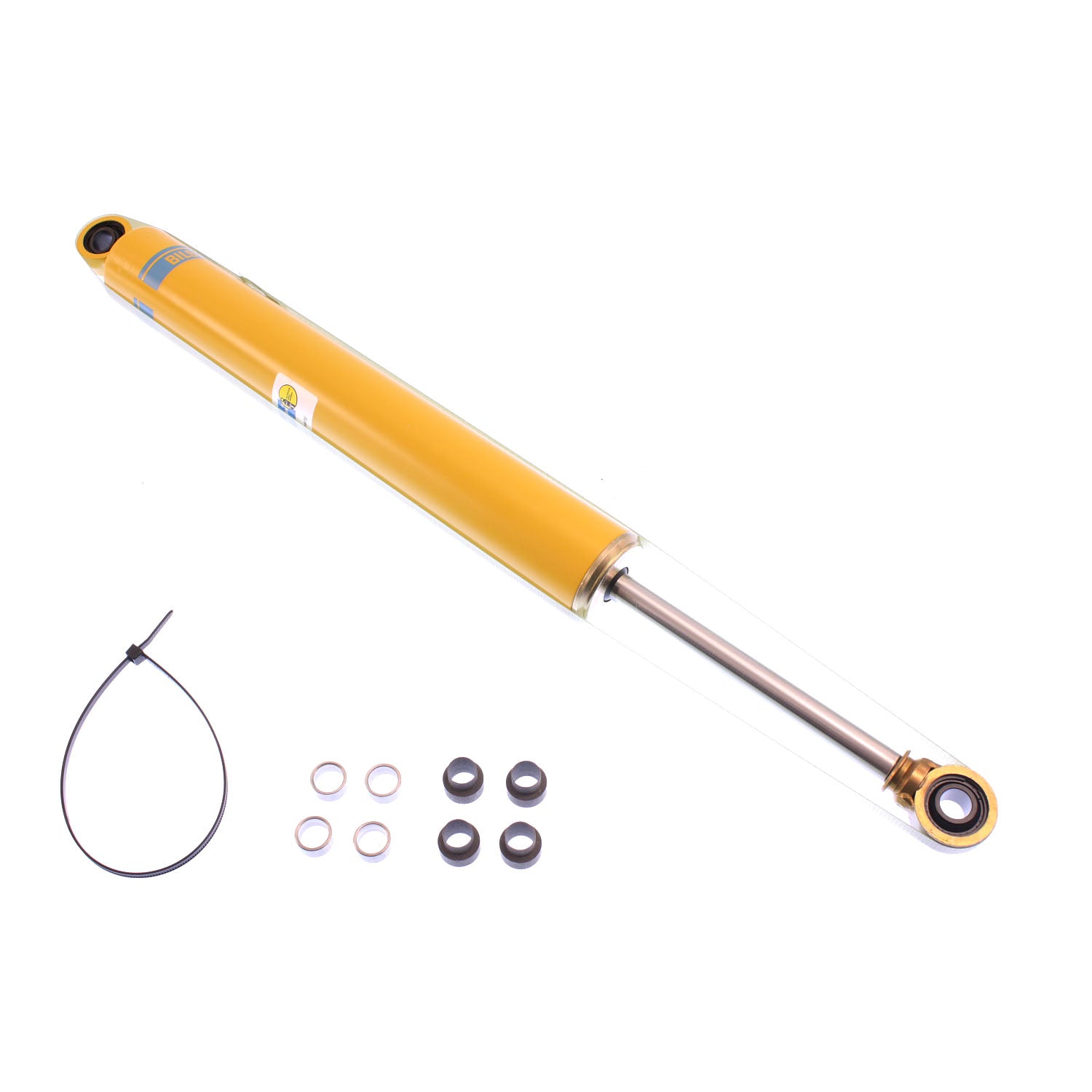

The Bilstein B8 6100 shock absorber is sold for custom and motorsport builds. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Discontinued - Final Sale
Bilstein has discontinued this part. We are selling the remaining stock and it will not be restocked once it is gone. Because of that, all sales on this item are final: it cannot be returned or exchanged.
Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | F4-B46-0349-H2 |
| Part Name | Shock Absorber |
| UPC | 651860420745 |
| Body Design | 46mm ID Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length | 14.06 in. (357.0 mm) |
| Compression @ 0.52m/s | 980 |
| Extended Length | 22.05 in. (560.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Rebound @ 0.52m/s | 2710 |
| Reservoir | No |
| Segment | Motorsports |
| Series | B8 6100 |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
