Product Details

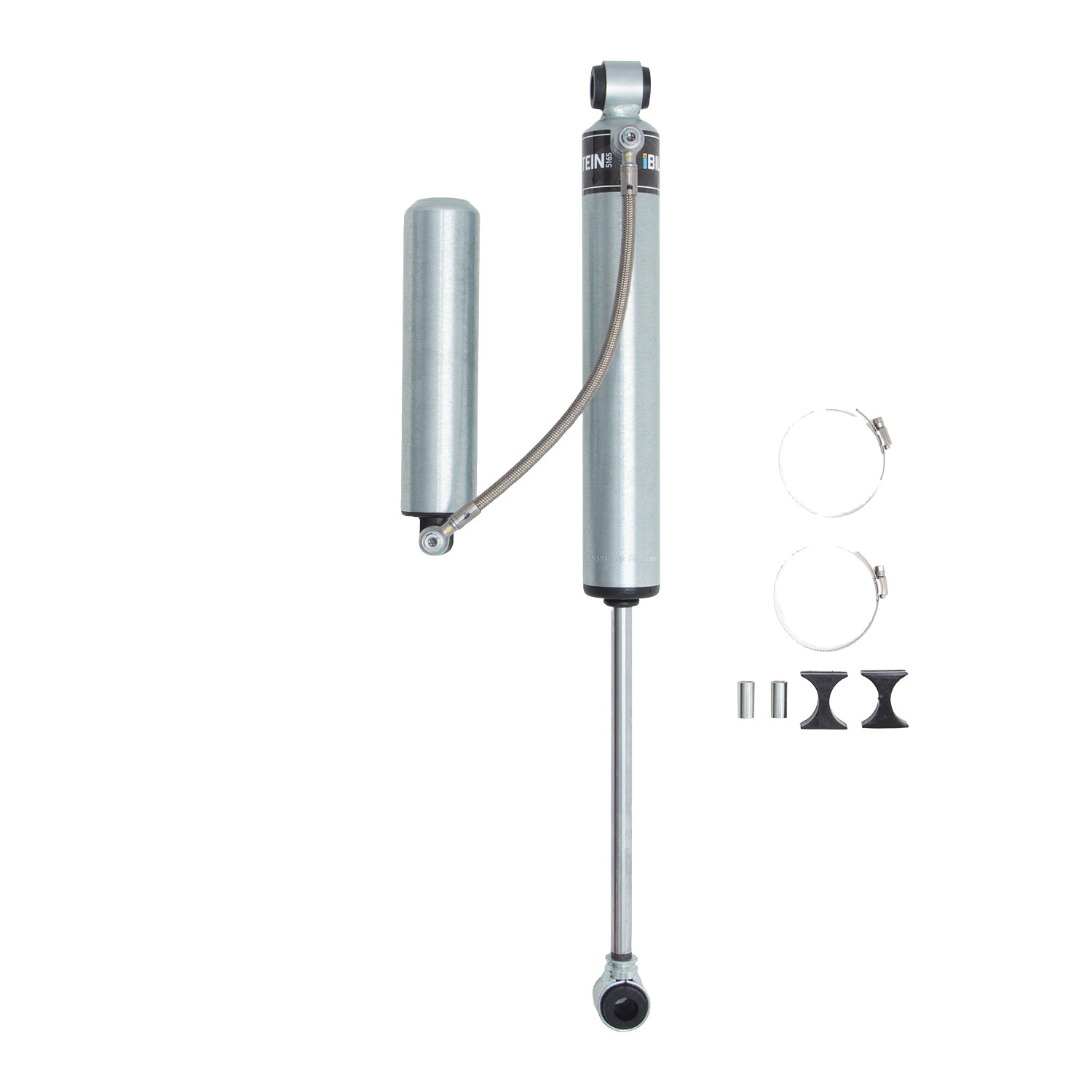

Bilstein B8 5165 remote Reservoir Shock Absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube Shock Absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Shock Absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional Shock Absorber. Each Shock Absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 remote Reservoir Shock Absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.
Note: Product Images may not represent the actual Sku
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-331844 |
| Part Name | Shock Absorber |
| UPC | 651860914701 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length (Rounded) | 14 in. |
| Collapsed Length | 14.23 in. |
| Collapsed Length | 361.5 mm |
| Compression @ 0.52m/s | 595 |
| Damping Adjustable | No |
| Extended Length (Rounded) | 24 in. |
| Extended Length | 23.65 in. |
| Extended Length | 600.7 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Optional Reservoir Clamp | 11-176015 |
| Rebound @ 0.52m/s | 1810 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5165 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 5/8 in. |
| Quantity | Sold Individually |
