Product Details

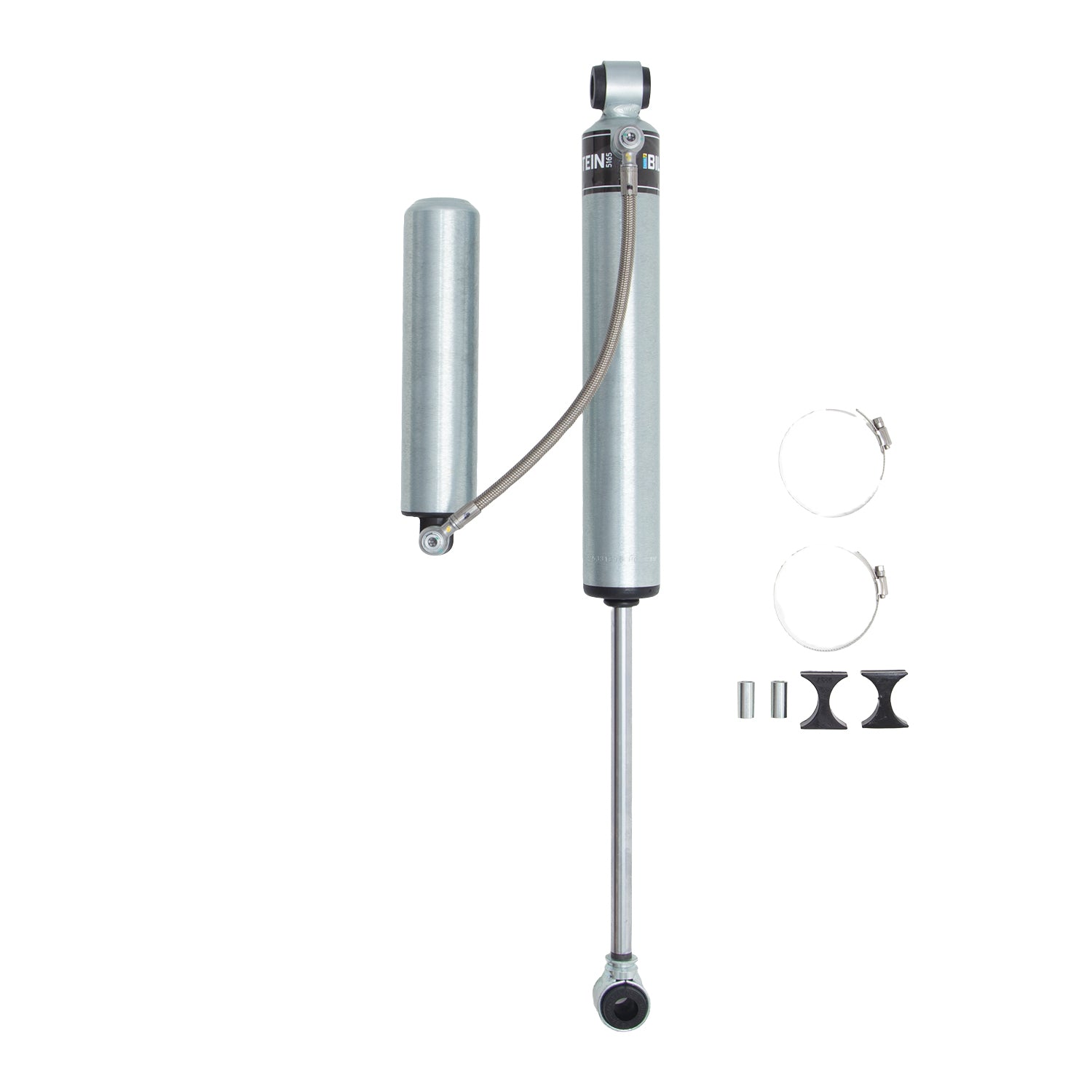

The Bilstein B8 5165 shock absorber is sold for custom and motorsport builds, here at 23.63 in. extended. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 25-331806 |
| Part Name | Shock Absorber |
| UPC | 651860913292 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length (Rounded) | 14 in. |
| Collapsed Length | 14.21 in. (361.0 mm) |
| Compression @ 0.52m/s | 620 |
| Damping Adjustable | No |
| Extended Length (Rounded) | 24 in. |
| Extended Length | 23.63 in. (600.2 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8 in. |
| Mount Type | Eye-to-Eye |
| Optional Reservoir Clamp | 11-176015 |
| Rebound @ 0.52m/s | 2495 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5165 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 5/8 in. |
| Quantity | Sold Individually |
