Product Details

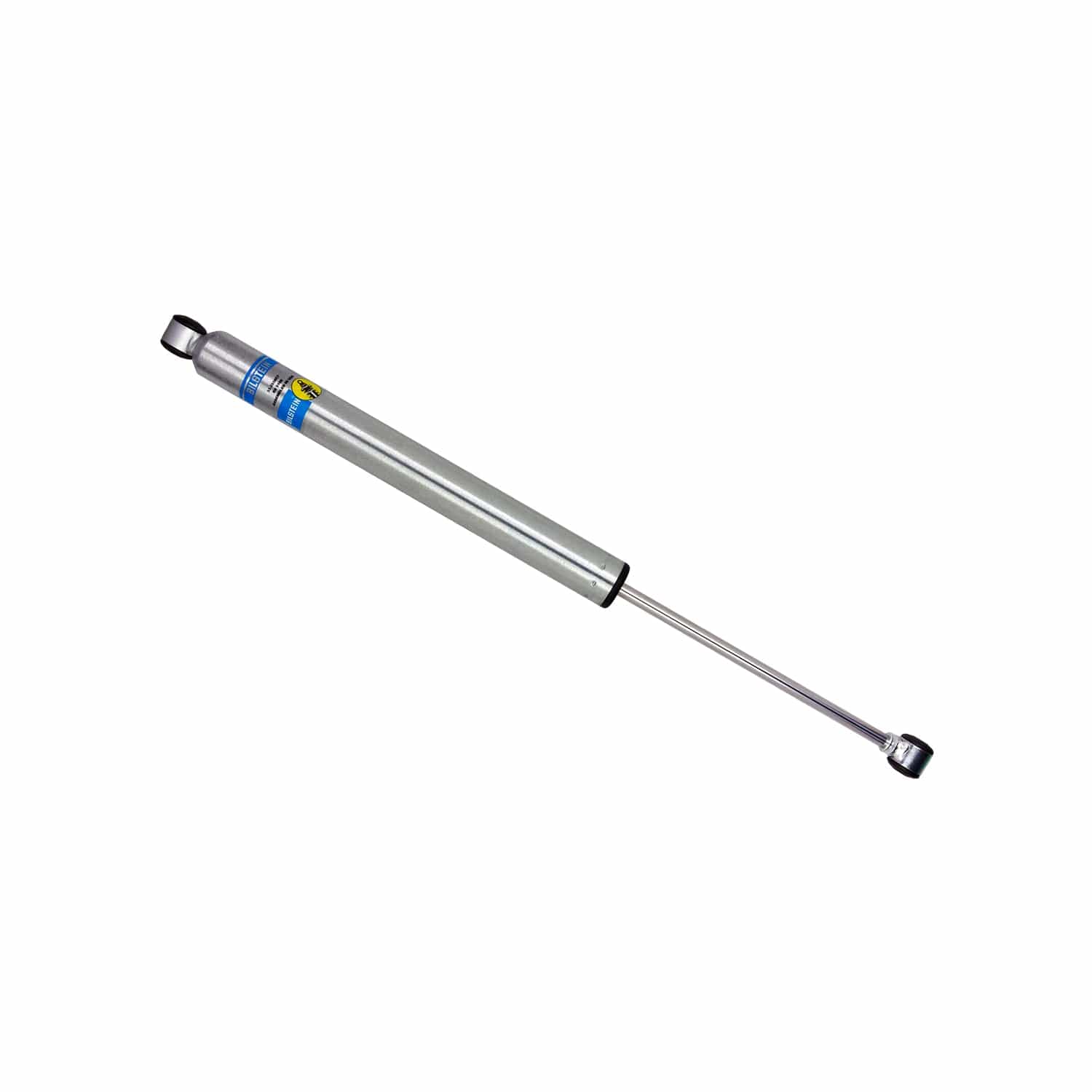

Lifting or leveling a 2009-2013 Ford F-150 (P415) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-255057 |
| Part Name | Shock Absorber |
| Vehicle | 2009-2013 Ford F-150 |
| Chassis Code | P415 |
| Drivetrain | 4WD |
| UPC | 651860803609 |
| Rear Lift Height | 3 - 4 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 20.61 in. (523.5 mm) |
| Damping Adjustable | No |
| Extended Length | 32.56 in. (827.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 12 mm |
| Quantity | Sold Individually |
Vehicle Fitment
- 2009 Ford F-150 4WD (P415)
- 2010 Ford F-150 4WD (P415)
- 2011 Ford F-150 4WD (P415)
- 2012 Ford F-150 4WD (P415)
- 2013 Ford F-150 4WD (P415)
