Product Details

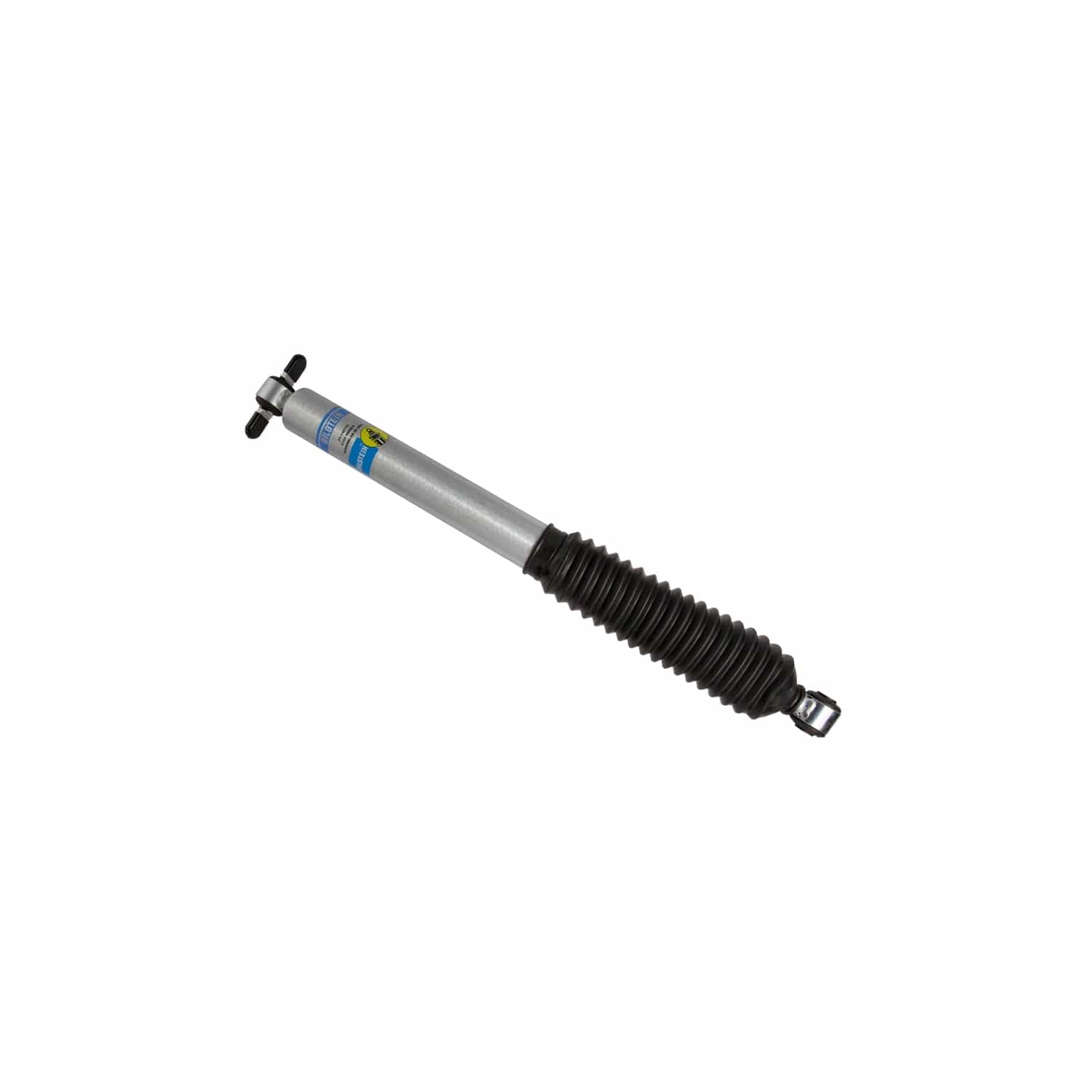

Lifting or leveling a 2007-2018 Jeep Wrangler (JK) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Bilstein has built suspension in Germany since 1954, and supplies the same engineering to manufacturers as original equipment. The build quality is the reason these outlast what they replace, and they are covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-146715 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2018 Jeep Wrangler |
| Chassis Code | JK |
| Drivetrain | RWD/4WD |
| UPC | 651860598505 |
| Rear Lift Height | 1.5 - 3 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 15.39 in. (390.8 mm) |
| Damping Adjustable | No |
| Extended Length | 25.00 in. (635.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Quantity | Sold Individually |
Vehicle Fitment
- 2007 Jeep Wrangler RWD/4WD (JK)
- 2008 Jeep Wrangler RWD/4WD (JK)
- 2009 Jeep Wrangler RWD/4WD (JK)
- 2010 Jeep Wrangler RWD/4WD (JK)
- 2011 Jeep Wrangler RWD/4WD (JK)
- 2012 Jeep Wrangler RWD/4WD (JK)
- 2013 Jeep Wrangler RWD/4WD (JK)
- 2014 Jeep Wrangler RWD/4WD (JK)
- 2015 Jeep Wrangler RWD/4WD (JK)
- 2016 Jeep Wrangler RWD/4WD (JK)
- 2017 Jeep Wrangler RWD/4WD (JK)
- 2018 Jeep Wrangler RWD/4WD (JK)
