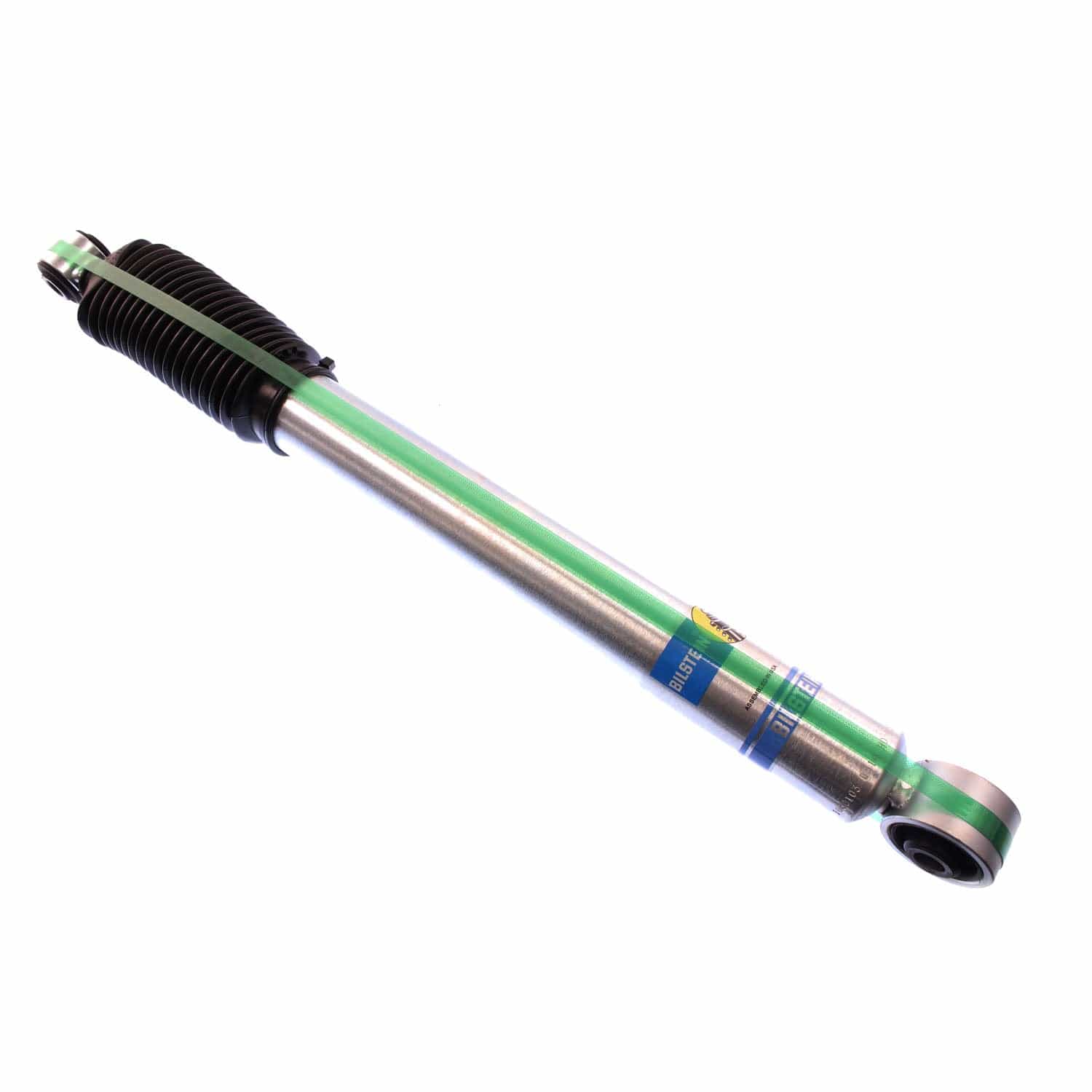

The Bilstein B8 shocks are built for a 2007-2013 GMC Sierra 1500 that has been lifted or leveled, valved for the taller ride height rather than fighting it.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-186636 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2013 GMC Sierra 1500 |
| Drivetrain | 4WD |
| UPC | 651860482033 |
| Rear Lift Height | 3 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 18.17 in. (461.5 mm) |
| Damping Adjustable | No |
| Extended Length | 29.92 in. (760.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14.1 mm |
| Quantity | Sold Individually |
| Notes | Without ZX3 Electronic Suspension Package and Quadrasteer |
Vehicle Fitment
- 2007 GMC Sierra 1500 4WD
- 2008 GMC Sierra 1500 4WD
- 2009 GMC Sierra 1500 4WD
- 2010 GMC Sierra 1500 4WD
- 2011 GMC Sierra 1500 4WD
- 2012 GMC Sierra 1500 4WD
- 2013 GMC Sierra 1500 4WD
