Product Details

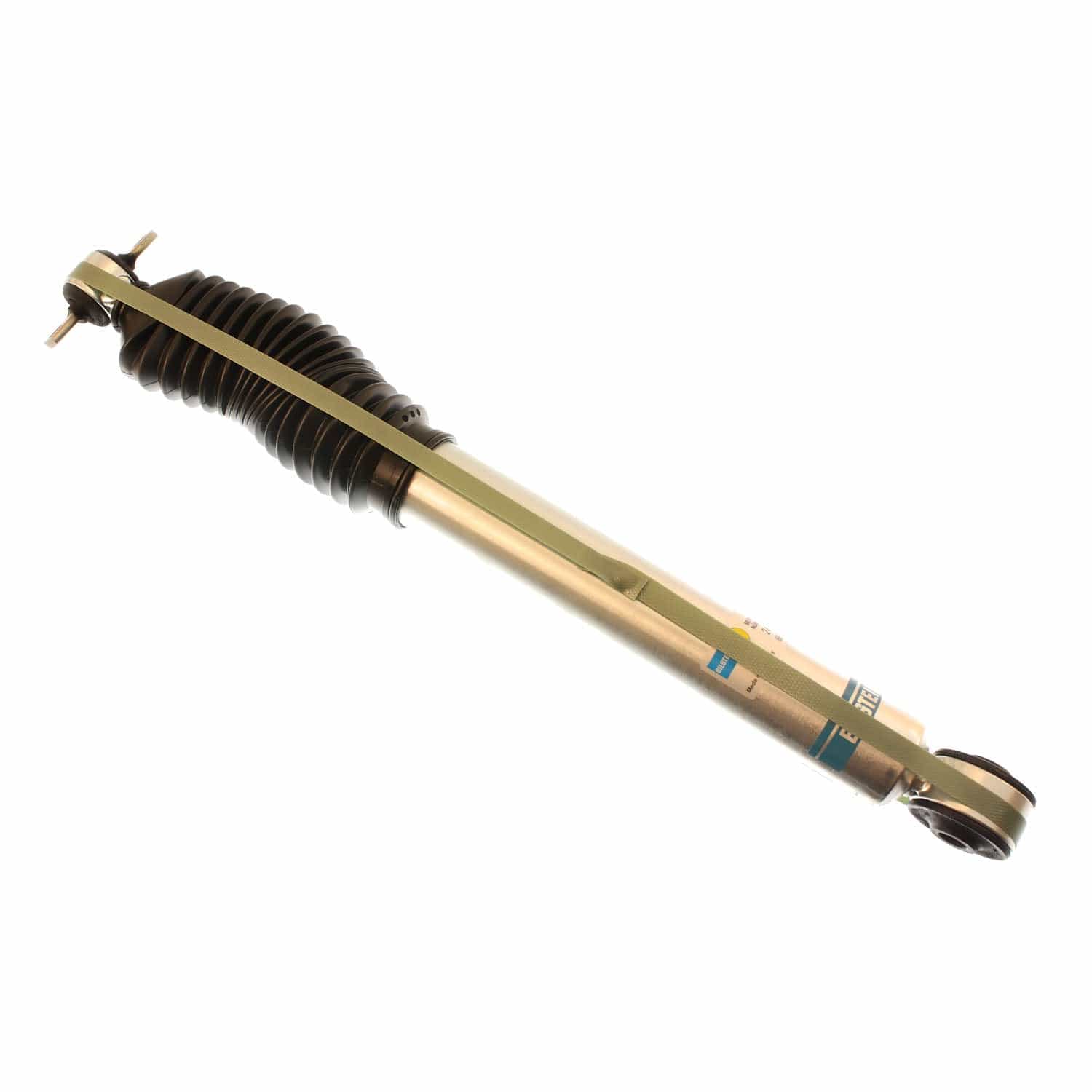

The Bilstein B8 shocks are built for a 2006-2010 Hummer H3 that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein supplies suspension as original equipment to manufacturers around the world, and applies the same engineering here. It fits the factory mounting points exactly and is covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185615 |
| Part Name | Shock Absorber |
| Vehicle | 2006-2010 Hummer H3 |
| Drivetrain | 4WD |
| UPC | 651860590431 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 16.18 in. (411.0 mm) |
| Damping Adjustable | No |
| Extended Length | 26.20 in. (665.5 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Quantity | Sold Individually |
| Notes | Fits Vehicles With 0-1" Rear Lift |
Vehicle Fitment
- 2006 Hummer H3
- 2007 Hummer H3
- 2008 Hummer H3
- 2009 Hummer H3
- 2010 Hummer H3
