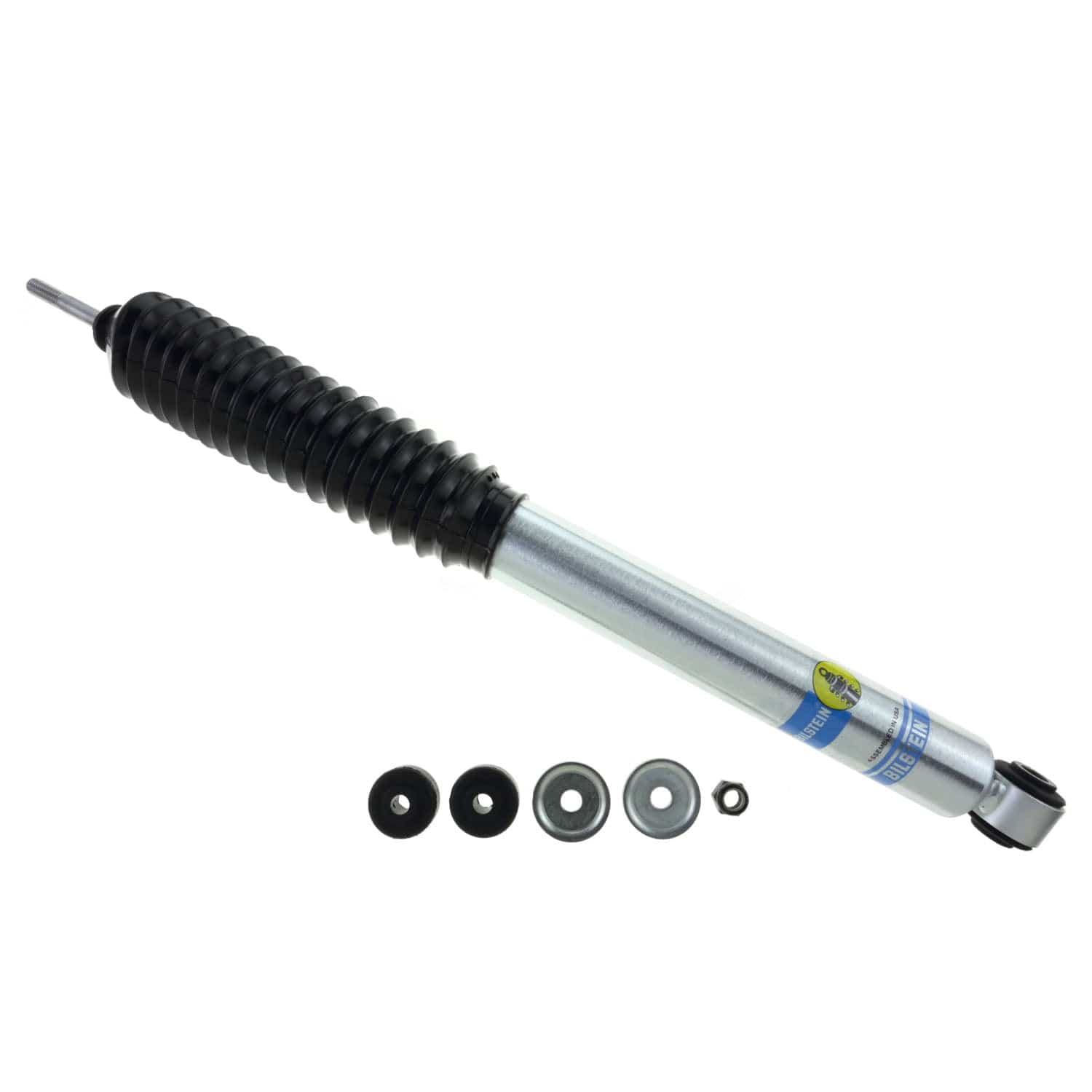

Product Details
The Bilstein B8 shocks are built for a 2005-2010 Ford F-350 Super Duty that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185776 |
| Part Name | Shock Absorber |
| Vehicle | 2005-2010 Ford F-350 Super Duty |
| Drivetrain | 4WD |
| UPC | 651860638560 |
| Front Lift Height | 0 - 2.5 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 14.88 in. (378.0 mm) |
| Damping Adjustable | No |
| Extended Length | 24.37 in. (619.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Mega Cab Only |
Vehicle Fitment
- 2005 Ford F-350 Super Duty 4WD
- 2006 Ford F-350 Super Duty 4WD
- 2007 Ford F-350 Super Duty 4WD
- 2008 Ford F-350 Super Duty 4WD
- 2009 Ford F-350 Super Duty 4WD
- 2010 Ford F-350 Super Duty 4WD
