Product Details

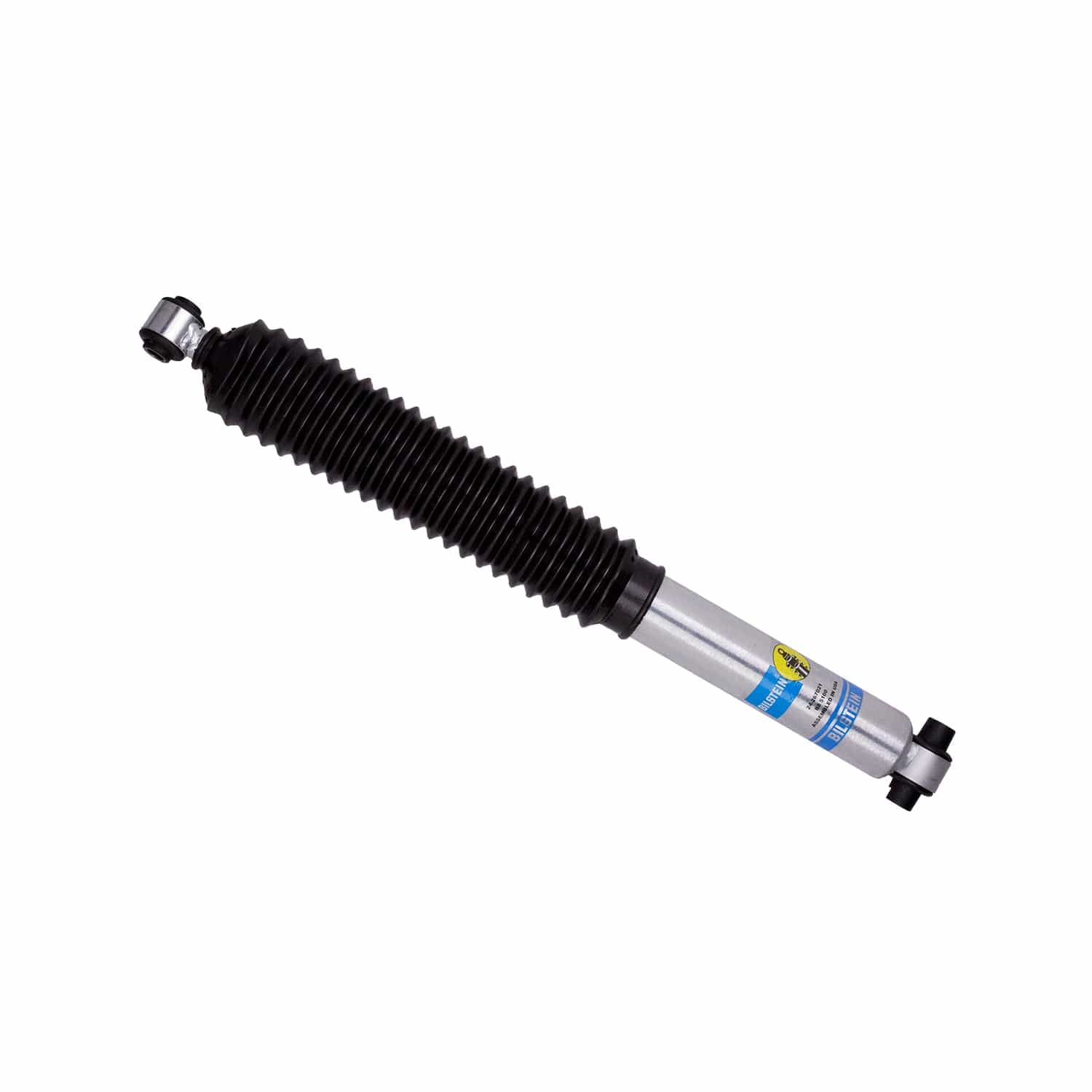

The Bilstein B8 shocks are built for a 2002-2009 Chevrolet Trailblazer that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-267021 |
| Part Name | Shock Absorber |
| Vehicle | 2002-2009 Chevrolet Trailblazer |
| Drivetrain | RWD/4WD |
| UPC | 651860804347 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 14.63 in. (371.5 mm) |
| Damping Adjustable | No |
| Extended Length | 23.30 in. (591.7 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.9 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 12.9 mm |
| Quantity | Sold Individually |
Vehicle Fitment
- 2002 Chevrolet Trailblazer RWD/4WD
- 2003 Chevrolet Trailblazer RWD/4WD
- 2004 Chevrolet Trailblazer RWD/4WD
- 2005 Chevrolet Trailblazer RWD/4WD
- 2006 Chevrolet Trailblazer RWD/4WD
- 2007 Chevrolet Trailblazer RWD/4WD
- 2008 Chevrolet Trailblazer RWD/4WD
- 2009 Chevrolet Trailblazer RWD/4WD
