Product Details

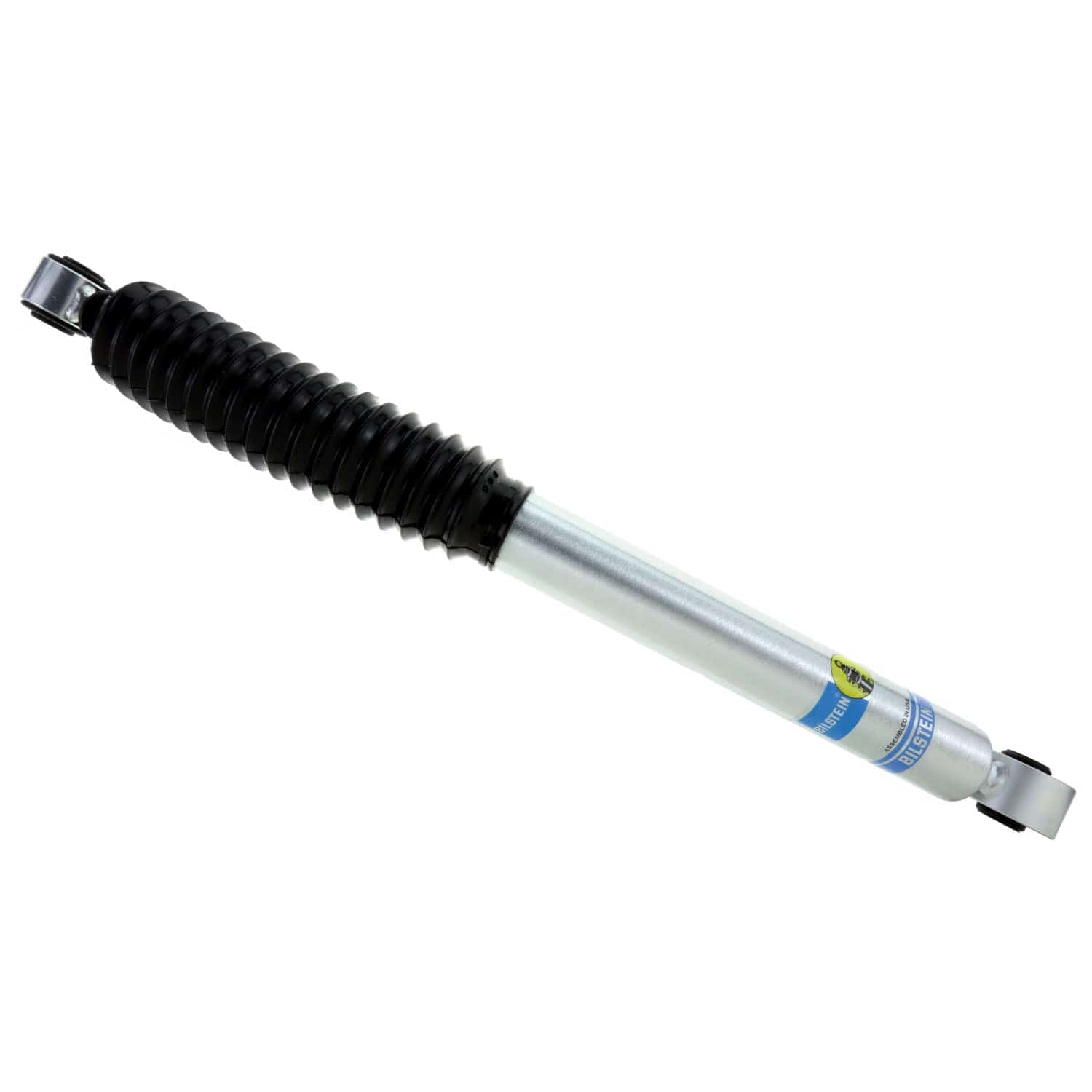

The Bilstein B8 shocks are built for a 2001-2006 GMC Sierra 1500 HD that has been lifted or leveled, valved for the taller ride height rather than fighting it.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-186742 |
| Part Name | Shock Absorber |
| Vehicle | 2001-2006 GMC Sierra 1500 HD |
| Drivetrain | 4WD |
| UPC | 651860565484 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 16.14 in. (410.0 mm) |
| Damping Adjustable | No |
| Extended Length | 26.15 in. (664.2 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14.1 mm |
| Quantity | Sold Individually |
| Notes | Without ZX3 Electronic Suspension Package and Quadrasteer |
Vehicle Fitment
- 2001 GMC Sierra 1500 HD
- 2002 GMC Sierra 1500 HD
- 2003 GMC Sierra 1500 HD
- 2004 GMC Sierra 1500 HD
- 2005 GMC Sierra 1500 HD
- 2006 GMC Sierra 1500 HD
