Product Details

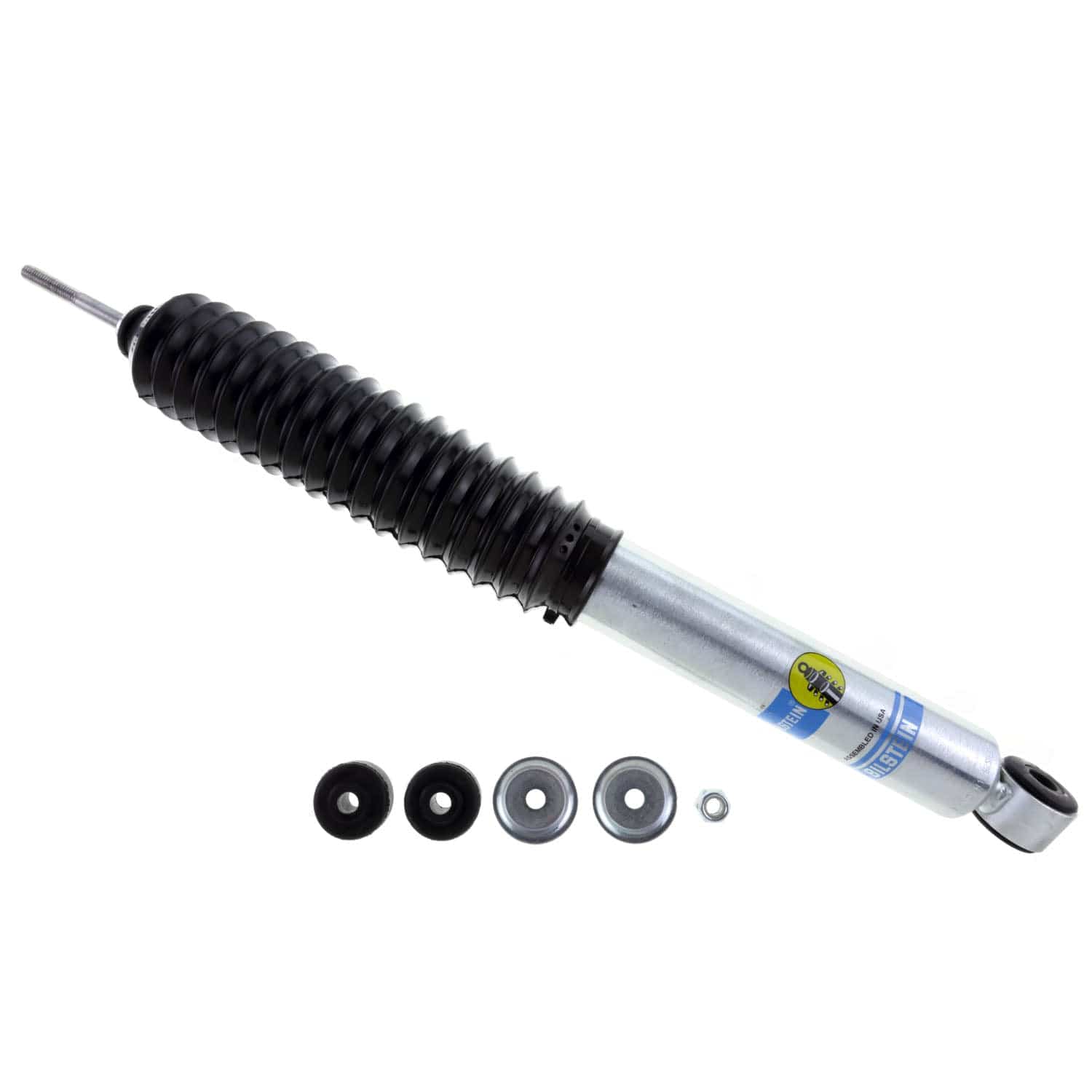

The Bilstein B8 shocks are built for a 2001-2006 GMC Sierra 1500 HD that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein has built suspension in Germany since 1954, and supplies the same engineering to manufacturers as original equipment. The build quality is the reason these outlast what they replace, and they are covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-187183 |
| Part Name | Shock Absorber |
| Vehicle | 2001-2006 GMC Sierra 1500 HD |
| Drivetrain | 4WD |
| UPC | 651860600161 |
| Front Lift Height | 4 - 6 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 13.52 in. (343.3 mm) |
| Damping Adjustable | No |
| Extended Length | 21.46 in. (545.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Without ZX3 Electronic Suspension Package and Quadrasteer |
Vehicle Fitment
- 2001 GMC Sierra 1500 HD
- 2002 GMC Sierra 1500 HD
- 2003 GMC Sierra 1500 HD
- 2004 GMC Sierra 1500 HD
- 2005 GMC Sierra 1500 HD
- 2006 GMC Sierra 1500 HD
