Product Details

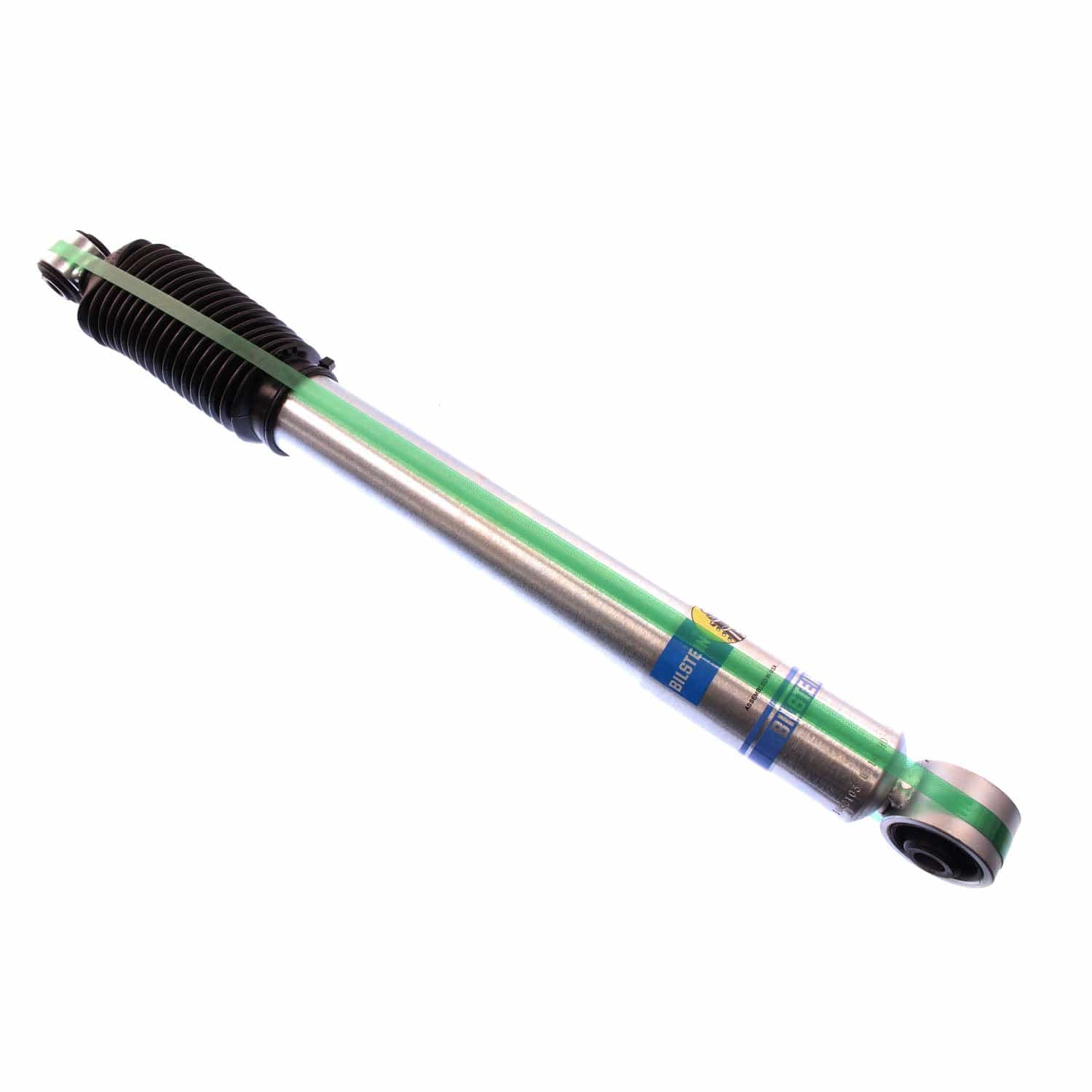

Lifting or leveling a 1999-2006 GMC Sierra 1500 changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-186636 |
| Part Name | Shock Absorber |
| Vehicle | 1999-2006 GMC Sierra 1500 |
| Drivetrain | 4WD |
| UPC | 651860482033 |
| Rear Lift Height | 3 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 18.17 in. (461.5 mm) |
| Damping Adjustable | No |
| Extended Length | 29.92 in. (760.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14.1 mm |
| Quantity | Sold Individually |
| Notes | Without ZX3 Electronic Suspension Package and Quadrasteer |
Vehicle Fitment
- 1999 GMC Sierra 1500 4WD
- 2000 GMC Sierra 1500 4WD
- 2001 GMC Sierra 1500 4WD
- 2002 GMC Sierra 1500 4WD
- 2003 GMC Sierra 1500 4WD
- 2004 GMC Sierra 1500 4WD
- 2005 GMC Sierra 1500 4WD
- 2006 GMC Sierra 1500 4WD
