Product Details

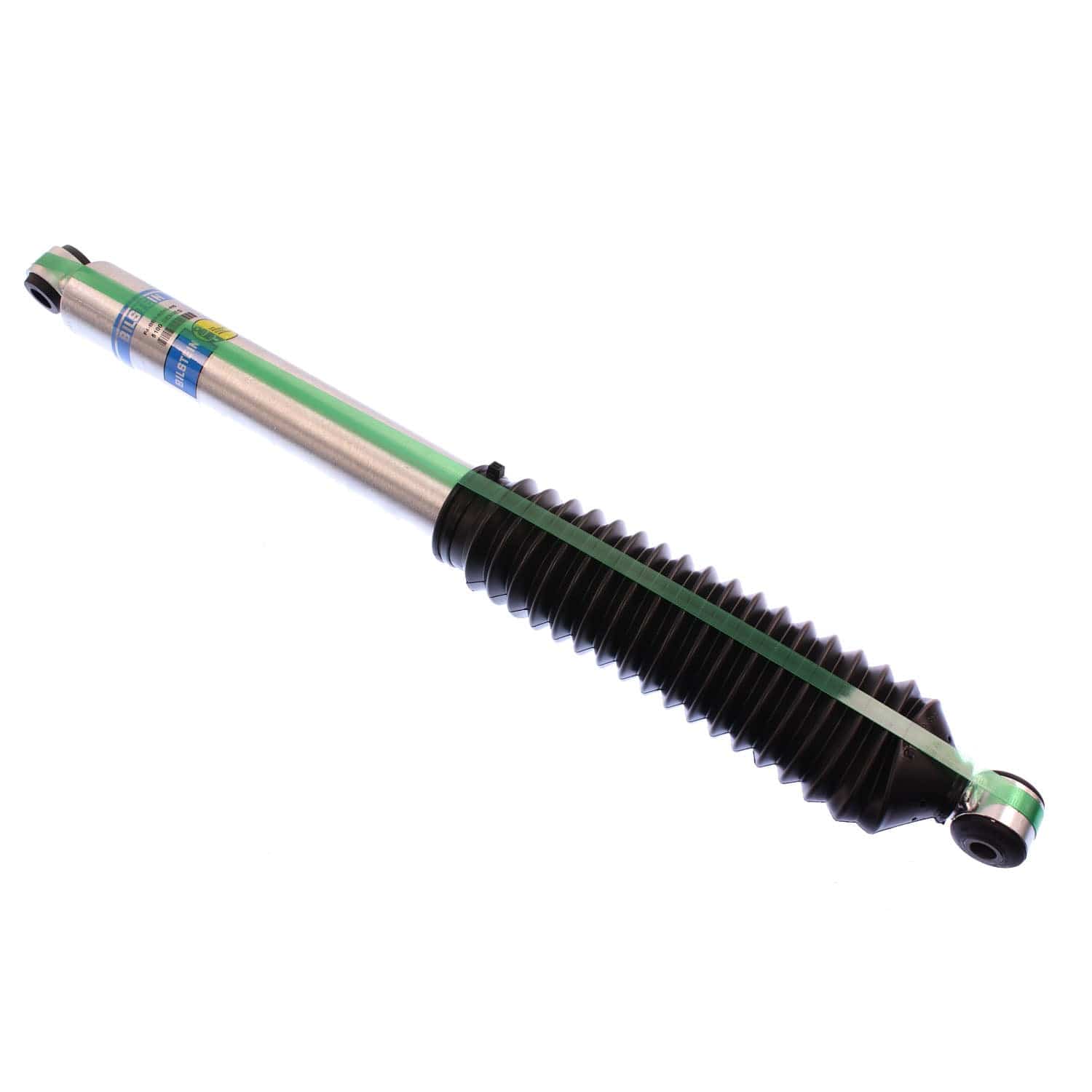

The Bilstein B8 shocks are built for a 1999-2004 Ford F-250 Super Duty that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-185545 |
| Part Name | Shock Absorber |
| Vehicle | 1999-2004 Ford F-250 Super Duty |
| Drivetrain | 4WD |
| UPC | 651860453675 |
| Front Lift Height | 4 - 6 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 15.96 in. (405.5 mm) |
| Damping Adjustable | No |
| Extended Length | 26.02 in. (661.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.1 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 16 mm |
| Quantity | Sold Individually |
Vehicle Fitment
- 1999 Ford F-250 Super Duty 4WD
- 2000 Ford F-250 Super Duty 4WD
- 2001 Ford F-250 Super Duty 4WD
- 2002 Ford F-250 Super Duty 4WD
- 2003 Ford F-250 Super Duty 4WD
- 2004 Ford F-250 Super Duty 4WD
