Product Details

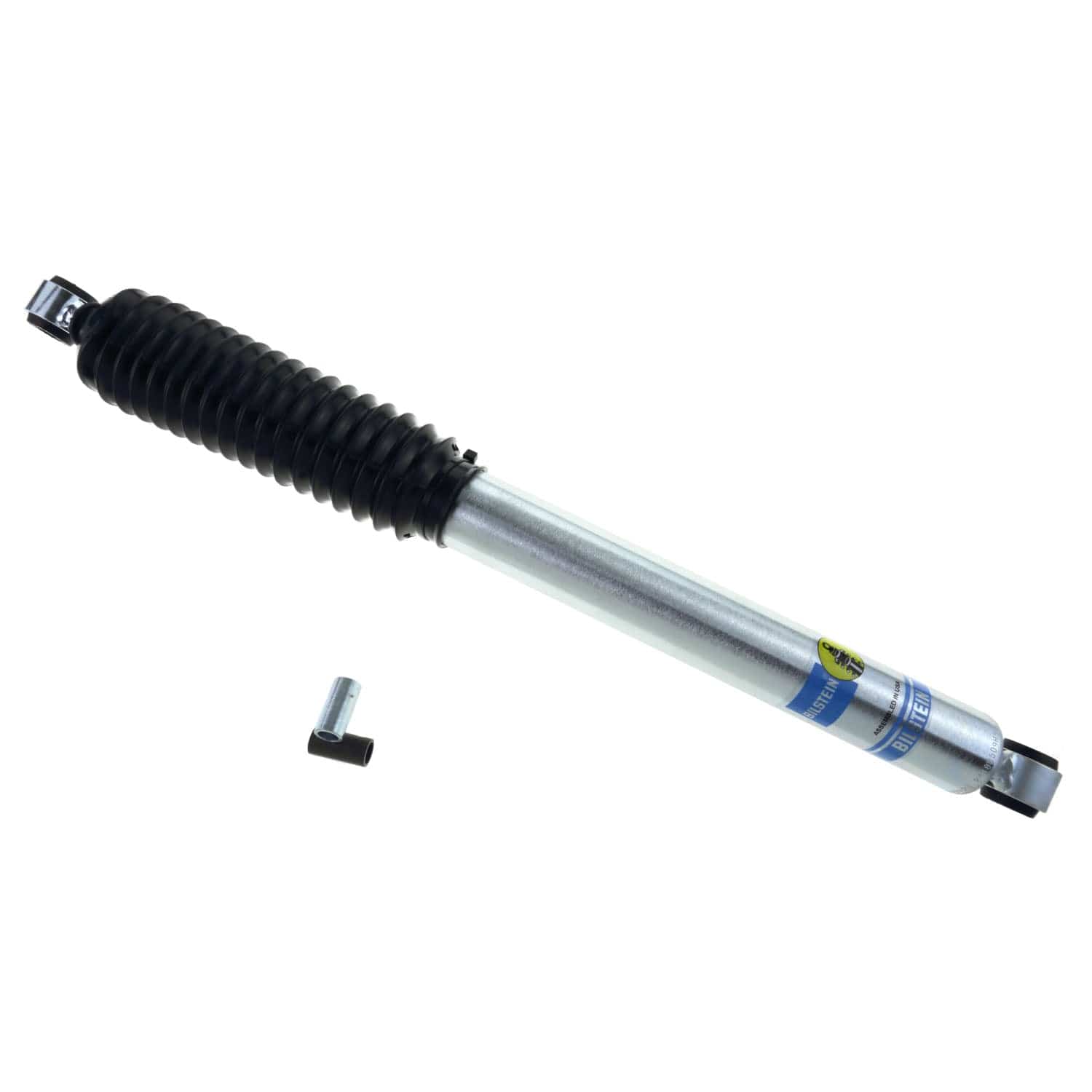

Lifting or leveling a 1998-2001 Mazda B2500 changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-185509 |
| Part Name | Shock Absorber |
| Vehicle | 1998-2001 Mazda B2500 |
| Drivetrain | 4WD |
| UPC | 651860453590 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 16.14 in. (410.0 mm) |
| Damping Adjustable | No |
| Extended Length | 26.16 in. (664.5 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 16 mm |
| Quantity | Sold Individually |
Vehicle Fitment
- 1998 Mazda B2500
- 1999 Mazda B2500
- 2000 Mazda B2500
- 2001 Mazda B2500
