Product Details

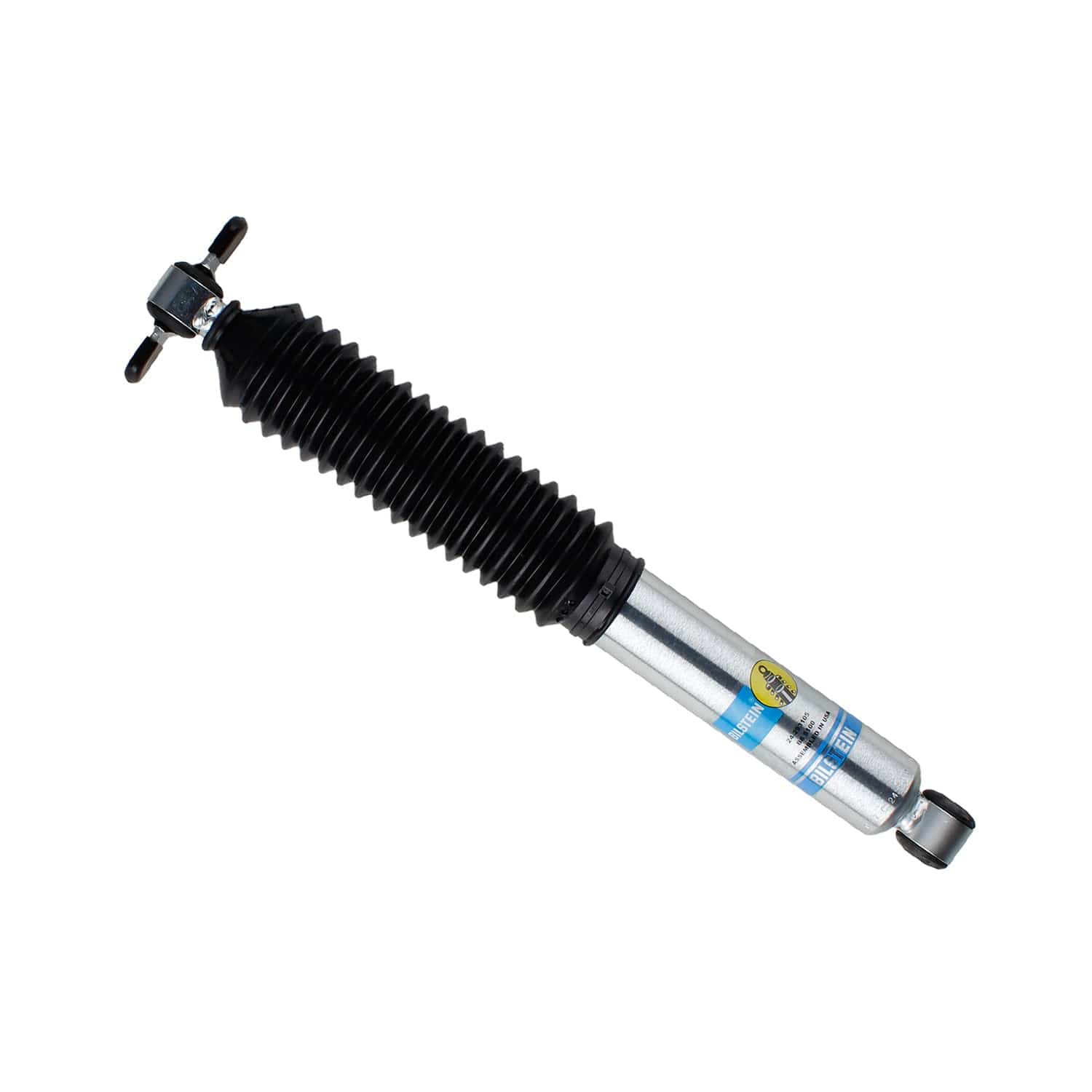

The Bilstein B8 shocks are built for a 1997-2006 Jeep Wrangler that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-293105 |
| Part Name | Shock Absorber |
| Vehicle | 1997-2006 Jeep Wrangler |
| Drivetrain | 4WD |
| UPC | 651860839561 |
| Rear Lift Height | 0 - 2 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 12.81 in. (325.3 mm) |
| Damping Adjustable | No |
| Extended Length | 19.96 in. (507.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.7 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Quantity | Sold Individually |
Vehicle Fitment
- 1997 Jeep Wrangler
- 1998 Jeep Wrangler
- 1999 Jeep Wrangler
- 2000 Jeep Wrangler
- 2001 Jeep Wrangler
- 2002 Jeep Wrangler
- 2003 Jeep Wrangler
- 2004 Jeep Wrangler
- 2005 Jeep Wrangler
- 2006 Jeep Wrangler
