Product Details

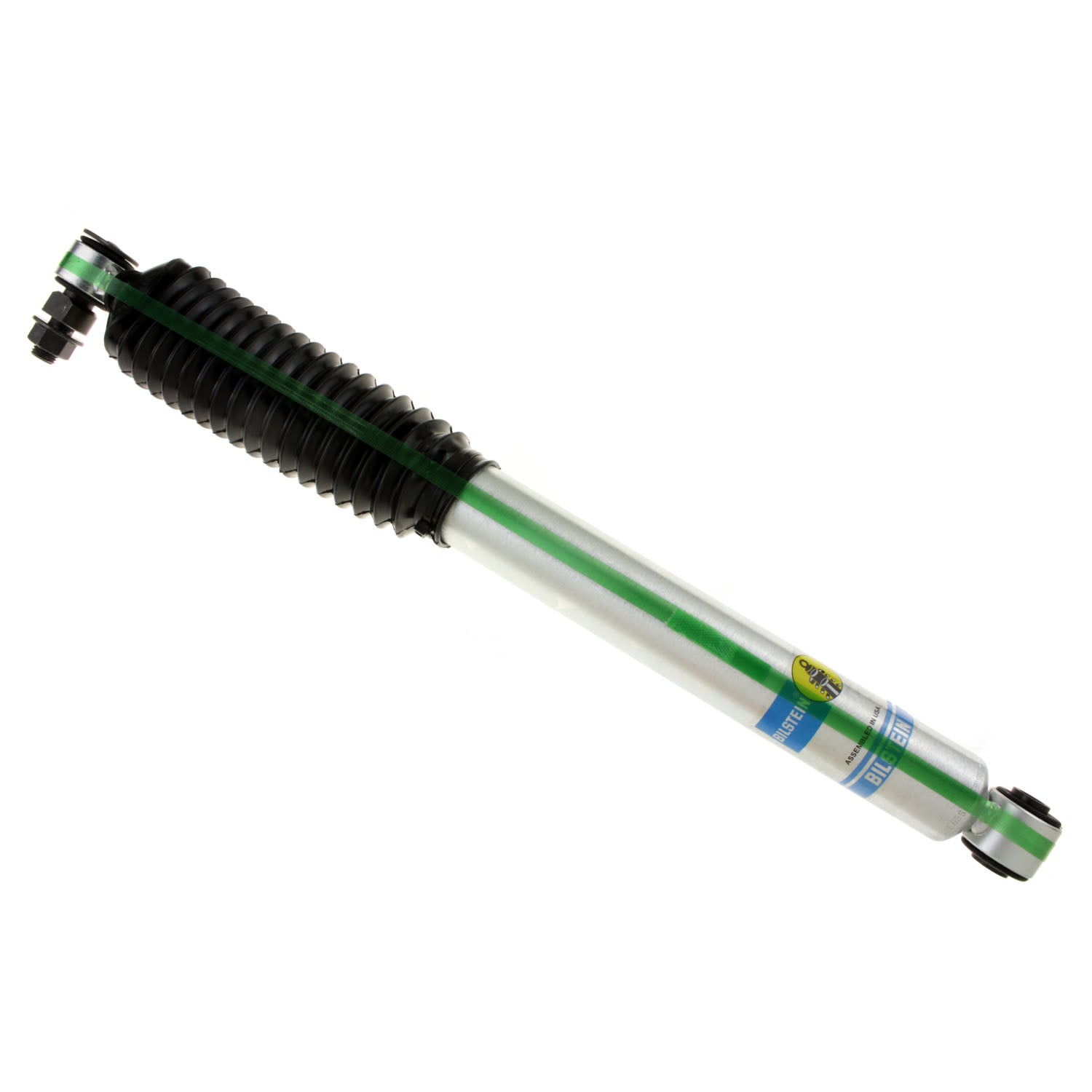

The Bilstein B8 shocks are built for a 1973-1991 GMC Jimmy (C/K) that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 24-187084 |
| Part Name | Shock Absorber |
| Vehicle | 1973-1991 GMC Jimmy |
| Chassis Code | C/K |
| Drivetrain | 4WD |
| UPC | 651860597911 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Bellows |
| Collapsed Length | 16.14 in. (410.0 mm) |
| Damping Adjustable | No |
| Extended Length | 26.15 in. (664.2 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Seat Included | No |
| Upper Mount Type | Cantilever |
| Quantity | Sold Individually |
| Notes | Fits Vehicles With 3-4" Rear Lift |
Vehicle Fitment
- 1973 GMC Jimmy 4WD (C/K)
- 1974 GMC Jimmy 4WD (C/K)
- 1975 GMC Jimmy 4WD (C/K)
- 1976 GMC Jimmy 4WD (C/K)
- 1977 GMC Jimmy 4WD (C/K)
- 1978 GMC Jimmy 4WD (C/K)
- 1979 GMC Jimmy 4WD (C/K)
- 1980 GMC Jimmy 4WD (C/K)
- 1981 GMC Jimmy 4WD (C/K)
- 1982 GMC Jimmy 4WD (C/K)
- 1983 GMC Jimmy 4WD (C/K)
- 1984 GMC Jimmy 4WD (C/K)
- 1985 GMC Jimmy 4WD (C/K)
- 1986 GMC Jimmy 4WD (C/K)
- 1987 GMC Jimmy 4WD (C/K)
- 1988 GMC Jimmy 4WD (C/K)
- 1989 GMC Jimmy 4WD (C/K)
- 1990 GMC Jimmy 4WD (C/K)
- 1991 GMC Jimmy 4WD (C/K)
