Product Details

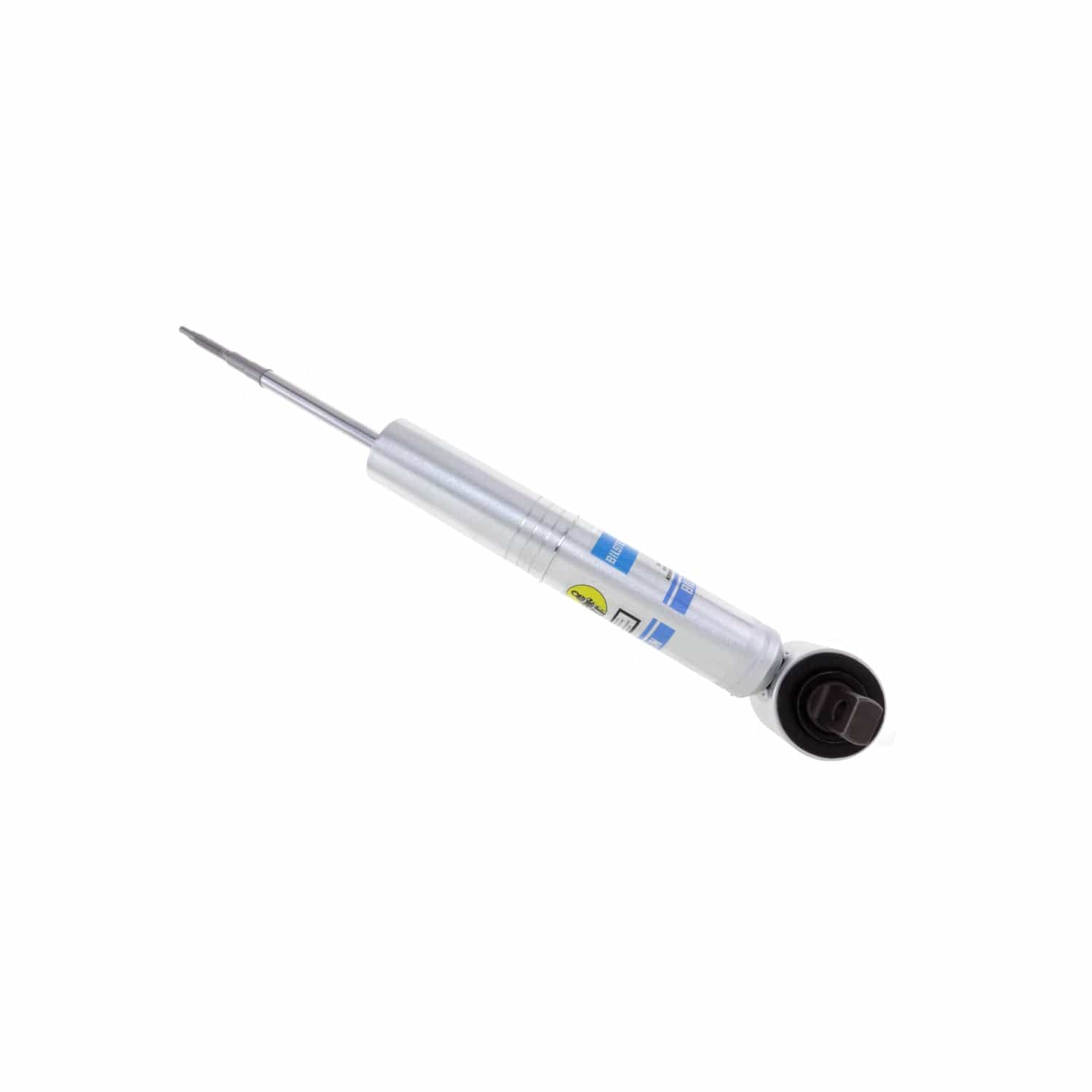

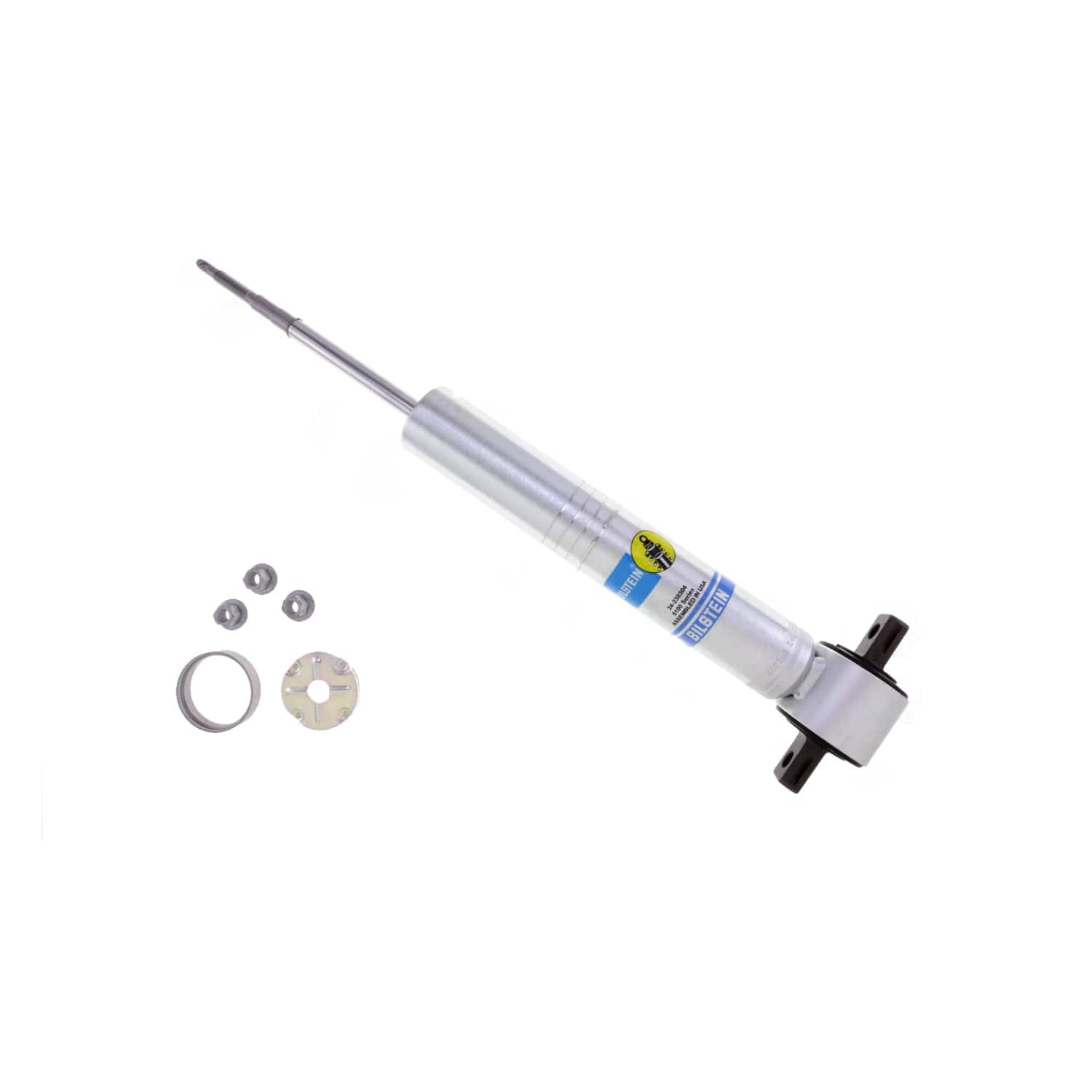

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2019 Chevrolet Silverado 1500 LD are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-238304 |
| Part Name | Shock Absorber |
| Vehicle | 2019 Chevrolet Silverado 1500 LD |
| UPC | 651860746678 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 15.00 in. |
| Collapsed Length | 381.0 mm |
| Damping Adjustable | No |
| Extended Length | 18.86 in. |
| Extended Length | 479.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Provides 0-1.85" Front Lift; Provides 6" Front Lift when utilizing stock length shock with lift spacer |
Vehicle Fitment
- 2019 Chevrolet Silverado 1500 LD
