Product Details

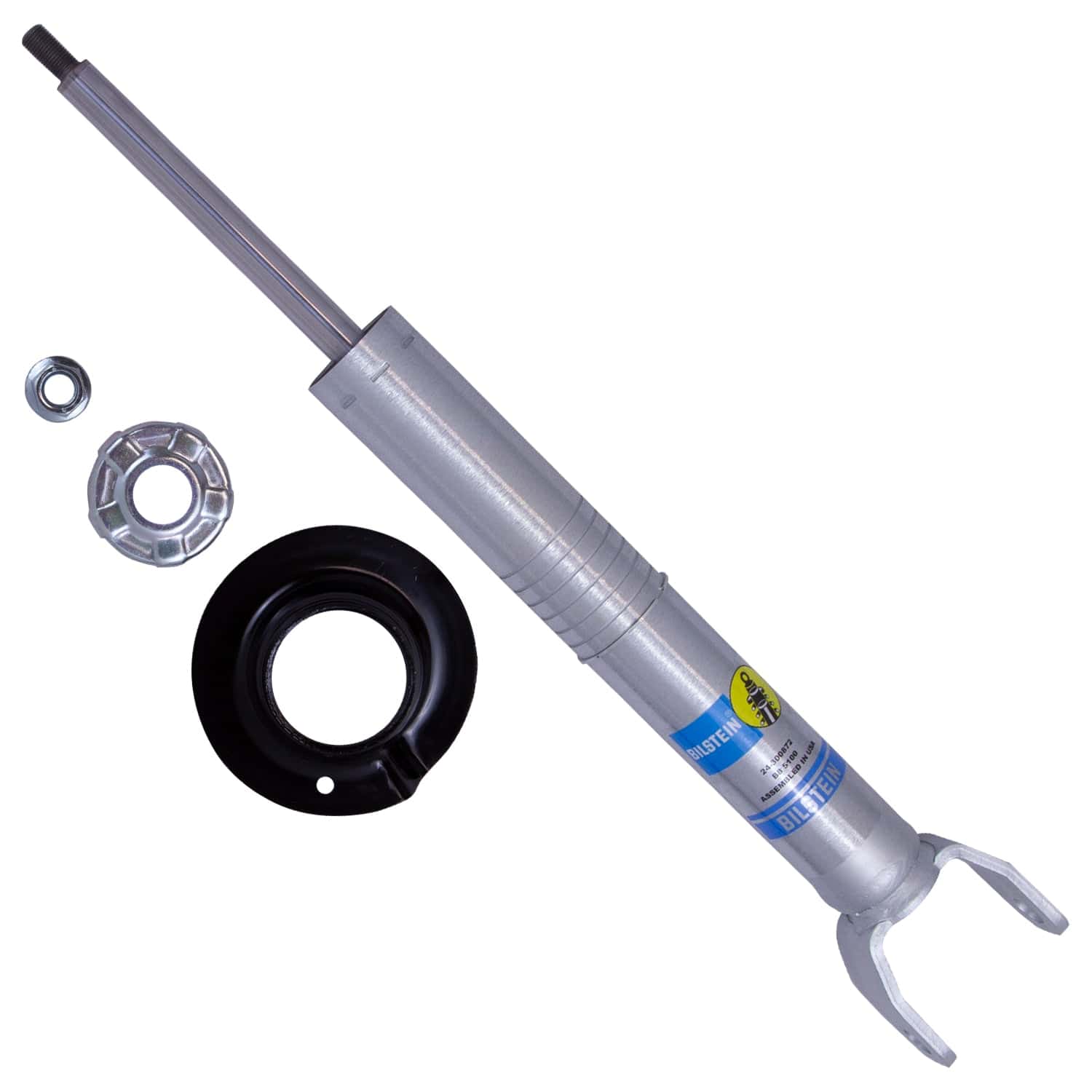

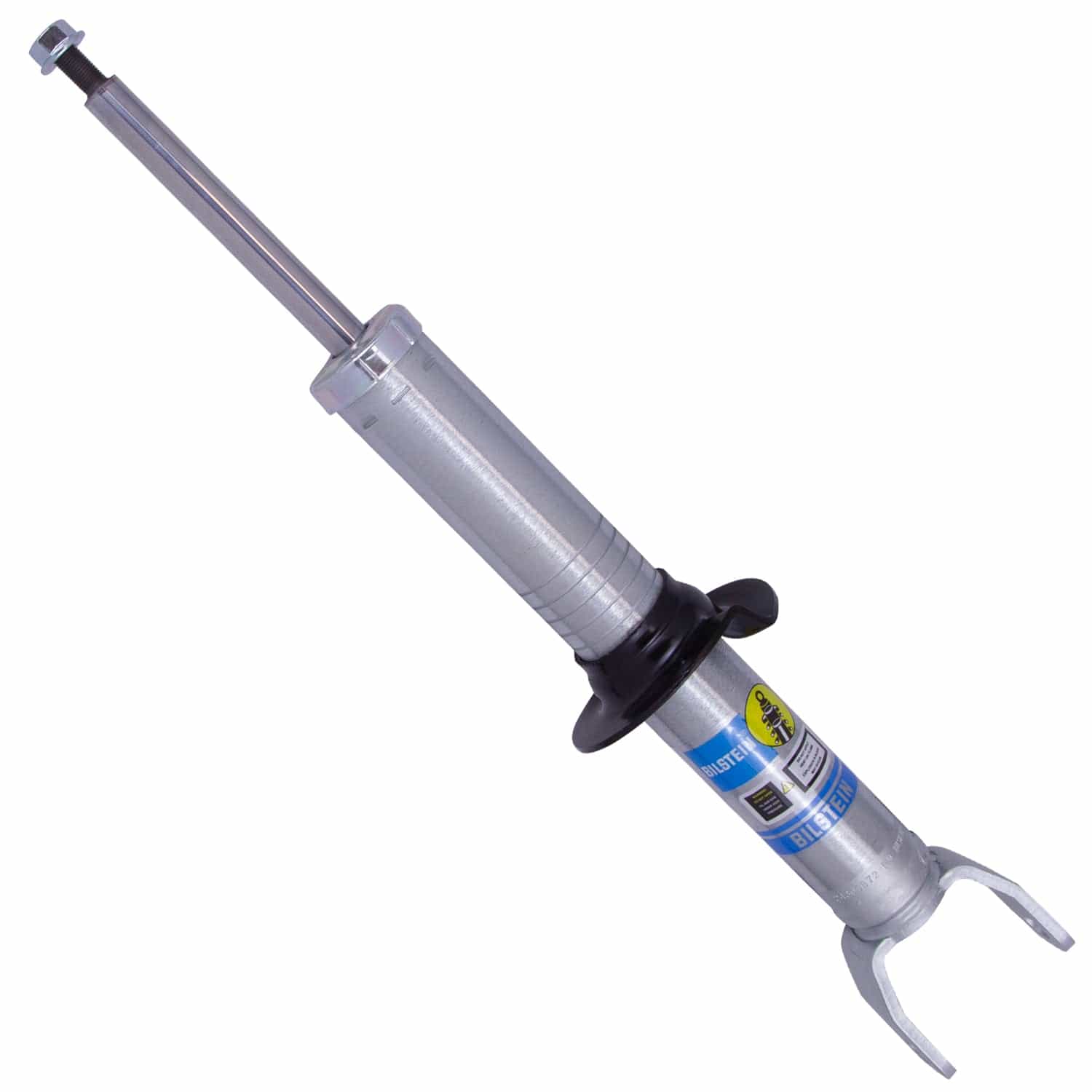

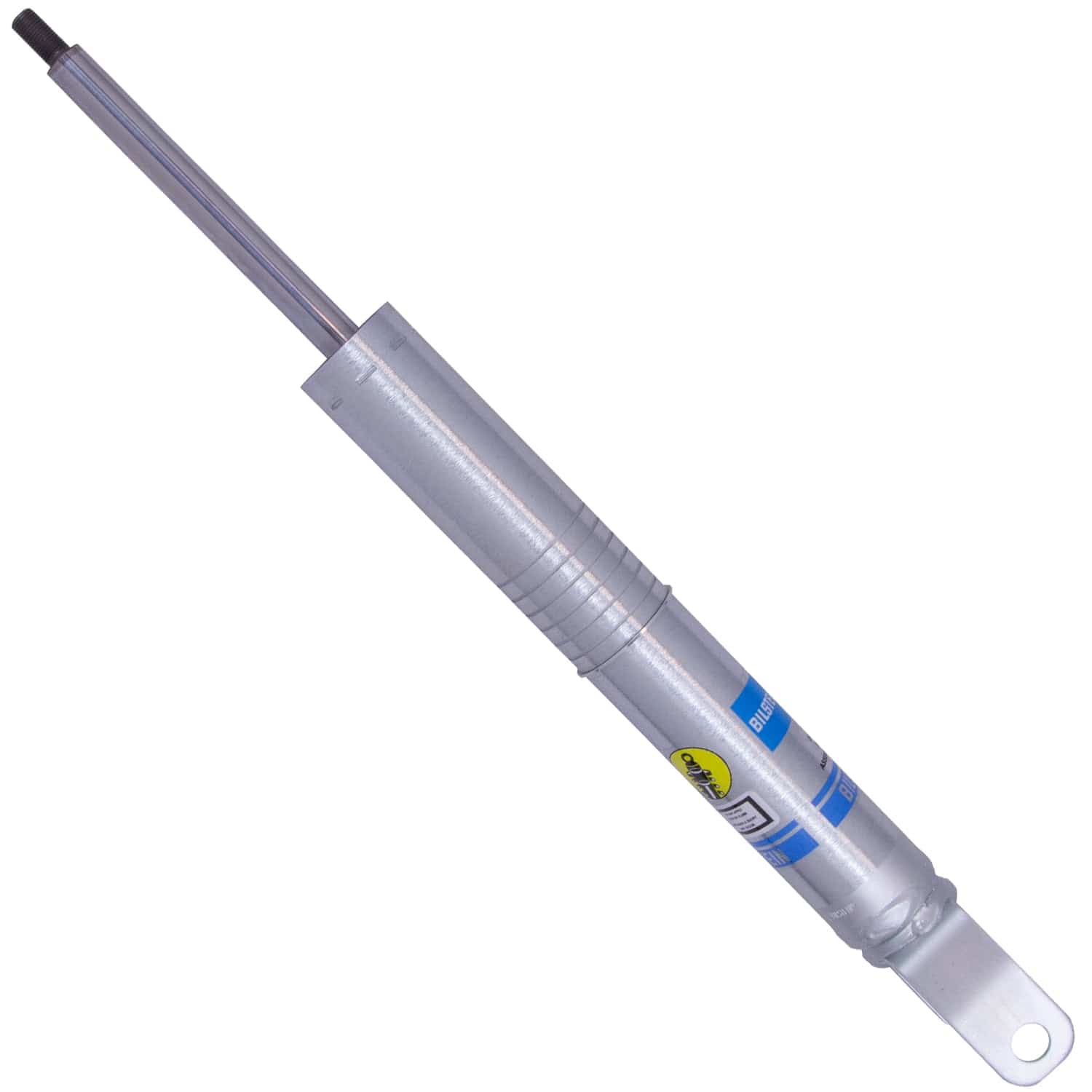

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2019-2026 Ram 1500 (DT) are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-300872 |
| Part Name | Shock Absorber |
| Vehicle | 2019-2026 Ram 1500 |
| Chassis Code | DT |
| UPC | 651860849119 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 16.00 in. |
| Collapsed Length | 406.5 mm |
| Damping Adjustable | No |
| Extended Length | 22.08 in. |
| Extended Length | 560.9 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | Without Air Suspension |
Vehicle Fitment
- 2019 Ram 1500 (DT)
- 2020 Ram 1500 (DT)
- 2021 Ram 1500 (DT)
- 2022 Ram 1500 (DT)
- 2023 Ram 1500 (DT)
- 2024 Ram 1500 (DT)
- 2025 Ram 1500 (DT)
- 2026 Ram 1500 (DT)
