Product Details

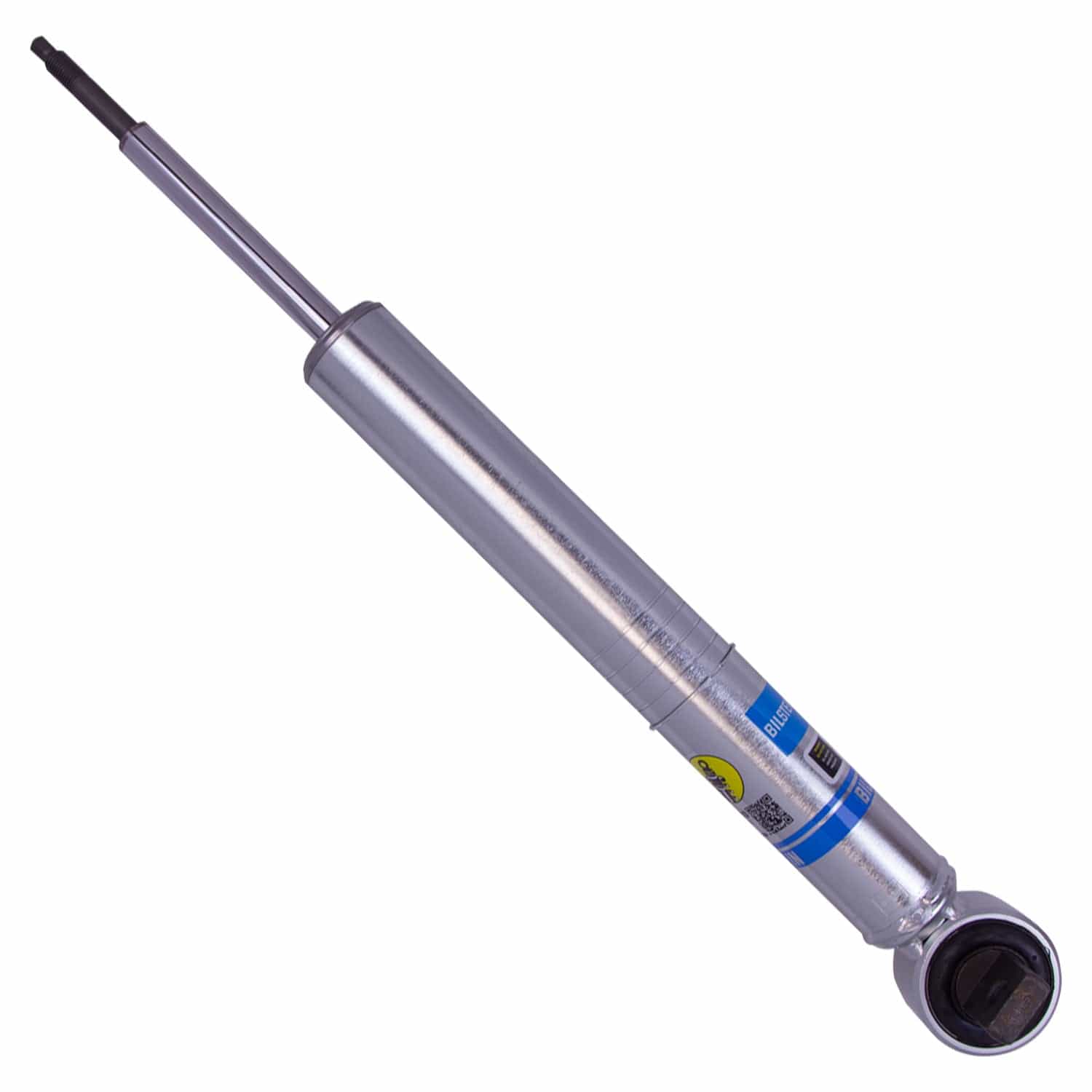

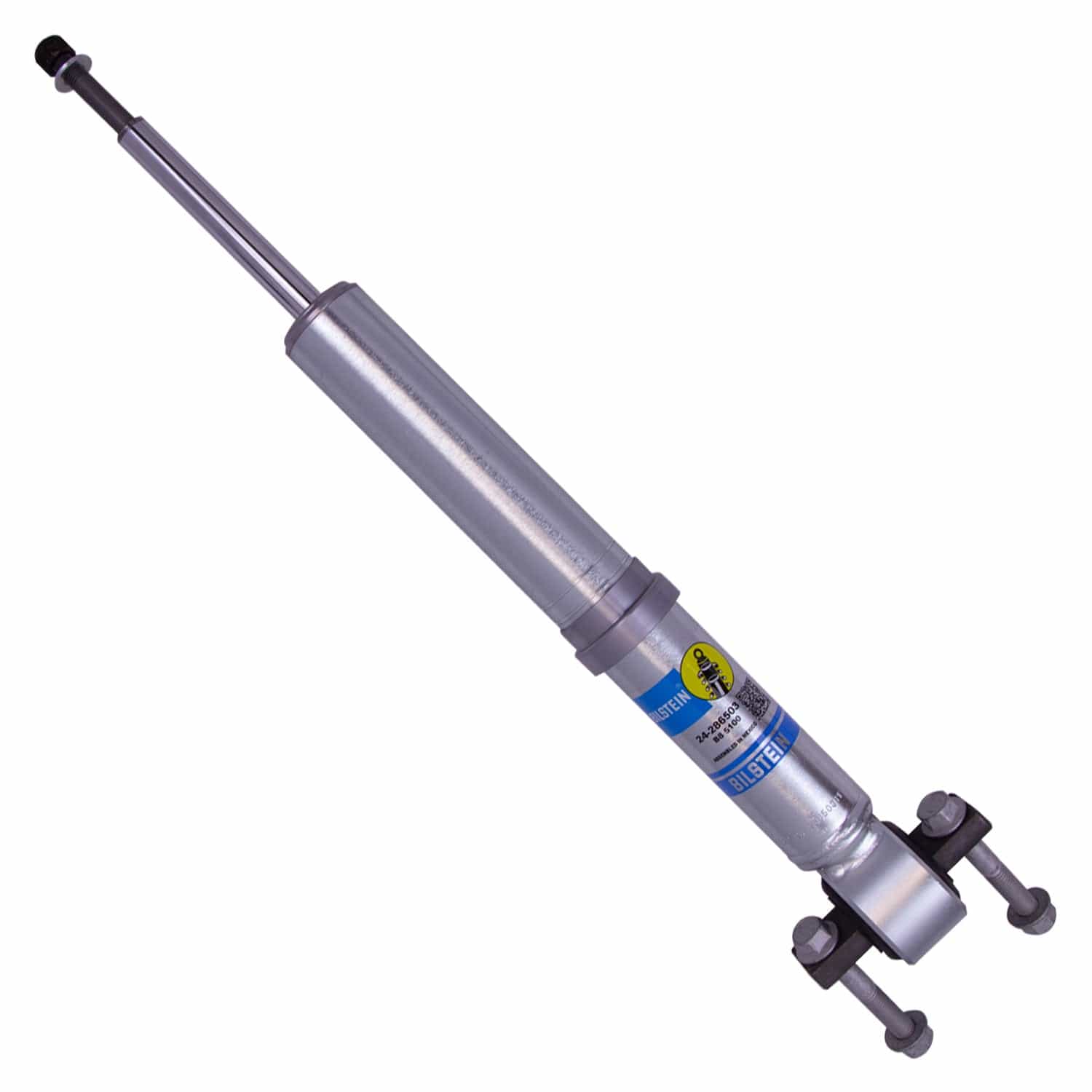

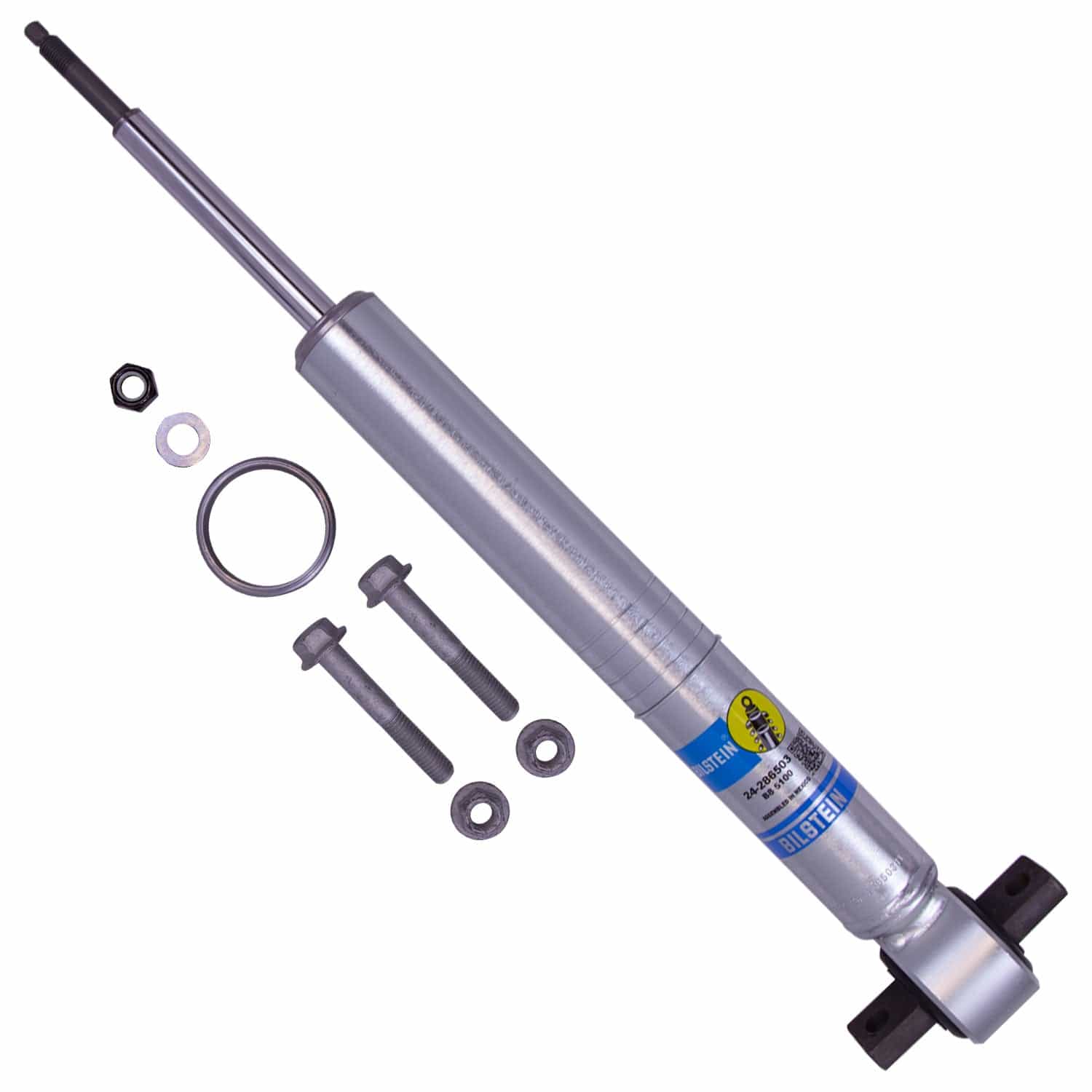

The Bilstein B8 shocks are built for a 2014 Ford F-150 that has been lifted or leveled, valved for the taller ride height rather than fighting it.

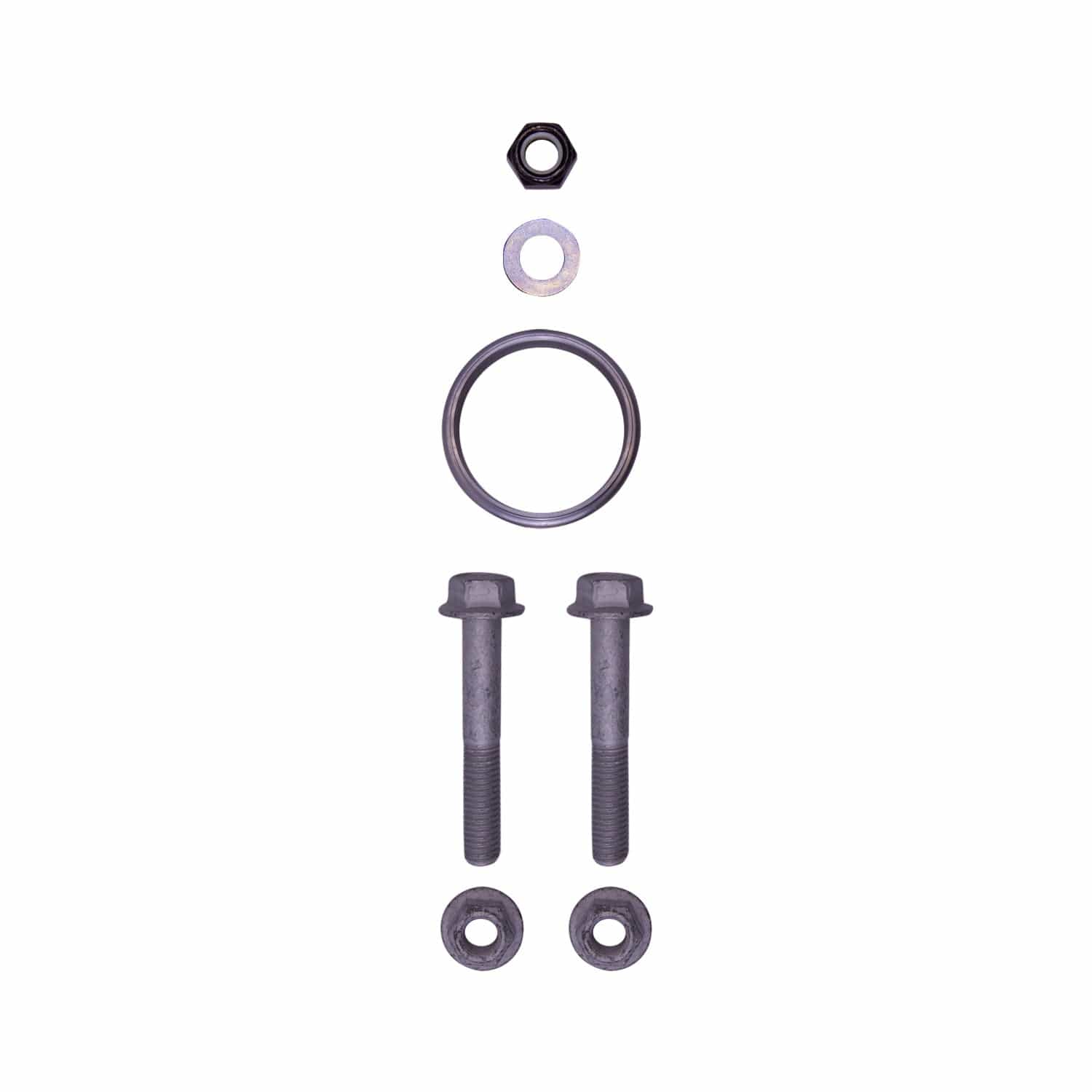

This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Discontinued - Final Sale
Bilstein has discontinued this part. We are selling the remaining stock and it will not be restocked once it is gone. Because of that, all sales on this item are final: it cannot be returned or exchanged. If you want the current-production part instead, Bilstein replaced this one with part 24-336888.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-286503 |
| Part Name | Shock Absorber |
| Vehicle | 2014 Ford F-150 |
| Drivetrain | 4WD |
| UPC | 651860828497 |
| Front Lift Height | 0 - 2.1 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 16.05 in. (407.6 mm) |
| Damping Adjustable | No |
| Extended Length | 21.40 in. (543.6 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Crossbar |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2014 Ford F-150 4WD
