Product Details

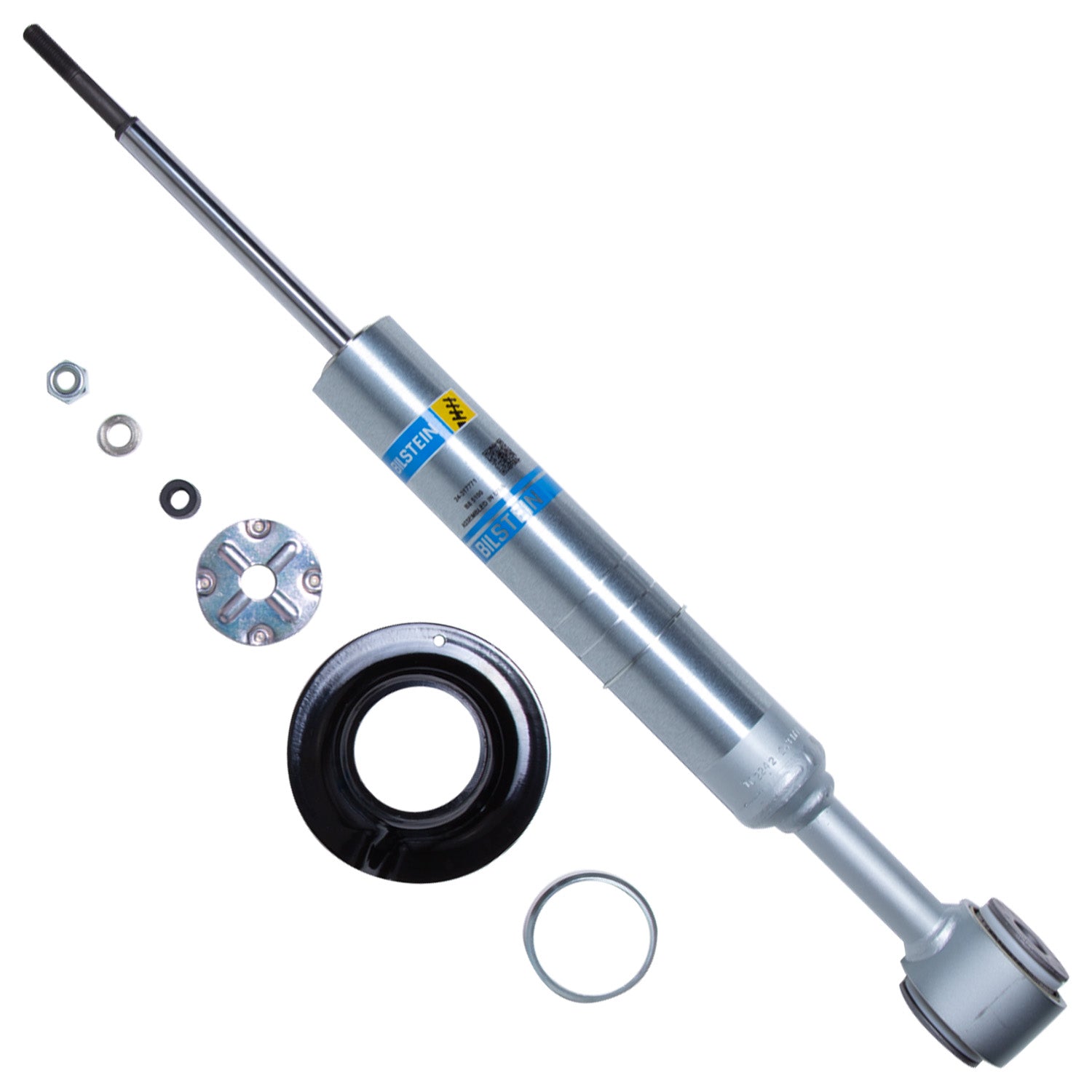

The Bilstein B8 shocks are built for a 2004-2008 Ford F-150 that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Bilstein supplies suspension as original equipment to manufacturers around the world, and applies the same engineering here. It fits the factory mounting points exactly and is covered by a limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-317771 |
| Part Name | Shock Absorber |
| Vehicle | 2004-2008 Ford F-150 |
| Drivetrain | 4WD |
| UPC | 651860917993 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Collapsed Length | 16.34 in. (415.0 mm) |
| Damping Adjustable | No |
| Extended Length | 21.92 in. (556.7 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 20.3 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2004 Ford F-150 4WD
- 2005 Ford F-150 4WD
- 2006 Ford F-150 4WD
- 2007 Ford F-150 4WD
- 2008 Ford F-150 4WD
