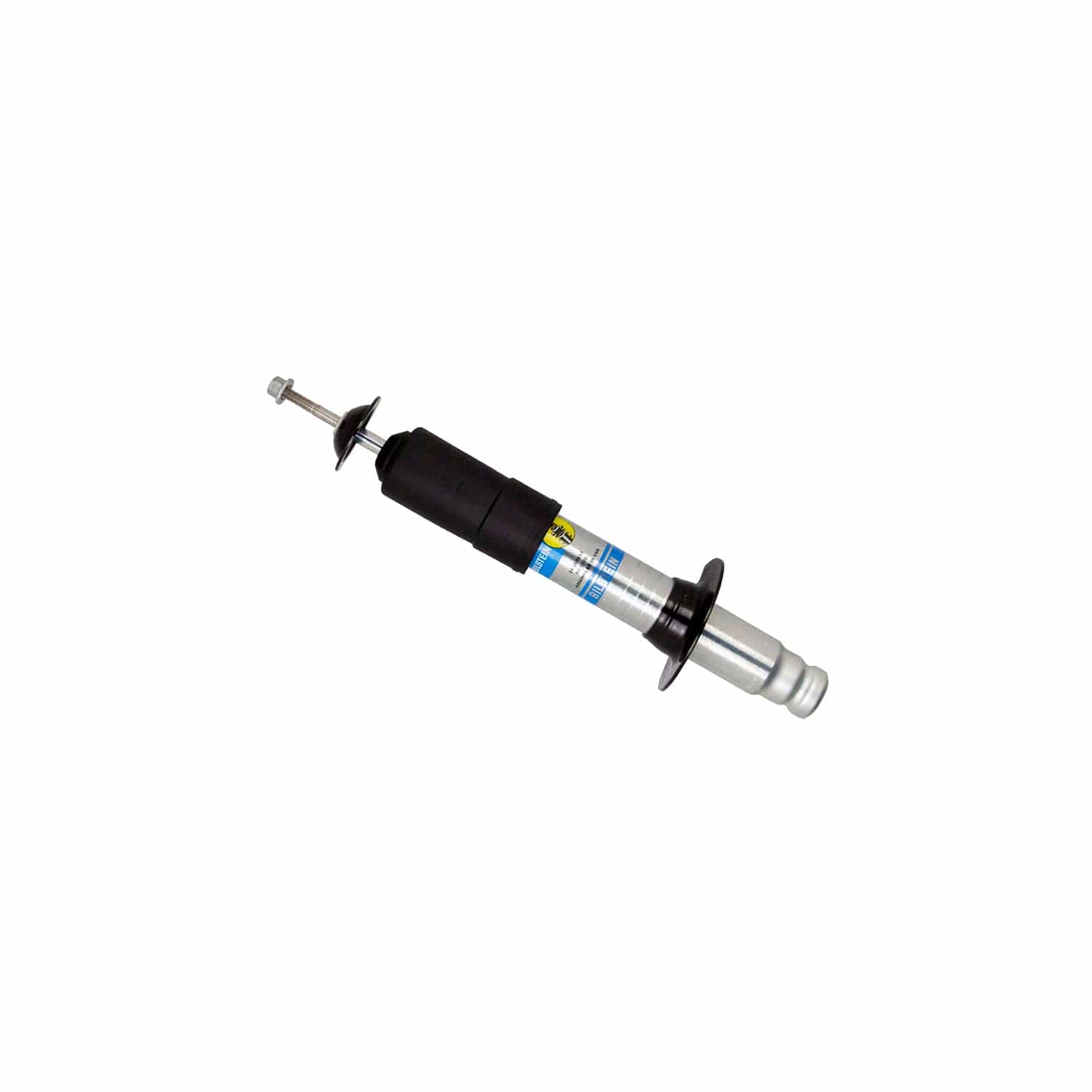

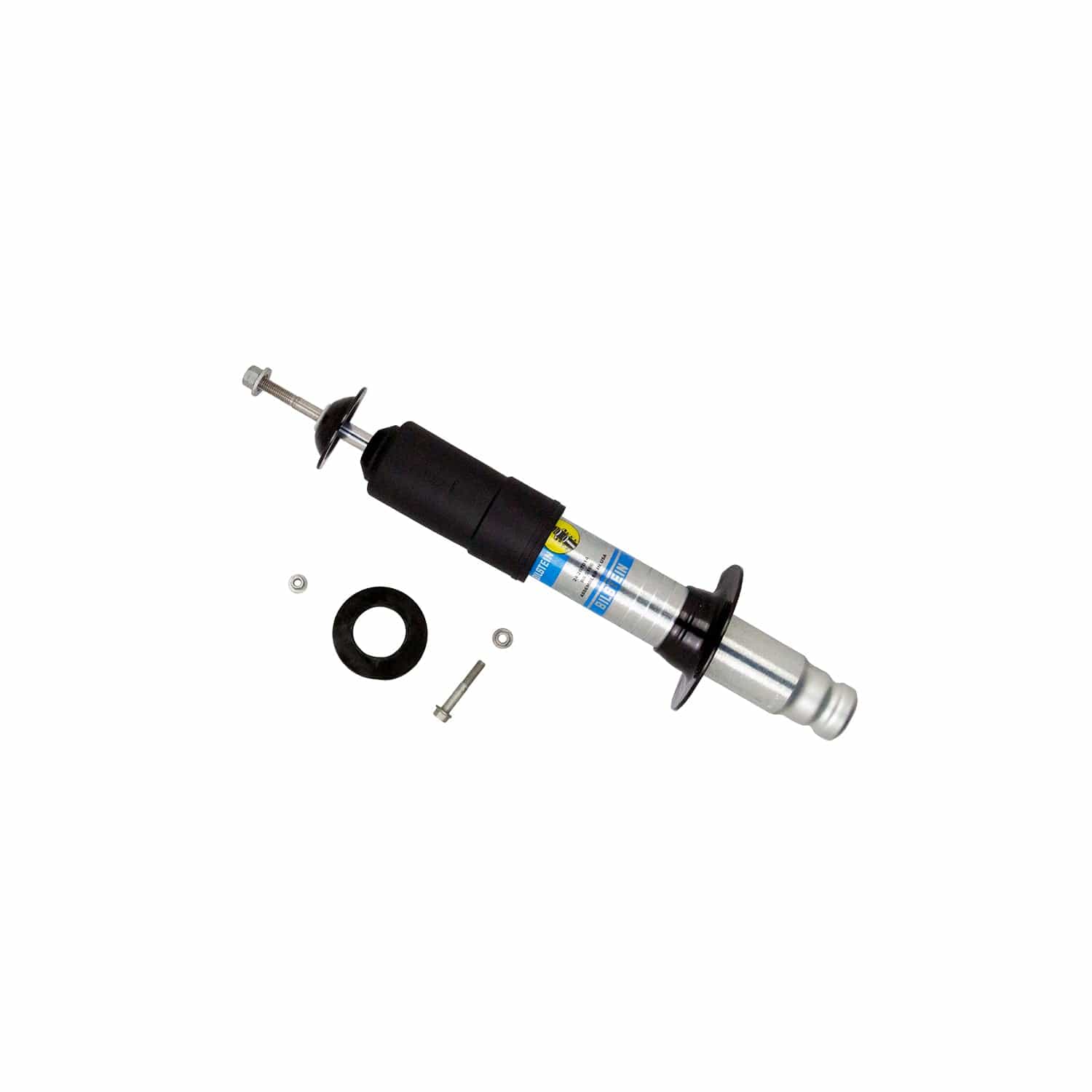

Product Details
Lifting or leveling a 2002-2006 GMC Envoy XL changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
The monotube design is what sets Bilstein apart. A single high-pressure gas chamber keeps the oil from aerating, so the damping stays consistent on a rough road instead of fading as the unit heats up.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Part Number | 24-267014 |
| Part Name | Shock Absorber |
| Vehicle | 2002-2006 GMC Envoy XL |
| Drivetrain | 4WD |
| UPC | 651860804521 |
| Front Lift Height | 0 - 2.25 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | Black Straight |
| Collapsed Length | 11.26 in. (286.1 mm) |
| Damping Adjustable | No |
| Extended Length | 16.41 in. (416.9 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Base Cup |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |

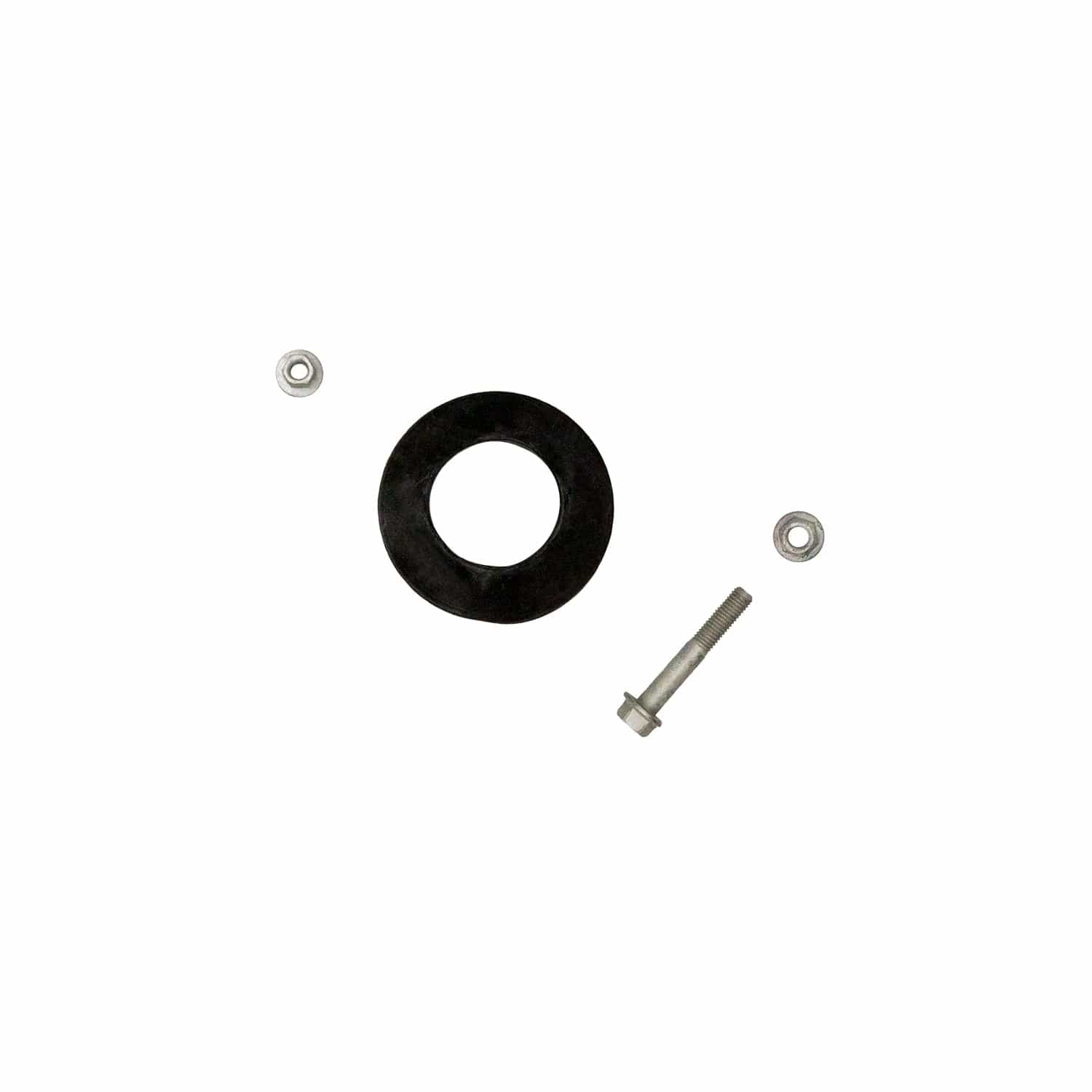

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2002 GMC Envoy XL
- 2003 GMC Envoy XL
- 2004 GMC Envoy XL
- 2005 GMC Envoy XL
- 2006 GMC Envoy XL
