Product Details

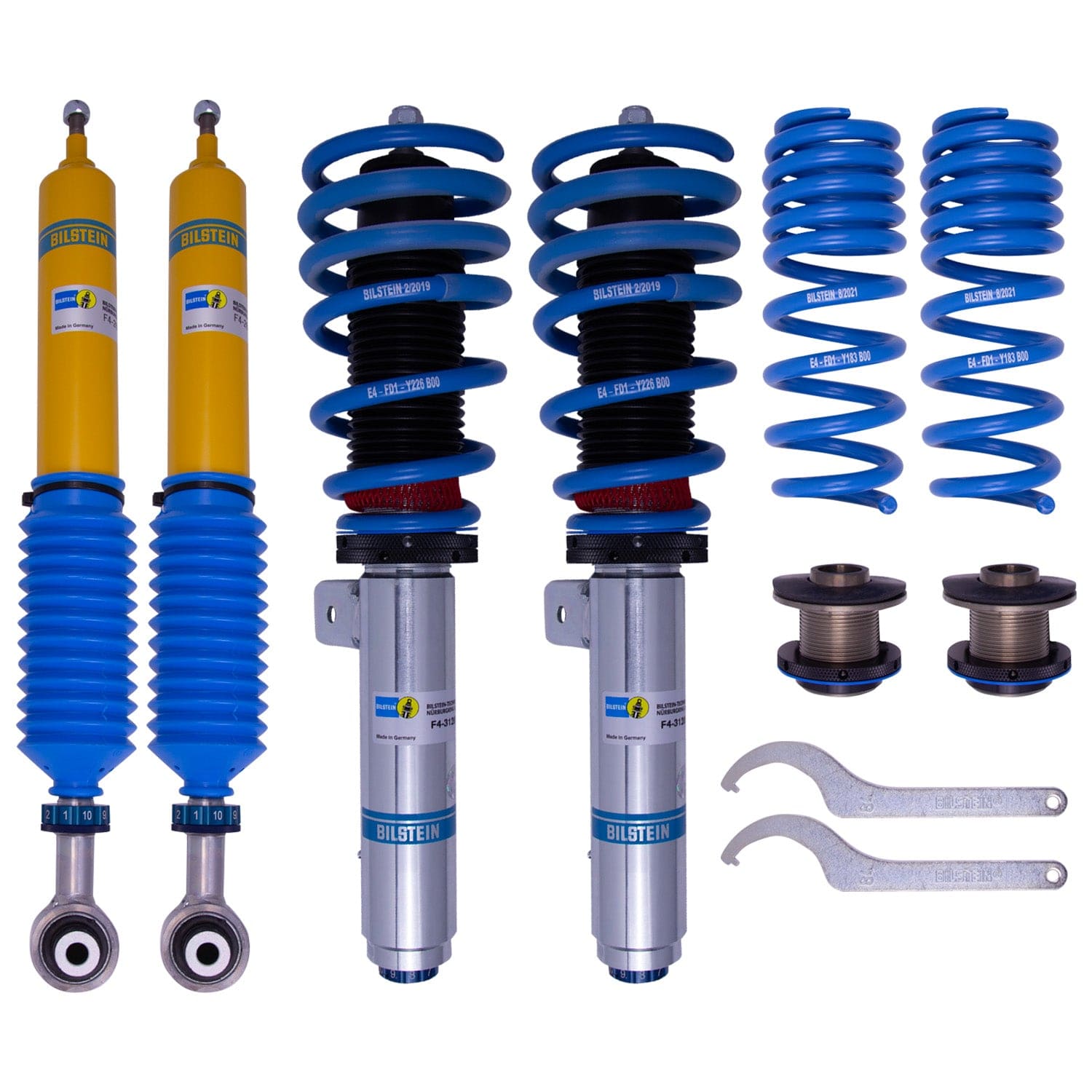

With the Bilstein B16 kit the 2017-2021 BMW 230i xDrive (F22/F23) adjusts in two directions: how low it sits, and how firmly it is damped. Set it soft for the road, wind it up for a session.
Built in Germany to original-equipment standards and finished to survive road salt and grit, this is a bolt-in part with no modification required. Backed by Bilstein's limited lifetime warranty.
Features
- Quick and easy damping level adjustment
- Threaded body allows lowering of approximately 30mm to 50mm
- Tested by our engineers under motorsport conditions
Specifications
| Part Number | 48-207287 |
| Part Name | Suspension Kit |
| Vehicle | 2017-2021 BMW 230i xDrive |
| Chassis Code | F22/F23 |
| Drivetrain | AWD |
| UPC | 651860742090 |
| Ride-Height Adjustable | Yes |
| Damping Adjustment | 4-Way |
| Front Lowered Height | 30 - 50 mm |
| Finish | Dampers: Zinc Front Yellow Rear / Springs: Blue |
| Internal Design | Monotube |
| Segment | Tuning |
| Series | B16 (PSS10) |
| Quantity | Full Set (Front & Rear) |
| Notes | Up to 1020kg Axle Load; Rear Lowered Height: 30-50mm, up to 1120kg Axle Load; Standard Version without Electronic Suspension |
Vehicle Fitment
- 2017 BMW 230i xDrive (F22/F23)
- 2018 BMW 230i xDrive (F22/F23)
- 2019 BMW 230i xDrive (F22/F23)
- 2020 BMW 230i xDrive (F22/F23)
- 2021 BMW 230i xDrive (F22/F23)
