Product Details

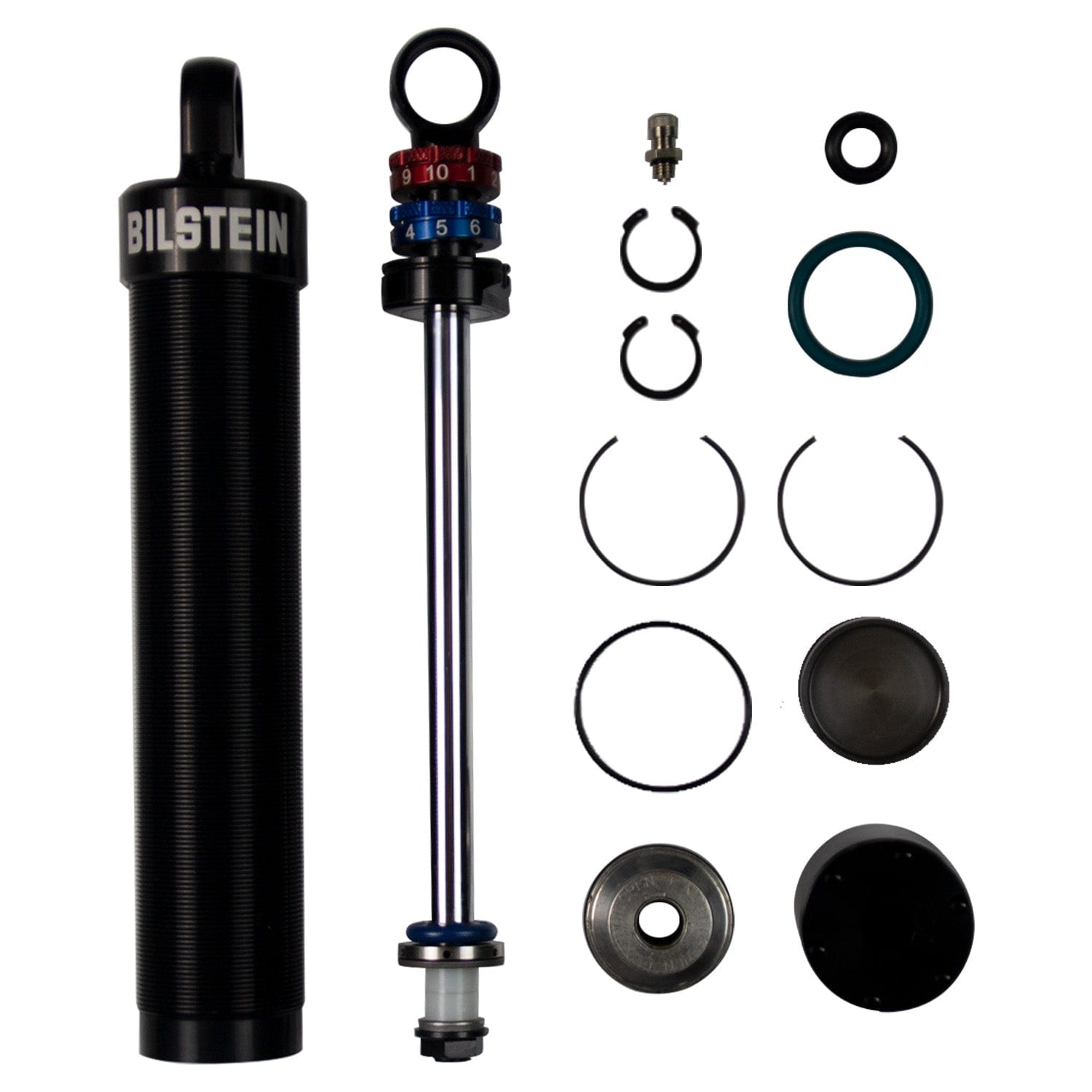

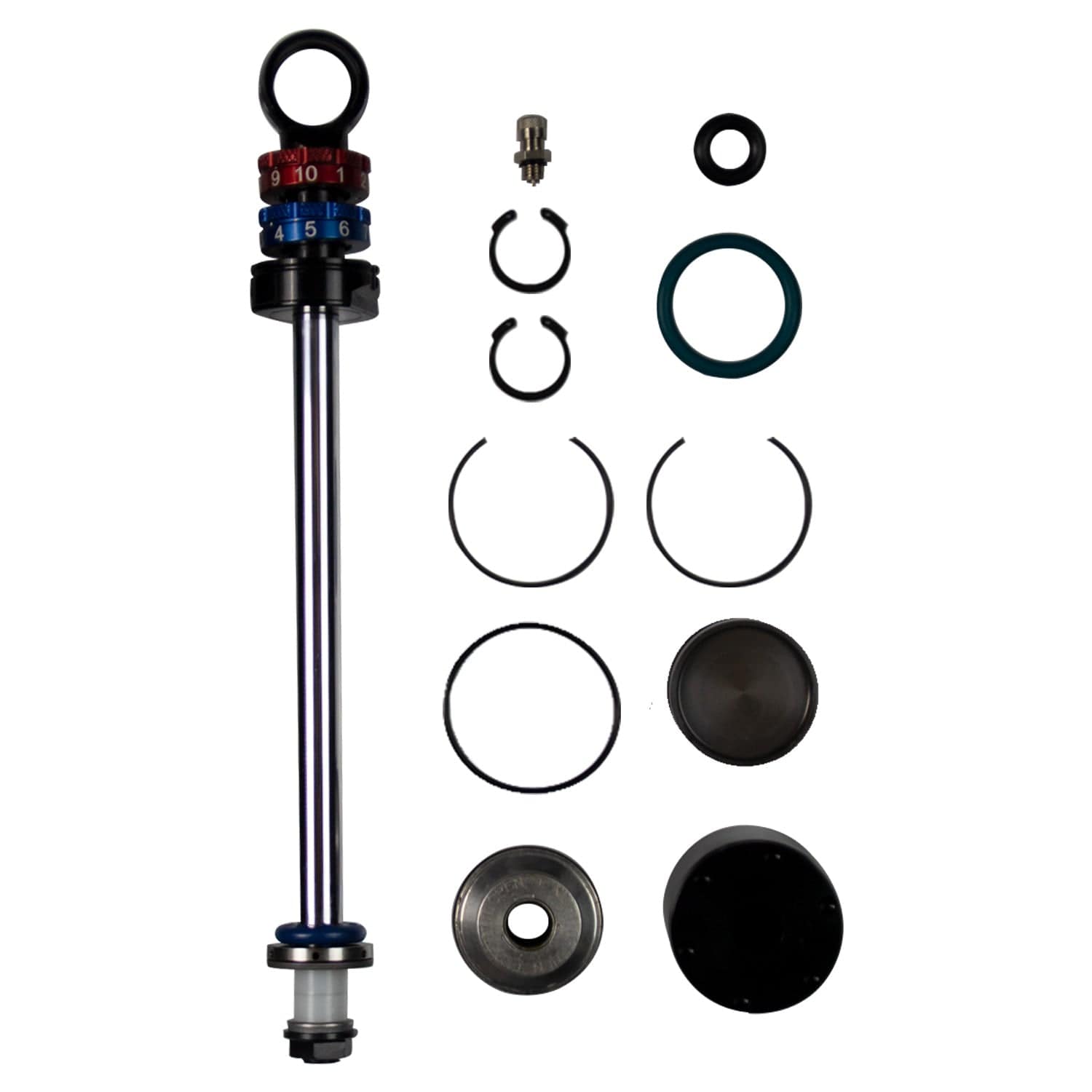

The Bilstein AS2 Series shock absorber is specified by dimension rather than by vehicle, here at 20.05 in. extended. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features

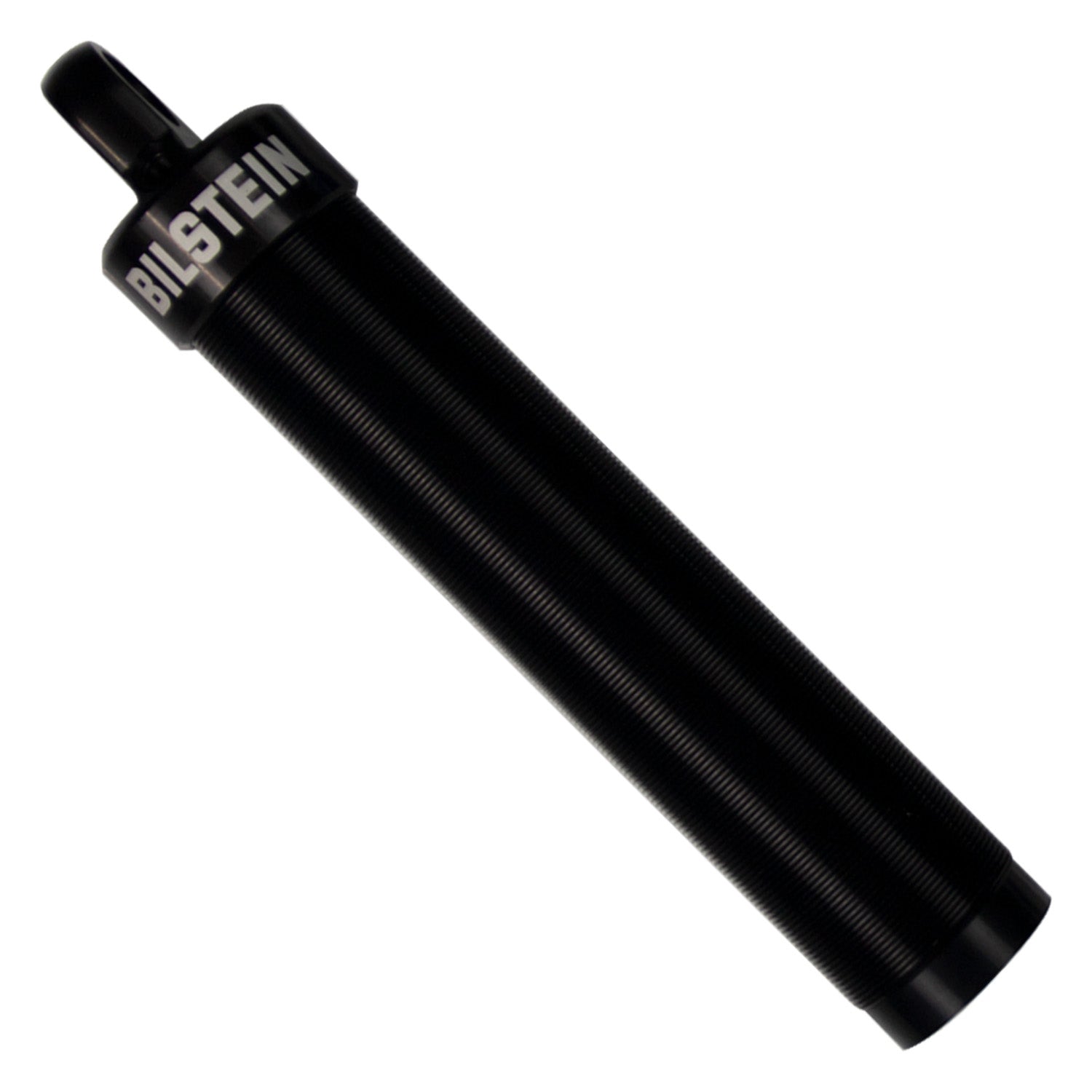

- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
Specifications
| Part Number | 33-315492 |
| Part Name | Shock Absorber |
| UPC | 651860873817 |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 13.86 in. (352.0 mm) |
| Damping Adjustable | Yes |
| Extended Length | 20.05 in. (509.2 mm) |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | Sold Separately |
| Piston Type | Sold Separately |
| Segment | Motorsports |
| Series | AS2 Series |
| Spring Seat Included | No |
| Upper Mount Type | Sold Separately |
| Valving Identifier | Dry Kit (No Valving) |
| Quantity | Sold Individually |
