Product Details

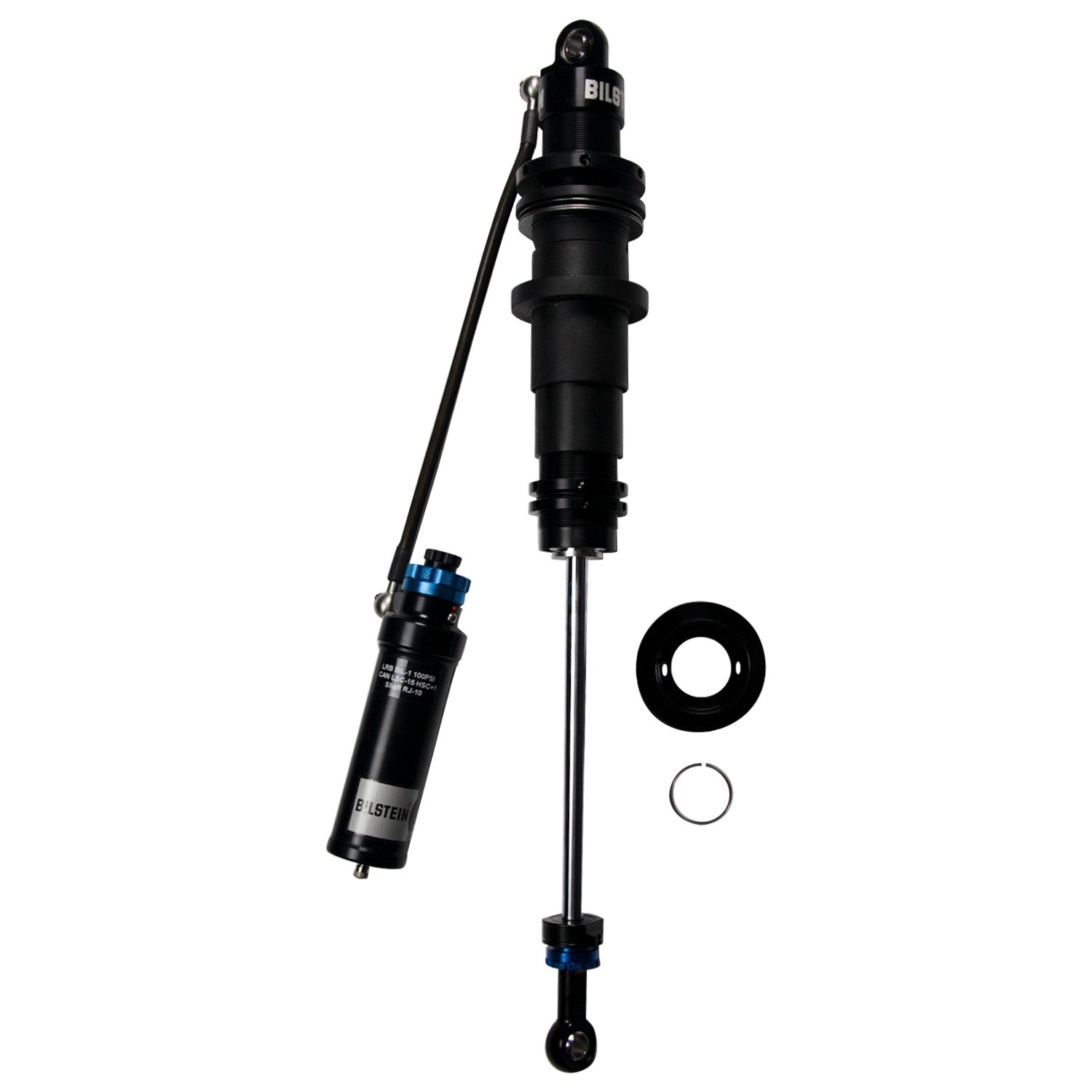

Bilstein AS2-R Series Suspension Shock Absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein's AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series Suspension Shock Absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.
Note: Product Images may not represent the actual Sku
Standard Features
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
- Triple Adjustable - Rebound and High and Low Speed Compression
Specifications
| Part Number | 33-348872 |
| Part Name | Shock Absorber |
| UPC | 651860941431 |
| Adjustment Type | 1-Way |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Aluminum |
| Collapsed Length | 15.14 in. |
| Collapsed Length | 384.5 mm |
| Damping Adjustable | Yes |
| Extended Length | 23.25 in. |
| Extended Length | 590.5 mm |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Digressive |
| Segment | Motorsports |
| Series | AS2-R Series |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | RR Arizona |
| Quantity | Sold Individually |
