Product Details

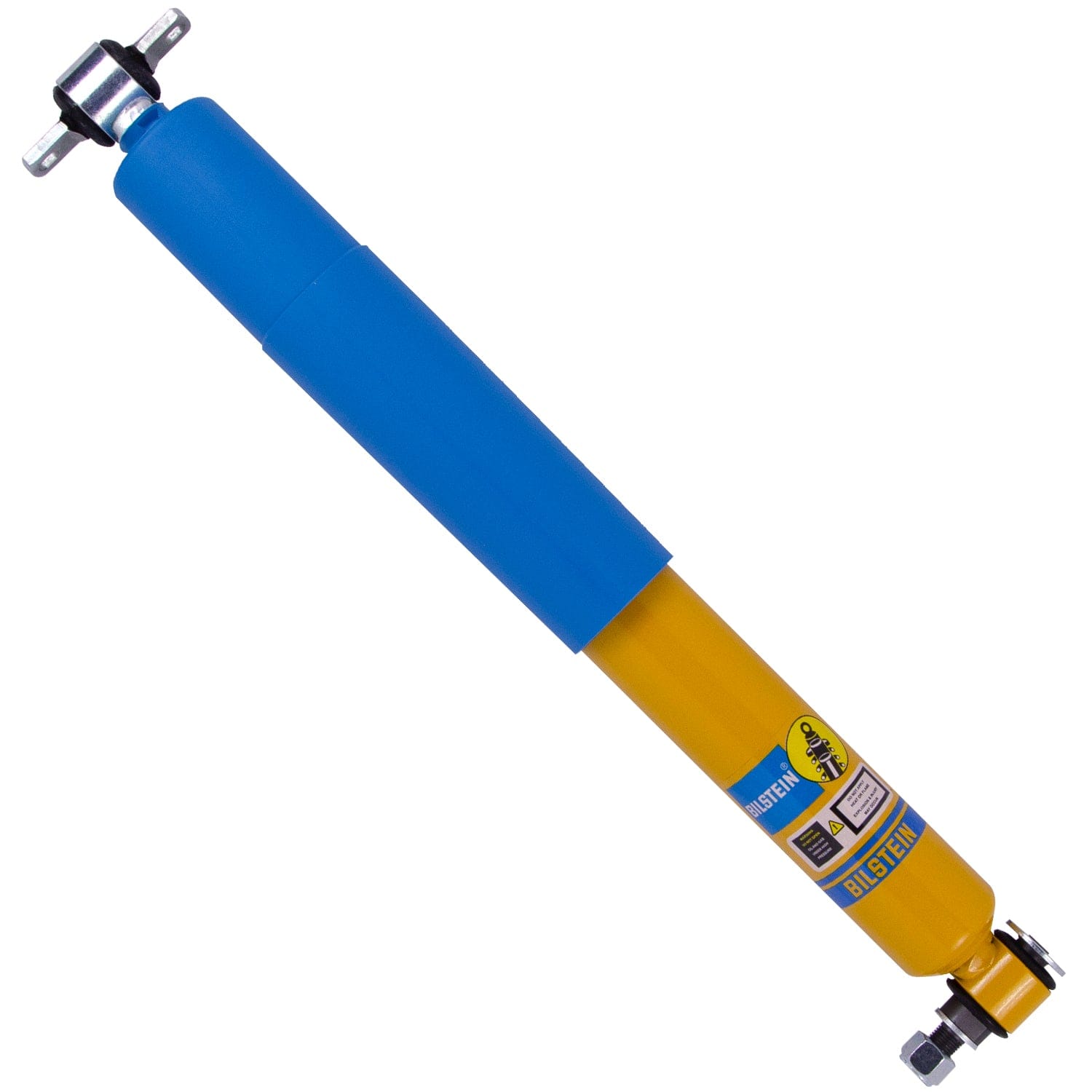

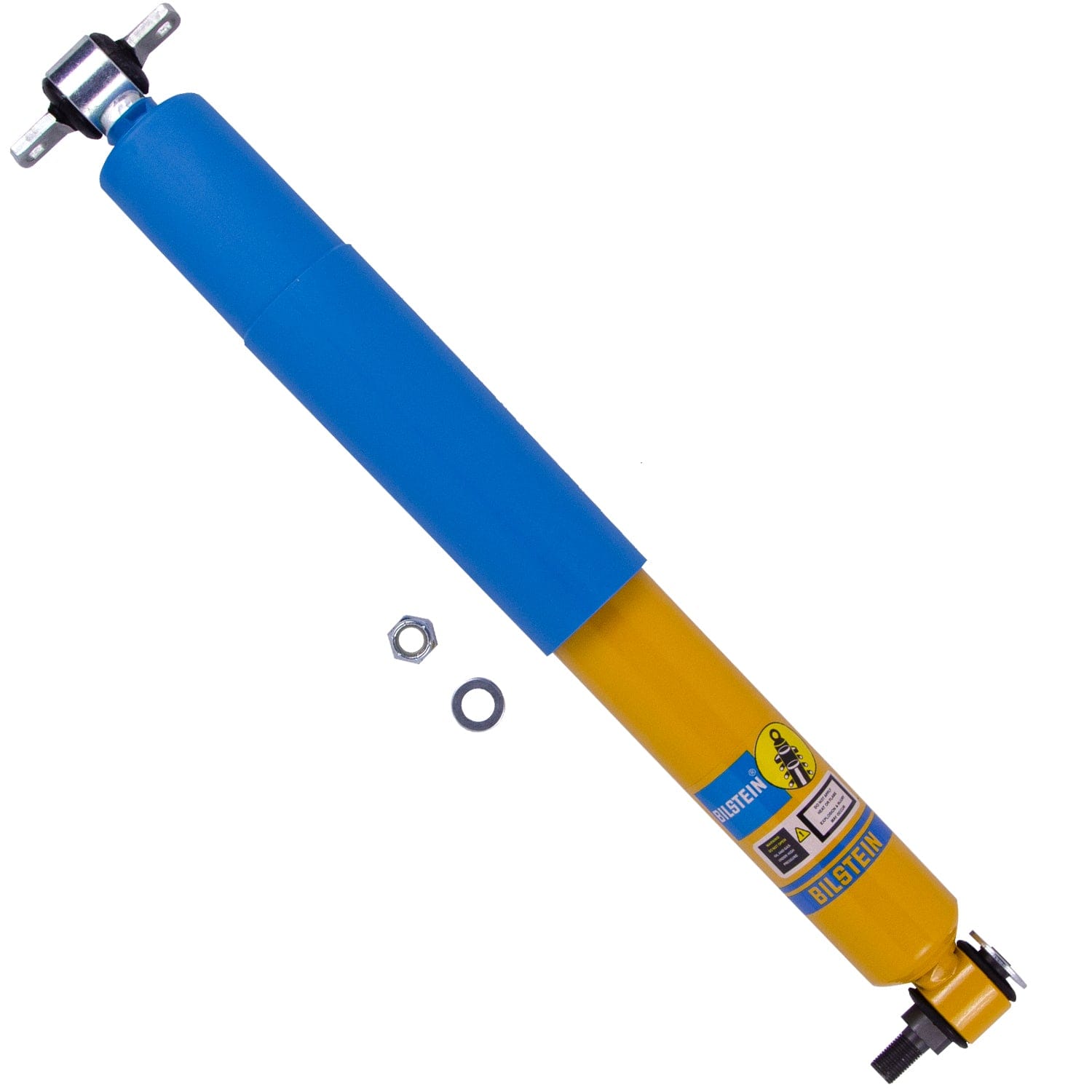

Bilstein shocks for the 1968-1972 Pontiac GTO, engineered and built in Germany to the standard that made the name.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | 24-291699 |
| Part Name | Shock Absorber |
| Vehicle | 1968-1972 Pontiac GTO |
| Drivetrain | RWD |
| UPC | 651860839318 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | Blue Straight |
| Collapsed Length | 13.11 in. (333.0 mm) |
| Compression @ 0.26m/s | 630 |
| Damping Adjustable | No |
| Extended Length | 20.28 in. (515.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Cantilever |
| Piston Type | Linear |
| Rebound @ 0.26m/s | 1130 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Valving Identifier | 254/141 |
| Quantity | Sold Individually |
| Notes | Without Self-Leveling Suspension |
Vehicle Fitment
- 1968 Pontiac GTO
- 1969 Pontiac GTO
- 1970 Pontiac GTO
- 1971 Pontiac GTO
- 1972 Pontiac GTO
