Product Details

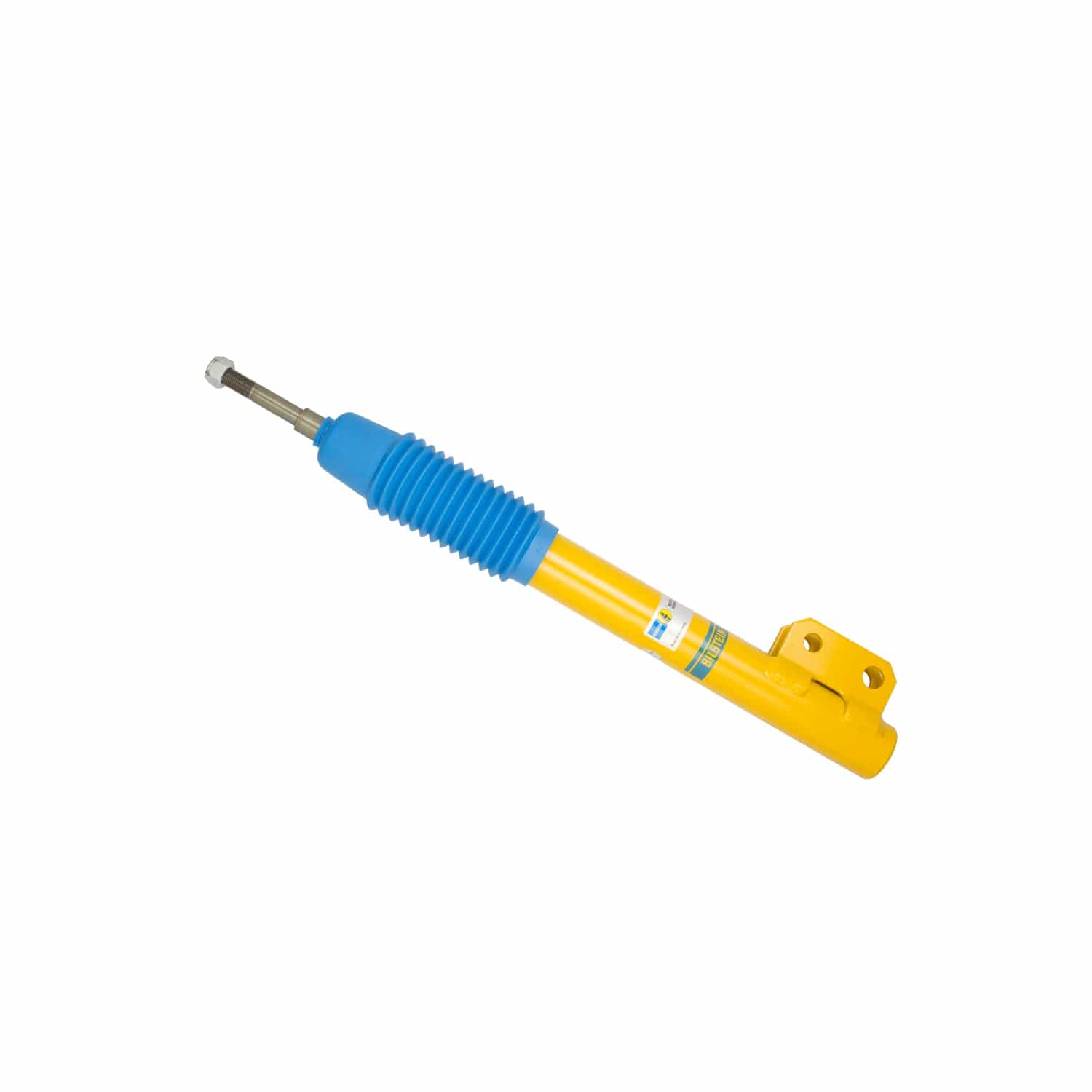

The Bilstein AK Series strut assembly is sold for custom and motorsport builds. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | AK1199 |
| Part Name | Strut Assembly |
| UPC | 790832511996 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | Blue Straight |
| Collapsed Length | 15.98 in. (406.0 mm) |
| Compression @ 0.26m/s | 520 |
| Damping Adjustable | No |
| Extended Length | 21.42 in. (544.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Bracket |
| Piston Type | Linear |
| Rebound @ 0.26m/s | 1165 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Valving Identifier | 224/122 |
| Quantity | Sold Individually |
