Product Details

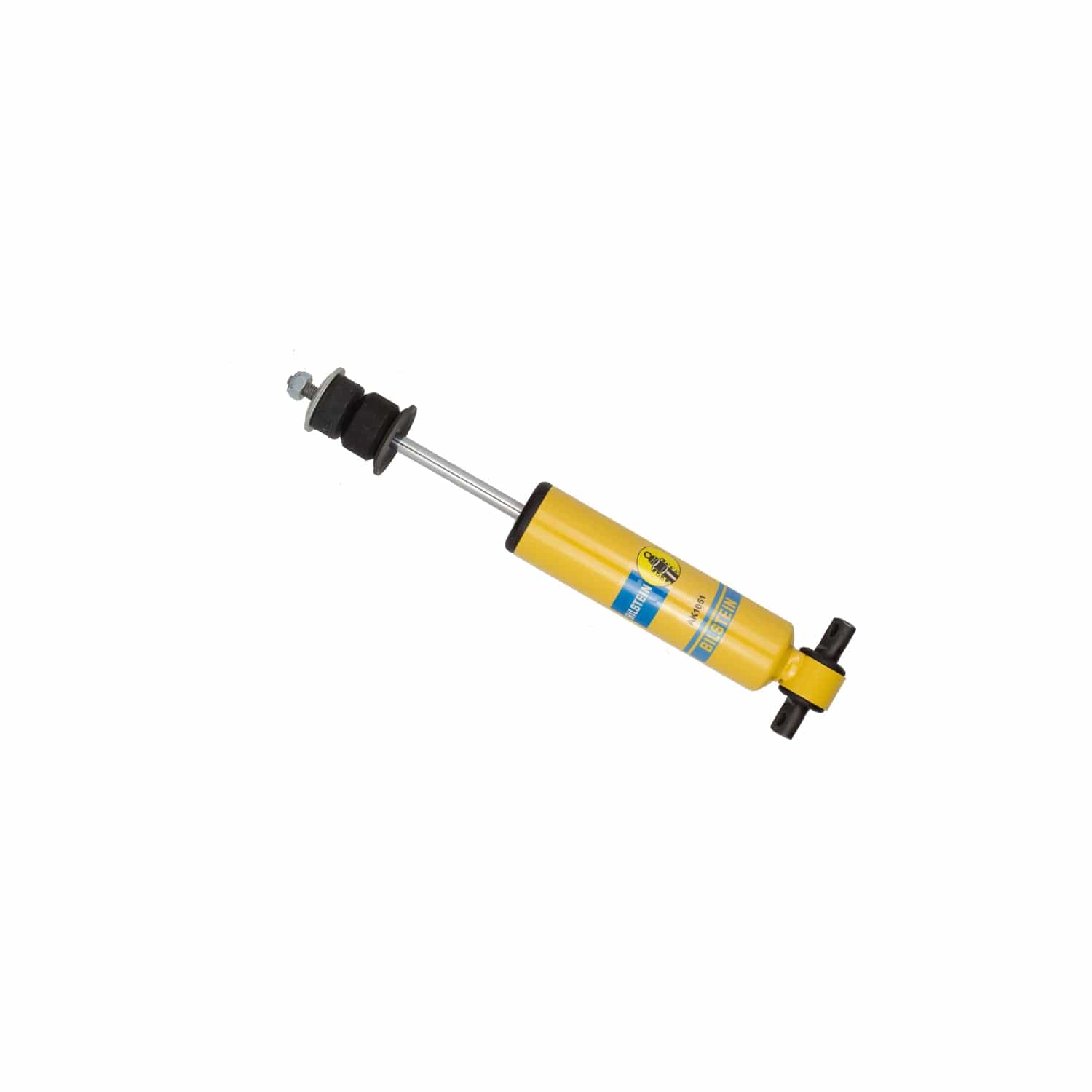

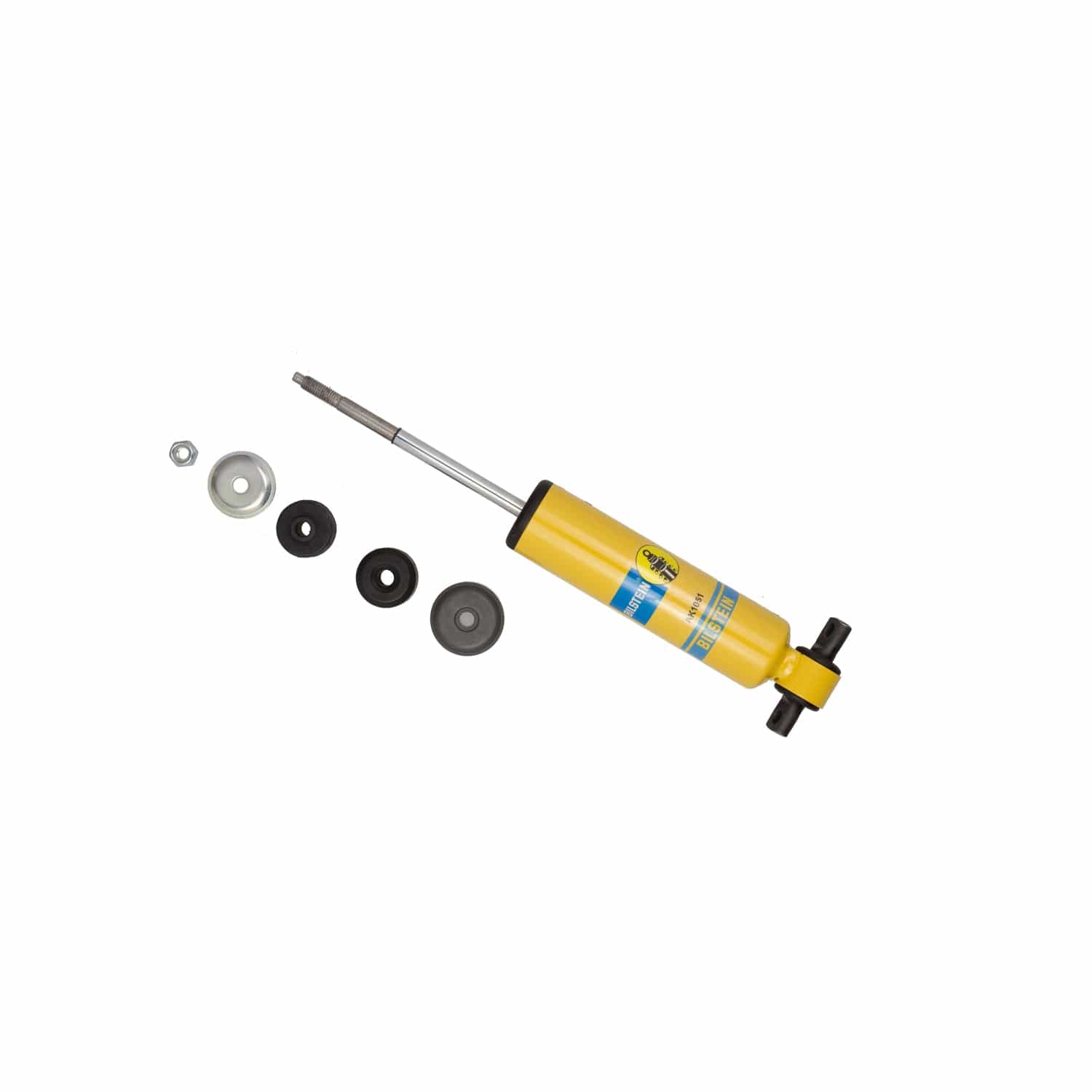

The Bilstein AK Series shock absorber is specified by dimension rather than by vehicle, here at 8.27 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | AK1051 |
| Part Name | Shock Absorber |
| UPC | 790832510517 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 8.27 in. (210.0 mm) |
| Compression @ 0.26m/s | 1360 |
| Damping Adjustable | No |
| Extended Length | 11.93 in. (303.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Bar Pin |
| Piston Type | Linear |
| Rebound @ 0.26m/s | 2800 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Valving Identifier | 393/172 |
| Quantity | Sold Individually |
