Product Details

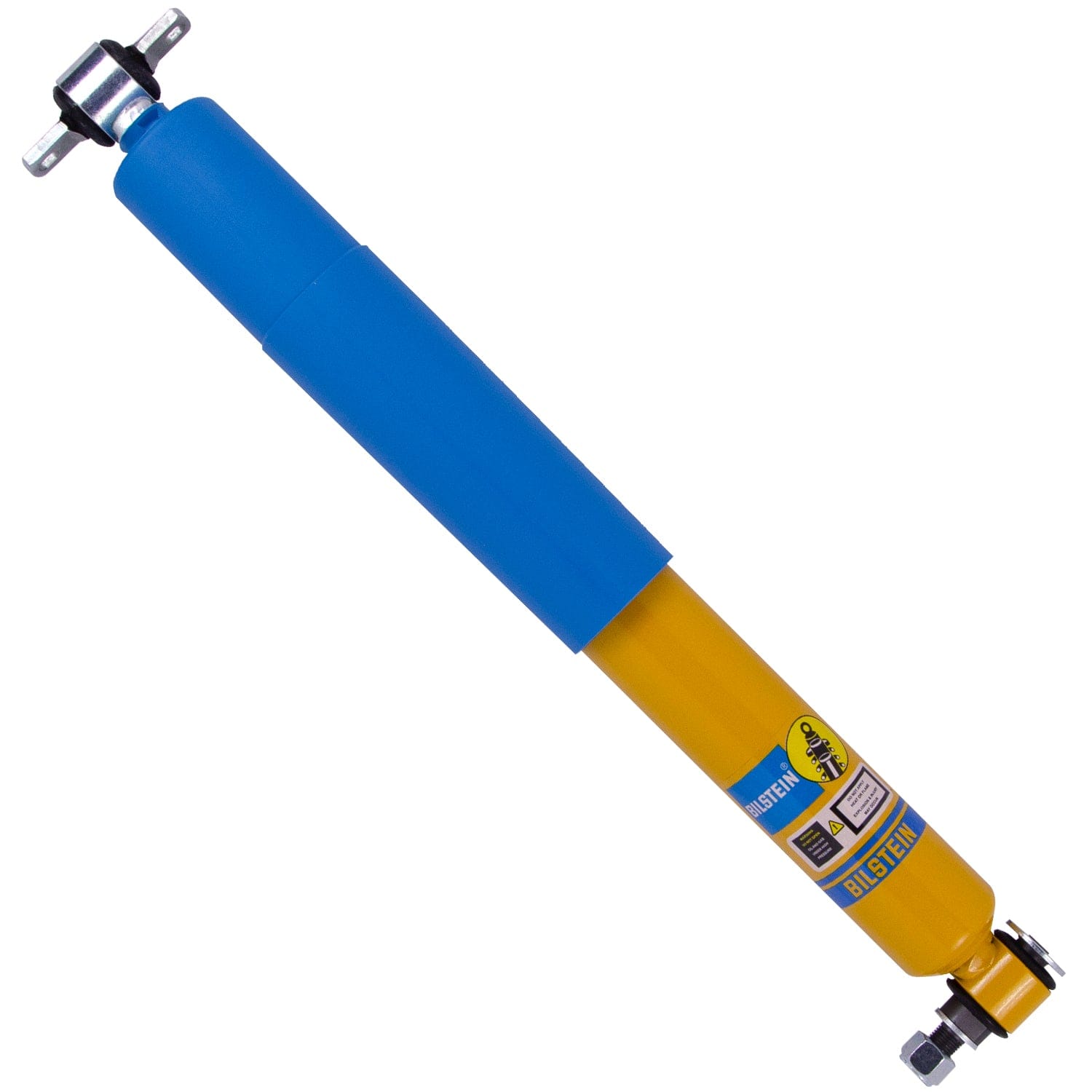

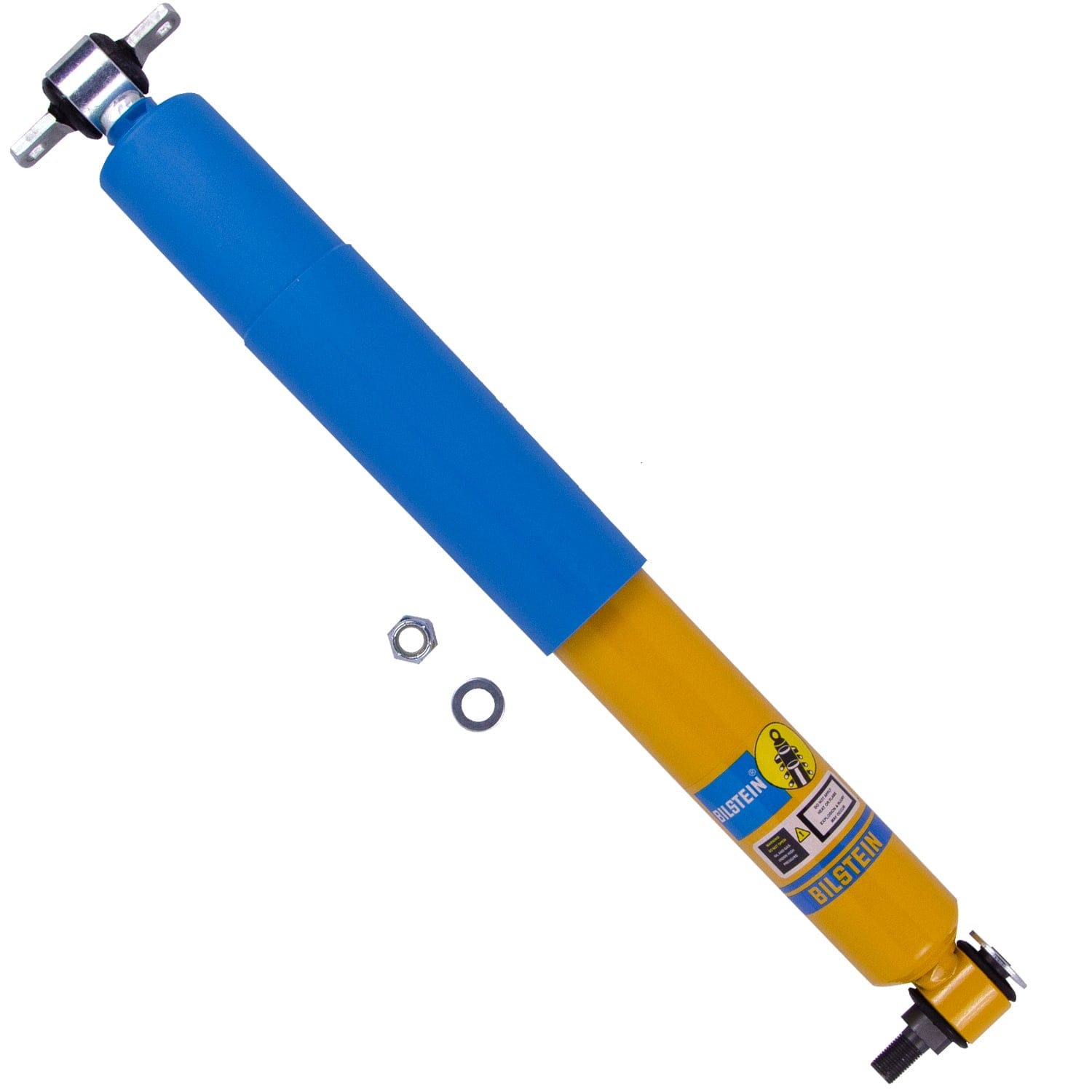

Bilstein shocks for the 1978-1986 GMC Caballero, engineered and built in Germany to the standard that made the name.
Bilstein has built suspension in Germany since 1954, and supplies the same engineering to manufacturers as original equipment. The build quality is the reason these outlast what they replace, and they are covered by a limited lifetime warranty.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Specifications
| Part Number | 24-291699 |
| Part Name | Shock Absorber |
| Vehicle | 1978-1986 GMC Caballero |
| Drivetrain | RWD |
| UPC | 651860839318 |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | Blue Straight |
| Collapsed Length | 13.11 in. (333.0 mm) |
| Compression @ 0.26m/s | 630 |
| Damping Adjustable | No |
| Extended Length | 20.28 in. (515.0 mm) |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Cantilever |
| Piston Type | Linear |
| Rebound @ 0.26m/s | 1130 |
| Segment | Motorsports |
| Series | AK Series |
| Spring Seat Included | No |
| Upper Mount Type | Bar Pin |
| Valving Identifier | 254/141 |
| Quantity | Sold Individually |
| Notes | Without Self-Leveling Suspension |
Vehicle Fitment
- 1978 GMC Caballero
- 1979 GMC Caballero
- 1980 GMC Caballero
- 1981 GMC Caballero
- 1982 GMC Caballero
- 1983 GMC Caballero
- 1984 GMC Caballero
- 1985 GMC Caballero
- 1986 GMC Caballero
